CXP-12 Interface Cards – Many Possibilities for Your Applications

With the high-speed CoaXPress 2.0 interface, you can benefit from the maximum performance of modern image sensors and achieve the best results in your applications. The single and multi-channel boards are a perfect fit for our boost cameras, reducing integration effort and costs.

They are ideal for multi-camera systems with high bandwidth, low latency and long cables, and for industries and applications with different camera requirements, e.g. semiconductor and solar industry, display inspection (FPD), print inspection, food inspection and medical technology.

The benefits of the boards combined with the boost cameras and evaluation kits:

  • Interface cards with 1, 2 or 4 channels
  • Basler CXP-12 camera and interface card, accessories and software from a single source – for optimal system design
  • Easy installation (plug-and-play) of camera and board through GenTL and the pylon Camera Software Suite (SDK)
  • High scaling effects, enabling exploitation of the maximum performance of the latest CMOS sensors
  • Precise camera synchronization at lowest latencies

  • Reduced system complexity
  • Latest FPGA technology paired with powerful CoaXPress 2.0 interface
  • Very low CPU load for data transfer and storage
  • Interface cards also included in CXP-12 evaluation kit, for optimal evaluation / design-in phase
  • Attractive price packages for camera and board

Choose an interface card matched directly to your camera, as well as further components like lenses and cables - you get everything from one source! We simplify the selection of suitable components and thus reduce your testing effort and accelerate the integration into your image processing system.

CXP-12 Interface Cards – Maximum efficiency in combination with the boost camera

Slim overall system. Attractive complete solution for easy setup.

More about the CXP-12 interface cards

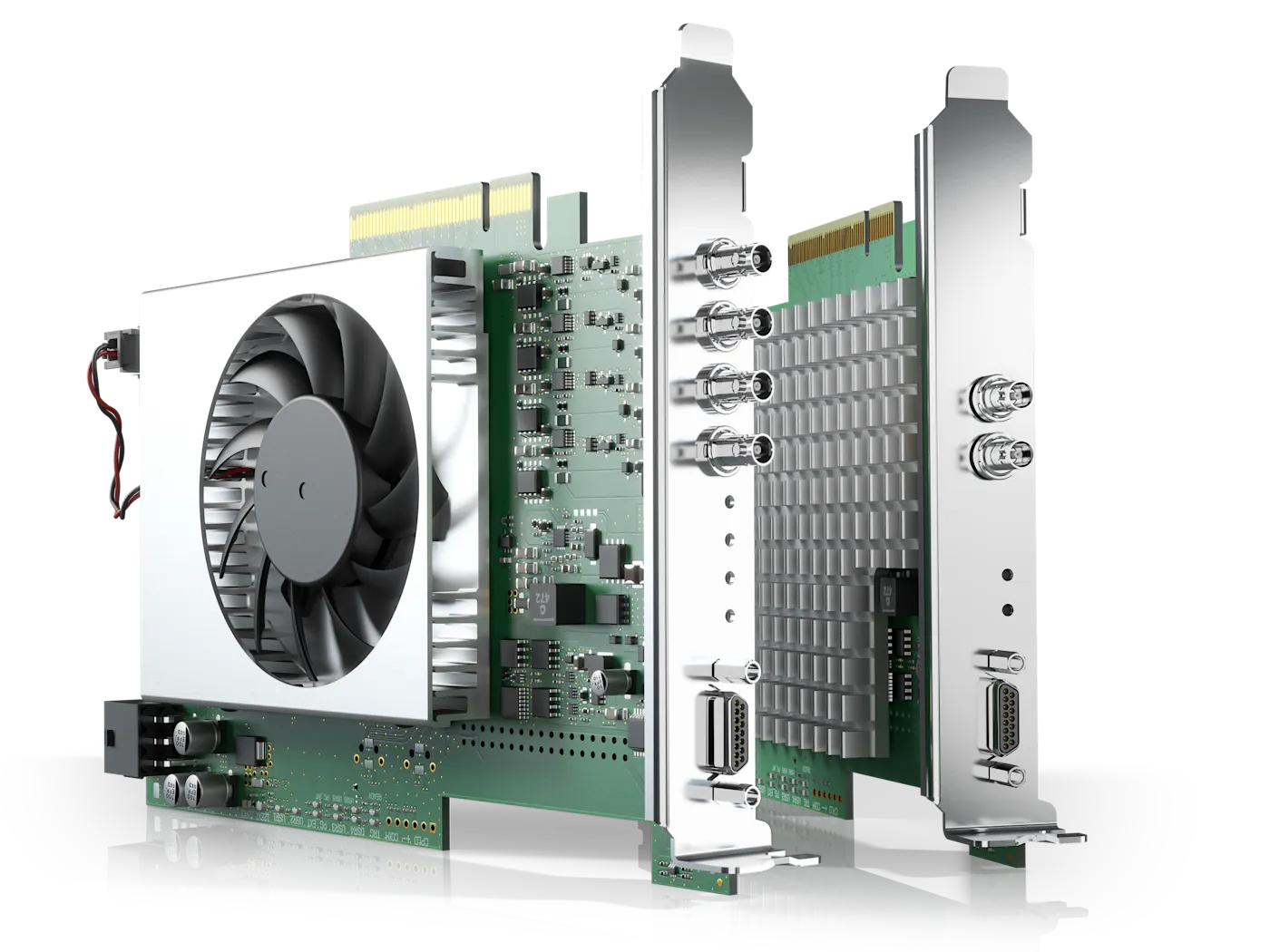

CXP-12 interface cards

CXP-12 Interface Cards

  • Pre-configured interface cards
  • pylon Camera Software Suite as a single SDK
  • GenICam (GenTL) support, for easy hardware/software integration
  • Deployment in multi-camera systems
  • Single-cable solutions with Power over CoaXPress (PoCXP)
  • Micro-BNC x2 (HD BNC) connector
  • Cables available in different lengths, including drag chain suitability
  • PCI Express x4/x8 (Gen3) technology
  • Optimal temperature management
Interface Acquisition Type Camera series No. of Ports Data Bandwidth (p.port; Total) Model Name Interface Acquisition Type Compatible Cameras Data Bandwidth (p.port; Total) No. of Ports Availability i
Frame grabber 1 12,5 Gbps; 12,5 Gbps Basler CXP-12 Interface Card 1C CXP-12 Frame grabber
  • CoaXPress Evaluation Kit
  • Basler boost
12,5 Gbps; 12,5 Gbps 1
Frame grabber 2 12,5 Gbps; 25 Gbps Basler CXP-12 Interface Card 2C CXP-12 Frame grabber
  • CoaXPress Evaluation Kit
  • Basler boost
12,5 Gbps; 25 Gbps 2
Frame grabber 4 12,5 Gbps; 50 Gbps Basler CXP-12 Interface Card 4C CXP-12 Frame grabber
  • CoaXPress Evaluation Kit
  • Basler boost
12,5 Gbps; 50 Gbps 4
