Basler racer 2
Fast line scan cameras with up to 16k resolution
Various resolutions
Available in 8k and 16k resolutionsLine rates up to 200 kHz
For applications that require high performanceLatest CMOS sensors
Producing the best images thanks to the latest line scan camera sensors from GpixelCXP-12 interface
High bandwidths of up to 25 Gbps thanks to the CXP-12 interface
Why racer 2 L?
racer 2 L line scan cameras with high resolutions and the powerful CXP-12 interface are the ideal choice for implementing your high-end line scan application, including inspection in battery production. By combining these cameras with our many other compatible components, we can provide you with a complete vision system tailored to your application.
Your advantages with CoaXPress 2.0
High bandwidths of up to 25 Gbps (2 x CXP-12) allow you to fully utilize your sensor performance
Image pre-processing on the CXP-12 frame grabber allows you to lower your CPU load and free up more resources for your application
Long cables up to 40 m with Micro-BNC (HD-BNC) connections provide more freedom during setup
Power over CXP (PoCXP) let you use fewer cables
Learn more about the CXP-12 interface in our Interface Guide.
Cooling solutions
Optimally cooled cameras reduce image noise to a minimum and ensure the best image quality. In many applications, a certain camera temperature must not be exceeded. It may therefore be necessary to use a cooling system.
With the racer 2 L, various cooling solutions can be attached to the back of the camera, including:
Passive cooling fins: for applications with lower ambient temperatures
Active compressed air cooler: for applications where constant temperatures are required (e.g. battery inspection). The heat from the camera is actively dissipated from the overall system and the temperature does not increase.
Complete line scan vision system with racer 2 L
Our programmable frame grabbers can be used for image pre-processing. The FPGA programming required for this can be implemented quickly and cost-effectively using our graphical development environment VisualApplets .
Our pylon vTools help you analyze the supplied image data and achieve your desired results.

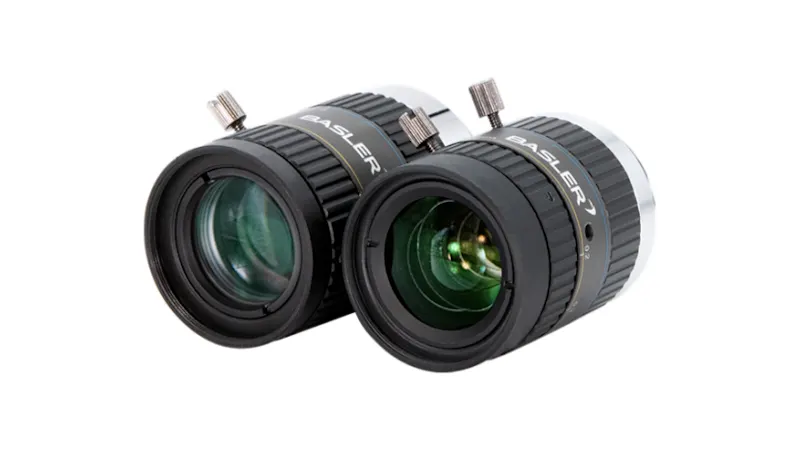

In addition to the line scan cameras, you also have access to special line scan lighting, lenses, cables, and all other necessary components for a CXP-12 line scan image processing system from a single source. All components are fully compatible with one another, extensively tested, and thus enable a fast and cost-effective design-in.
Battery inspection with line scan cameras
Line scan cameras that offer high line rates and high resolutions are required for battery foil inspection. Excellent repeatability, system stability, and system availability are also crucial for economically ensuring quality in battery production.
For a vision solution in battery inspection, racer 2 L line scan cameras with the powerful CXP-12 interface and high-quality sensors ensure reliable, first-class image quality.
More products for your complete UV system
More information about racer 2
Learn more about our products and applications. Our comprehensive materials provide you with all the important details.
