Basler's Unique Feature Set: PGI - for Optimized Images

Several of our newest camera models come with our powerful in-camera image optimization technology already built in: This proprietary PGI feature set enhances your images at the full speed of your camera. PGI is comprised of a unique combination of 5x5 debayering, color-anti-aliasing, denoising and improved sharpness.

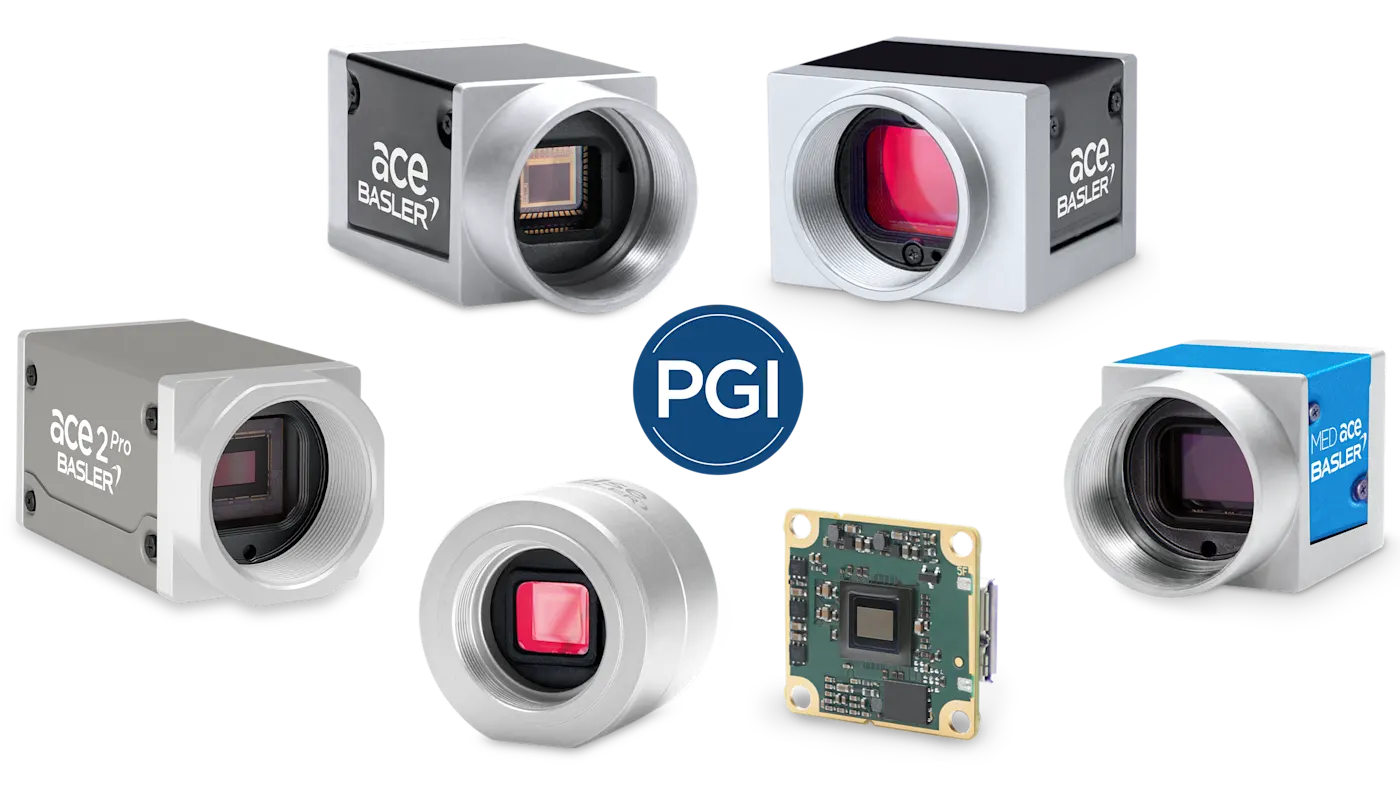

With PGI, your camera will produce better images than ever, without putting additional load on your processor. The PGI feature set is included in all color and mono cameras of the dart USB and pulse series, as well as in color and mono cameras of the MED ace, ace U, ace L and ace 2 Pro product lines.

Harness the full power of pylon and activate the PGI features or change the settings for individual PGI components until you've achieved the optimal results.

5x5 Debayering

Provides true color images without artifacts.

5x5 Debayering in detail >

Color-Anti-Aliasing

Reduces the appearance of false colors at edges in the image.

Color-Anti-Aliasing in detail >

Denoising

Improves the imaging of the finest structures.

Denoising in detail >

Improved Sharpness

Reduces the appearance of noise - inhomogeneities - in the image.

Improved Sharpness in detail >

Learn more

Contact us and learn more Download White Paper

PGI Feature Set in Detail

5x5 Debayering

The term debayering generally describes an algorithm that calculates the color image from the image sensor data. However, as the image sensor does not provide color values for each color in each individual pixel, the algorithm must interpolate to determine that information. Cameras typically offer 2x2 debayering, whereby the two closest pixels are used to calculate the actual color of the image. This can lead in some cases to uneven edges between colors and other artifacts. The 5x5 debayering used in the PGI feature set delivers cleaner transitions between colors and eliminates artifacts altogether.

At the same time, the optimized debayering also assists with noise suppression.

Color-Anti-Aliasing

The use of debayering algorithms frequently leads to false colors in captured images. This means that colors suddenly become visible even in structures that are actually colorless. The reason for this is the resolution limits of the cameras. The resolution limits are responsible for the fact that color cameras with Bayer patterns only expose certain colors and thus generate incorrect interpolation values. PGI uses an extended information space during debayering and corrects the false colors at the same time.

Denoising

Noise is a phenomenon that occurs in every camera and can have several causes (photon shot noise, sensor noise). In color cameras, in addition to gray noise, there is also color noise, which results from and is amplified by the stringing together of several calculation steps and interpolations. PGI takes this type of noise into account and avoids it in advance by cleverly linking and parallelizing the computational operations. In addition, active noise filtering can further reduce the noise level, providing additional image enhancement.

Improved Sharpness

Cameras often struggle to depict particularly fine or sharp structures. The results are aliasing effects or reduced image sharpness. This can be traced back to the interpolation algorithms, known as debayering for cameras with Bayer pattern. Because its interpolation algorithm is adapted for the image structure, the PGI feature set delivers significantly improved sharpness, with the option to pursue further improvement via a supplemental sharpness factor. These enhancements are particularly helpful for applications requiring strong sharpness, such as applications using cameras to detect and process letters and numbers (such as ANPR for traffic applications) or other fine or sharp-edged structures (such as barcodes).

Cameras with PGI

ace 2 Pro

ace 2 Pro

Unique in-camera features: Compression Beyond, Pixel Beyond and PGI feature set for maximum performance

USB 3.0, GigE

More about the ace 2 Pro >
ace U und L

ace U und L

Advanced feature set, latest CMOS sensors from Sony (Pregius, STARVIS) and onsemi (PYTHON)

USB 3.0, GigE

More about the ace U und L >
MED ace

MED ace

State-of-the-art CMOS technology, including MED Feature Sets, ISO 13485:2016

USB 3.0, GigE

More about the MED ace >
dart USB 3.0

dart USB 3.0

Highly flexible and compact board level design

More about the dart USB 3.0 >
pulse

pulse

A compact and low-weight camera, with elegant design

More about the pulse >
