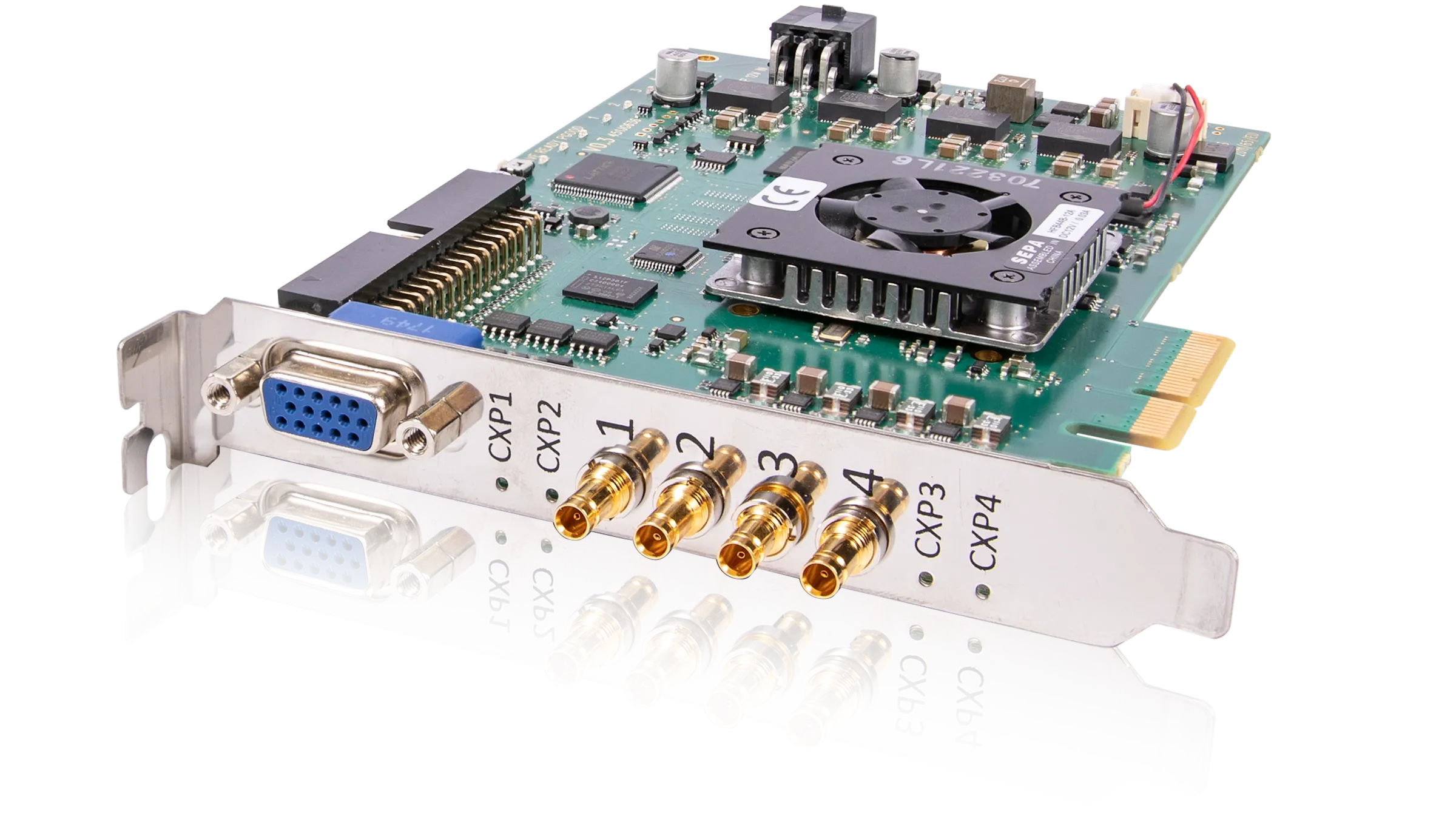

microEnable 5 ironman VQ8-CXP6D - Frame grabber

microEnable 5 ironman VQ8-CXP6D is a PCIe image processing device that allows a full bandwidth connection of up to four CoaxPress standardized cameras.

microEnable 5 ironman VQ8-CXP6D focuses on high-speed image processing with up to 4 x CoaXPress cameras and offers with DMA3600 technology an ultimate access to advanced Machine Vision applications.

  • Support of fastest CoaXPress cameras
  • Easy-to-use configuration software
  • Highest performance image processing
  • Industrial multi-device, multi-camera support
  • DMA3600 / up to 3,6 GB/s PCIe Data bandwidth (PCIe x8 Gen2)
  • Hot pluggable
  • Broad support of Third-party software interfaces
  • Versatile application and industry usage
  • Custom FPGA programming with VisualApplets supporting Xilinx Virtex FPGAs
  • Power over CoaXPress.

Buy now
Request individual quote
Frame grabber - microEnable 5 ironman VQ8-CXP6D
  • Frame grabber - microEnable 5 ironman VQ8-CXP6D

General Information
Order Number 2200000351
Net list price For larger quantities and individual prices, please use the request cart. Net list price
For pricing, please use the request cart to get a quote. 4089.00 EUR 4909.00 USD 4089.00 EUR 34401.00 ¥
Est. Lead Time Estimated lead times may vary. Please ask for the current availability and use the request cart. Delivery time
 Extended lead time up to 6 months
Destination
Acquisition Type Frame grabber
Manufacturer Basler
Model Name microEnable 5 ironman VQ8-CXP6D
Product Series ironman Frame Grabber
Product Line Processing

Device Features
Processor Xilinx Virtex6 XC6VLX240T FPGA
On-Board Memory 1 GByte DDR3-RAM
I/O Module Interfaces (Trigger and Sync) Trigger/GPIO-IF (Opto Trigger, TTL Trigger)
Power via Interface (p. port) PoCXP (13W/24V per cable, Safe Power)

Camera Interface
Standard CoaXPress 1.0/1.1
Interface
  • CXP-6
Configurations CXP1-6; up to 4 cameras
Connectors 4 x DIN 1.0/2.3
Power output Power over CXP, 13W/24V per cable, SafePower
Camera Support line scan camera, area scan camera
Sensor Type CFA sensor (Bayer), Grayscale sensor, RGB sensor
Bit Depth 8-16-bit (grayscale), 24-48-bit (color)
Data Bandwidth 4 x 6.25 Gbit/s
Data Bandwidth (p.port; Total) 6,25 Gbps; 25 Gbps
No. of Ports 4
Test Environment Camera Simulator

Host PC Interface
PC Bus Interface PCIe 2.1 x8, DMA3600
PC Bus Interface Performance up to 3.600 MB/s (sustainable)

Controls and General-Purpose I/Os
Trigger Board GPIO Interfaces Box connector (34-pin)
On-board GPIO interface One 34-pin flat cable connector onboard: 8 input signals and 8 output signals with open-drain optionally as 4 opto-coupled inputs (4,5V - 28V), optional 2 opto-coupled differential inputs (RS422); 4 opto-coupled outputs (4,5V - 28V)
GPIO Synchronisation and Control Configurable Trigger System supporting several trigger modes (grabber controlled, external trigger, gated, software trigger) and shaft encoder functionality with backward compensation, Multi-Camera-Synchronization
GPIO Interface Summary 8in/8out (max.), TTL or opto-coupled

Processing Features
Basic Features Offset/Gain/Gamma correction, Invert, ROI, Image Selector, LUT

Physical and Environmental Information
Dimensions PCIe Standard height, half length card: 167.64 mm length x 111.15 mm height
Weight (typical) 210 g
Power Consumption / Power Source 13 V, 2.5 A
Operating Temperature 0 - 50°C (32°F - 122°F)
Storage Temperature -50 - 80°C (-58°F - 176°F)
Relative Humidity (operating, storage) 5-90%, relative, non-condensing
MTBF on request
Compliances WEEE, RoHS, REACH, CE class B

Software
Software Drivers Windows 10 / 8 / 7 (32-Bit), Windows 10 / 8 / 7 (64-Bit), Linux 32-Bit, Linux 64-Bit
Software Tools microDisplay (Acquisition control and viewer), GenICam Explorer (Camera configuration tool), microDiagnostics (Analysis and service tool), Device Drivers, SDK, Documentation
Software API .net interface, Framegrabber SDK
FPGA Programming VisualApplets
MV Software Compatibility Halcon, VisionPro, Labview
Accessories and Bundles

Trigger Boards

  • Opto trigger: opto-coupled signals
  • TTL trigger: standard TTL level
  • Multiple input and output signals (max. 8x in, 8x out)
  • Synchronization of the image acquisition process
  • Synchronization of multiple cameras in the image acquisition system
  • Control of the camera’s exposure time
  • Independent control of multiple cameras connected to a frame grabber
  • Highly flexible graphic programming of user-defined trigger functions with VisualApplets

Klicken Sie hier für mehr Informationen
