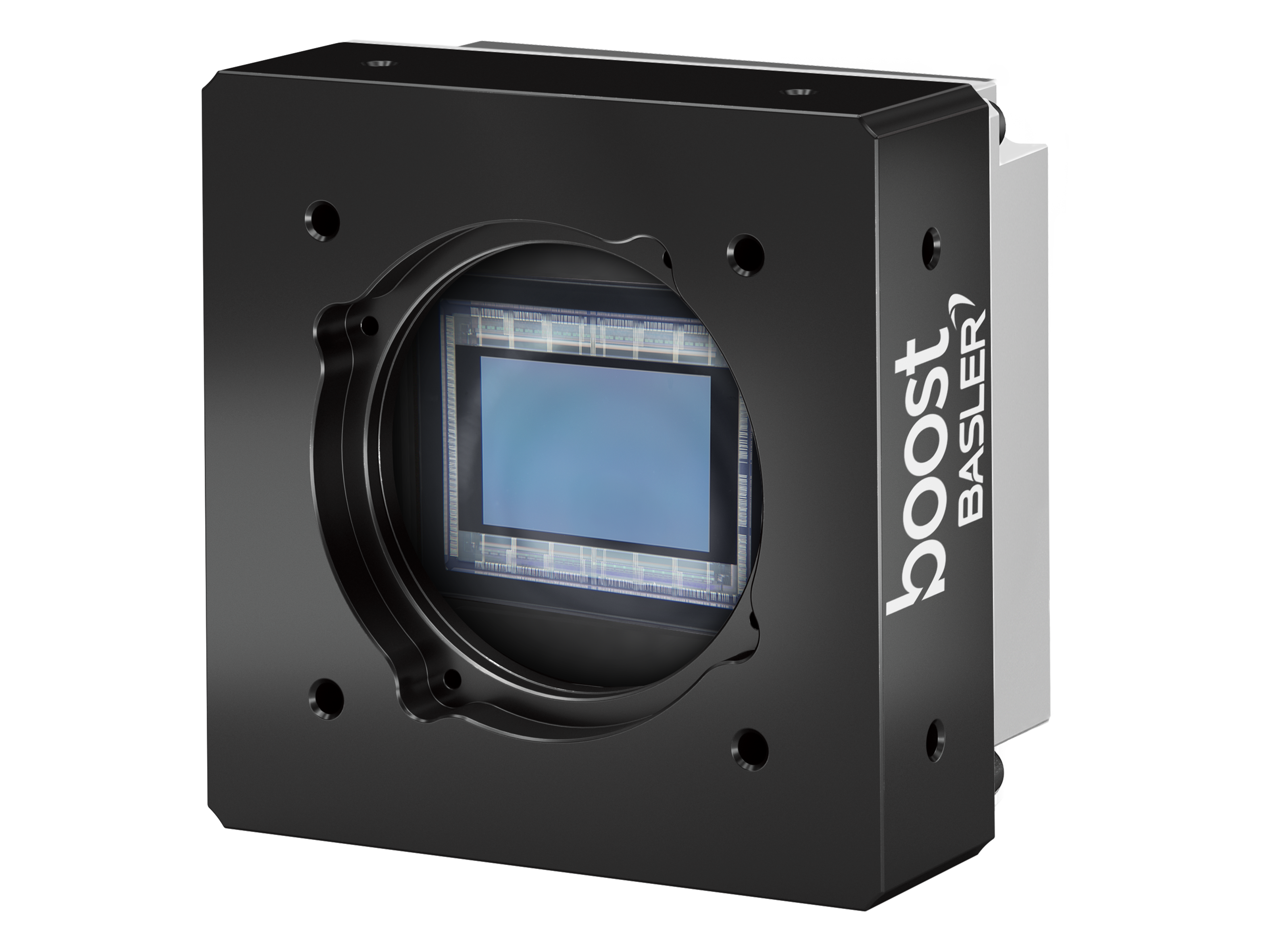

Basler boost R boA6500-36cm

Name: boA6500-36cm
SKU: 108391
Price: 3799 EUR
Availability: InStock

The Basler boA6500-36cm CoaXPress camera with the onsemi XGS 32000 CMOS sensor delivers 36 frames per second at 32 MP resolution.

The boost series is available with different lens mounts (F-mount and M42-mount). These must be purchased separately for the camera.

Quantity

Suitable Products

pylon vTools for image processing
Design robust image processing software for quality assurance and tracking. Functions such as blob analysis, matching, and code reader can be combined using drag-and-drop design and flexibly integrated into the target application.
pylon Software for image acquisition
pylon offers certified drivers for many camera interfaces, as well as simple programming interfaces and practical tools for camera setup.

Net list price	€3,799.00
Ready for dispatch	Standardapprox. 3 weeks

Sensor Vendor	onsemi
Sensor	XGS 32000
Shutter	Global Shutter
Sensor Format	APS-C
Sensor Diagonal	26.28 mm
Sensor Type	CMOS
Sensor Size	21 mm × 15.8 mm
Resolution (H x V)	6580 px × 4935 px
Resolution (MP)	32.4 MP
Pixel Size (H x V)	3.2 μm × 3.2 μm
Frame rate	35 fpsCalculate individual frame rate
Mono/Color	Mono
Spectrum	Visible

Quantum Efficiency (typical/minimal)	56.5 % (typical)
Dark Noise (typical/maximal)	4.3 e¯ (typical)
Saturation Capacity (typical/minimal)	9.2 ke¯ (typical)
Dynamic Range (typical/minimal)	65.5 dB (typical)
Signal-to-Noise Ratio (typical/minimal)	39.7 dB (typical)

Interface	CoaXPress (CXP-12)
Image Data Interface	CoaXPress (2.5–12.5 Gbps)
Pixel Bit Depth	10 bits 12 bits
Synchronization	free-run hardware trigger software trigger
Exposure Control	hardware trigger programmable via the camera API
Digital Input	1
General Purpose I/O	2
Power Supply	PoCXP or 24 VDC
Power Requirements (typical)	9.8 W

Acquisition Frame Rate
Acquisition Mode
Acquisition Start, Stop, and Abort
Acquisition Status
Exposure Active Trigger
Exposure End Trigger
Exposure Start Trigger
Frame Active Trigger
Frame Burst Active Trigger
Frame Burst End Trigger
Frame Burst Start Trigger
Frame End Trigger
Frame Start Trigger
High Speed Burst Mode
Sensor Readout Time
Triggered Image Acquisition

Defect Pixel Correction
Device Information Parameters
Device Temperature
Sensor Bit Depth
Temperature State
User Sets (Configuration Sets)
User-Defined Values
Vignetting Correction

Auto Function Profile
Binning
Black Level
Center X and Center Y
Counter
Digital Shift
Exposure Auto
Exposure Mode: Timed
Exposure Mode: Trigger Controlled
Exposure Mode: Trigger Width
Exposure Time
Gain
Gain Auto
Gamma Correction
Image ROI (Region of Interest)
Lookup Table (LUT)
Reverse X (Horizontal Mirroring)
Reverse Y (Vertical Mirroring)
Sequencer (ace 2 and boost R)
Short Exposure Time Mode
Stacked ROI
Test Patterns
Timer
