Hybrid Bonding: The New Precision Bottleneck in Advanced Packaging
Hybrid bonding has evolved from an advanced packaging option into a strategic enabler for next-generation semiconductors. As transistor scaling slows, performance gains now rely on ultra-dense 3D integration. By combining dielectric bonding with direct copper-to-copper interconnects, hybrid bonding eliminates solder bumps, supports sub-10 µm pitches, and delivers higher bandwidth, lower power, and compact designs essential for AI and HBM architectures.
Hybrid bonding: from technology option to industry requirement

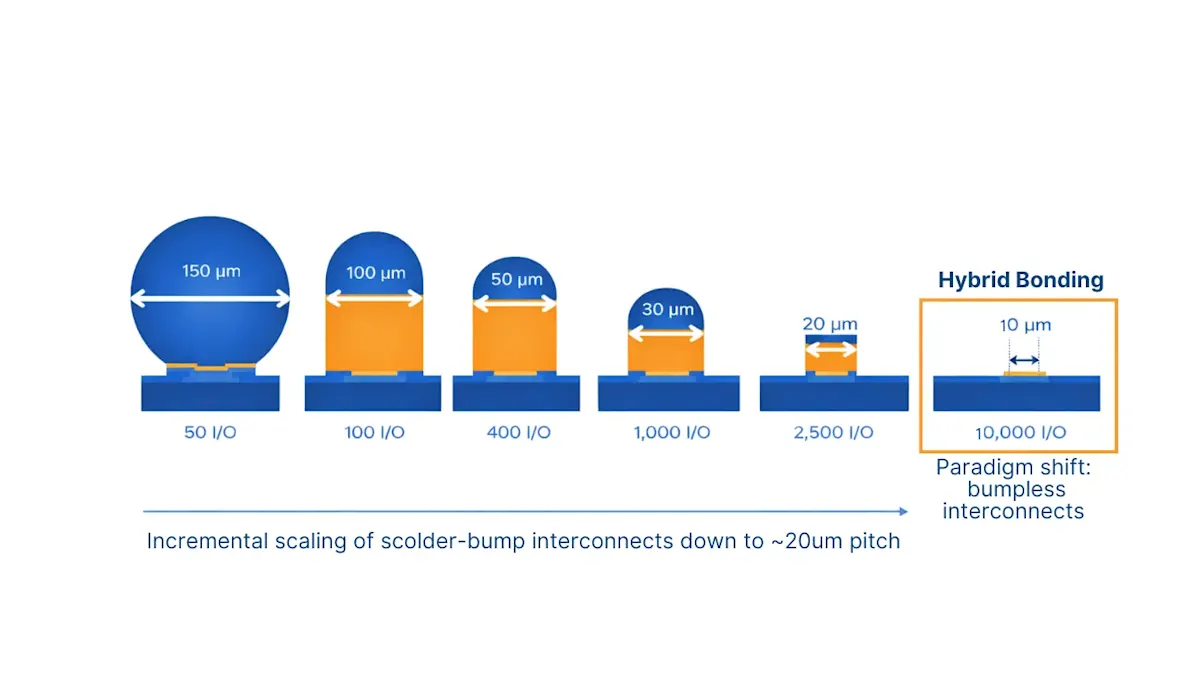

Hybrid bonding combines dielectric-to-dielectric bonding with direct copper-to-copper interconnects, eliminating solder bumps and enabling ultra‑dense vertical connections. Interconnect pitch is already moving below 10 µm, with roadmaps targeting 3 µm to 4 µm and beyond. This density unlocks higher bandwidth, lower power consumption, and smaller form factors—capabilities that AI accelerators and advanced HBM stacks now demand.
The implication is clear: hybrid bonding is no longer optional for leading‑edge systems. It is becoming a baseline requirement across logic stacking, chiplets, and memory integration.
Why hybrid bonding is becoming unavoidable
Three structural forces are driving adoption:
AI-driven demands: Bandwidth-limited, energy-sensitive workloads benefit from massive vertical I/O and reduced energy for each bit.
Limits of micro-bump technology: As HBM stacks exceed 12 layers, traditional interconnects face challenges in pitch, thermal resistance, and reliability.
Advanced logic needs: Direct die-to-die connections are essential to meet latency, power, and form-factor goals beyond conventional 2.5D methods.
Together, these forces make hybrid bonding a cornerstone of future semiconductor roadmaps.
The manufacturing reality: precision is the differentiator
While the benefits are compelling, hybrid bonding dramatically raises manufacturing complexity. Success is determined less by equipment availability and more by precision execution.

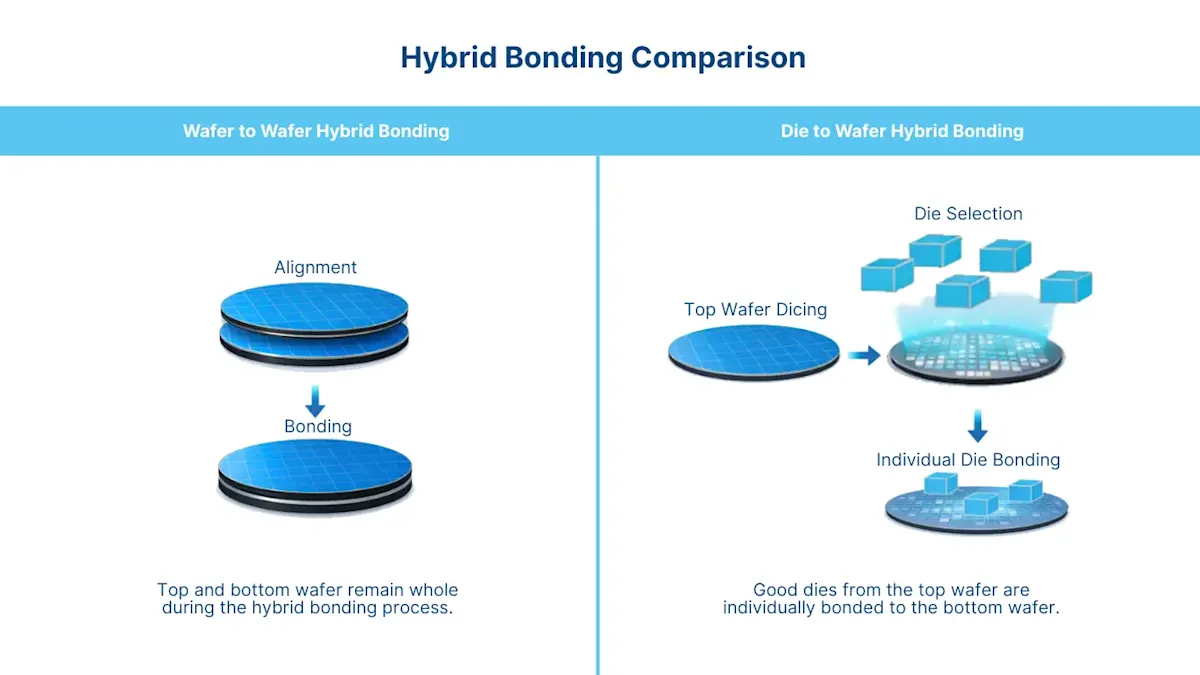

Sub‑50 nm alignment accuracy is rapidly becoming standard, especially for die‑to‑wafer bonding. At this scale, thermal drift, wafer warpage, and optical distortion directly impact yield.
Surface cleanliness and flatness must approach front‑end standards. Nanometer‑scale particles or copper erosion can cause voids and electrical failures.
Defects are amplified in stacked systems. A single bonding error can scrap an entire high‑value multi‑die assembly, making early detection essential.
Hybrid bonding is not a single process step. It is a tightly coupled ecosystem where alignment, inspection, and data feedback define outcomes.
Vision challenges: alignment and inspection precision requirement
As the manufacturing tolerances tighten, vision and inspection move from supporting roles to yield‑critical functions.
Hybrid bonding is poised to become the new back‑end scaling mechanism of the semiconductor industry. As pitches approach the nanometer regime, the distinction between wafer processing and packaging will blur, and system performance will increasingly be defined by alignment accuracy and bonding integrity.
At the same time, optical inspection faces fundamental challenges. Alignment interfaces disappear beneath silicon, alignment marks are buried under dielectric layers, and acceptable tolerances approach the resolution limits of conventional imaging systems. Without sufficient visibility and measurement confidence, process control becomes increasingly fragile.
What manufacturers can do now
Preparing for hybrid bonding should act decisively:
Prioritize high‑value use cases such as AI‑driven HBM stacks, logic‑on‑logic integration, and bandwidth‑critical chiplets.
Co‑design bonding processes, optical access, and alignment marks early, rather than treating inspection as an afterthought.
Move inspection upstream and inline to prevent yield loss before high‑value assembly stages.
Invest early in scalable metrology and data infrastructure. Competitive advantage will come from running hybrid bonding at yield, not merely adopting it.
A vision-driven approach to hybrid bonding
Basler approaches hybrid bonding with a simple principle: what cannot be seen cannot be controlled. As interfaces disappear beneath silicon, traditional optical inspection reaches its limits.
Focusing on three strategic capabilities:
High‑accuracy alignment and overlay metrology that scales from hundreds of nanometers to tens of nanometers, leveraging advanced optical architectures and computational correction.
Through‑stack visibility using NIR and SWIR techniques, including fluorescent alignment concepts, enabling accurate inspection of buried marks without destructive analysis.
Inline, scalable inspection systems that support full‑wafer mapping, die‑level defect localization, and rapid process learning at production throughput.
In this context, cameras evolve into metrology platforms—integrating optics, computation, and process intelligence.
Basler is actively working on the next‑generation optical and metrology platforms designed specifically for hybrid bonding environments—combining ultra‑high‑accuracy alignment, through‑silicon visibility, and inline inspection intelligence.
Engineering toward 100 nm-level alignment
Basler is actively advancing hybrid bonding alignment technologies, evaluating optical boundaries and system-level constraints under realistic process conditions. Our work includes buried mark visibility studies, simulation-based detectability analysis, and architecture concepts designed to support stable, repeatable nanometer-scale alignment.
If you are working on a hybrid bonding project or evaluating future alignment requirements, we invite you to engage in an early technical discussion.
We can share selected simulation results, system concepts, and feasibility insights to support your early-stage evaluation.
