Consistent Color Calibration Across High-Magnification Systems
Accurate color reproduction under high magnification
Standard color calibration using fixed color checker patterns is often inadequate for high-magnification imaging. This use case introduces our customized micro color calibration solution that enables stable and repeatable color results across high-magnification systems, without reliance on specific color checker or golden sample definitions.
Where micro color calibration is required

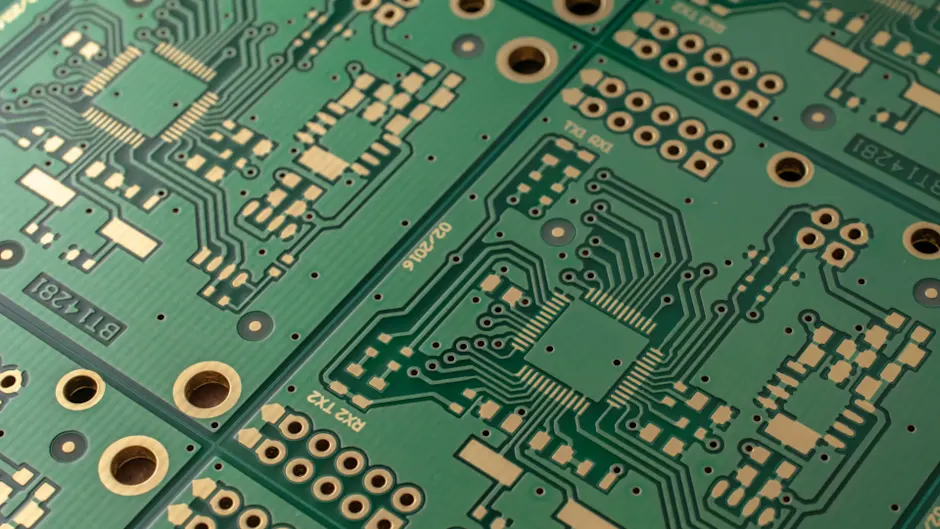

While strict color accuracy and reproducibility are inherent requirements in color-critical industrial applications, high-magnification imaging amplifies optical and system-level variations that challenge color stability. Our customized micro color calibration supports consistent color reproduction when standard calibration methods no longer meet application requirements, benefiting vision demanding applications.
Why standard color calibration breaks down at high magnification
Standard color calibration assumes uniform illumination and simultaneous visibility of all color reference patches within a single field of view. These assumptions often fail in high-magnification inspection scenarios.
At microscopic scales:
The field of view is too limited to capture full color reference charts
Illumination non-uniformity becomes more pronounced
Optical distortions and sensor spectral response variations have greater impact

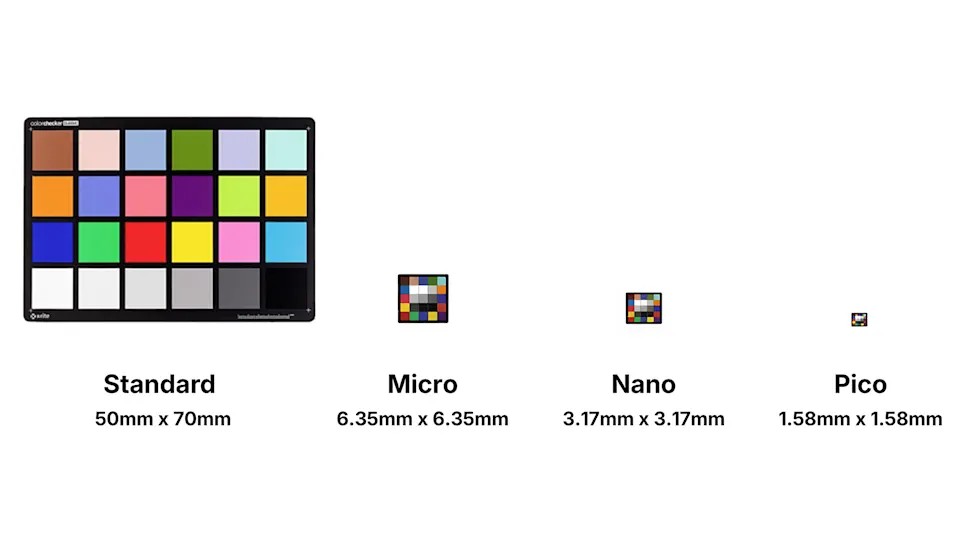

Practical limitations of standard color calibration

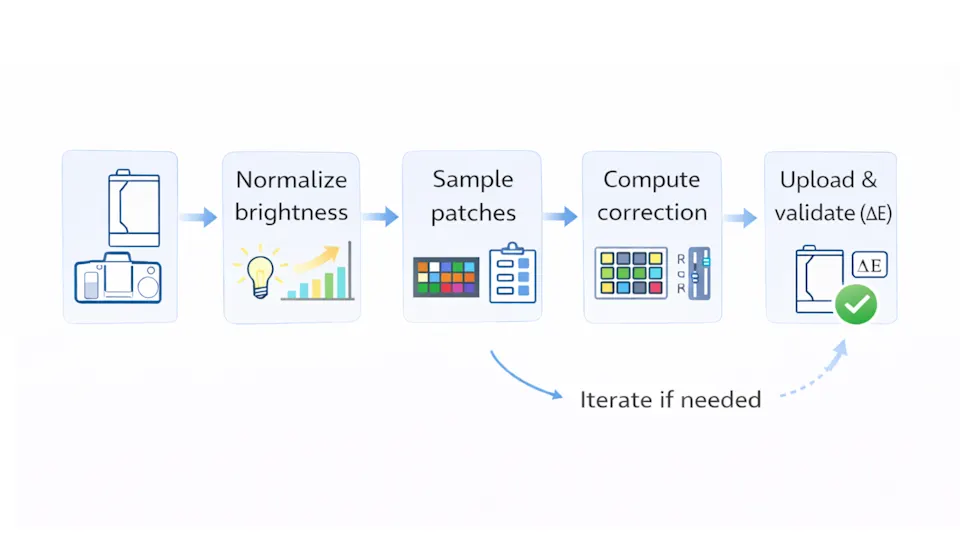

How micro color calibration is performed
Micro color calibration captures individual reference color patches sequentially rather than simultaneously.
When the full chart cannot fit within the field of view:
The camera records each patch through multiple exposures under the same lighting and optical conditions as the target application.
Measured color values are compared against known reference values to calculate correction parameters that compensate for optical distortions, illumination variation, and sensor response characteristics.
The calibration algorithm:
analyzes uniform regions within each reference patch
calculates color error (ΔE) in LAB color space, which quantifies perceptual color differences.
Adjust white balance gains, color transformation matrix coefficients, and gamma correction curves are adjusted to minimize ΔE values across all patches.
The resulting correction parameters are then applied pixel-wise to the entire image, reducing spatial color variation while maintaining processing efficiency through dedicated software implementation.
Download the color calibration result analysisWhat makes our micro color calibration strong is that it’s very complete. Many solutions don’t address all the constraints under high magnification. Instead of capturing all colors at once, we calculate color correction values mathematically and sequentially, patch by patch. This avoids field-of-view limitations at high magnifications, even above 50×, and allows accurate calibration below 1 second. The solution works with different ColorChecker sizes.
Summary: Why Basler’s micro color calibration scales
The table below summarizes the key challenges of high-magnification color calibration and how Basler’s approach addresses them.
Challenge | Basler’s solution approach | Benefit |
Reference chart size vs. field-of-view mismatch | Reference-size–independent, sequential patch calibration | Calibration possible at high magnification without fixed chart size constraints |
|---|---|---|
Spatial color variation | Pixel-wise color correction | Improved color uniformity and reproducibility |
Application-specific color targets | Golden sample alignment | Aligns calibration to real inspection requirements |
Multi-system variability | Cross-system consistency | Comparable results across systems and environments |
Color accuracy validation | ΔE-based validation (LAB) | Objective, perceptually aligned metric |
