Basler dart dmA2840-14gm (Mono)

IMX546 Sensor
14 fps Frame rate
GigE Interface
8 MP Resolution (MP)
2/3" Sensor Format

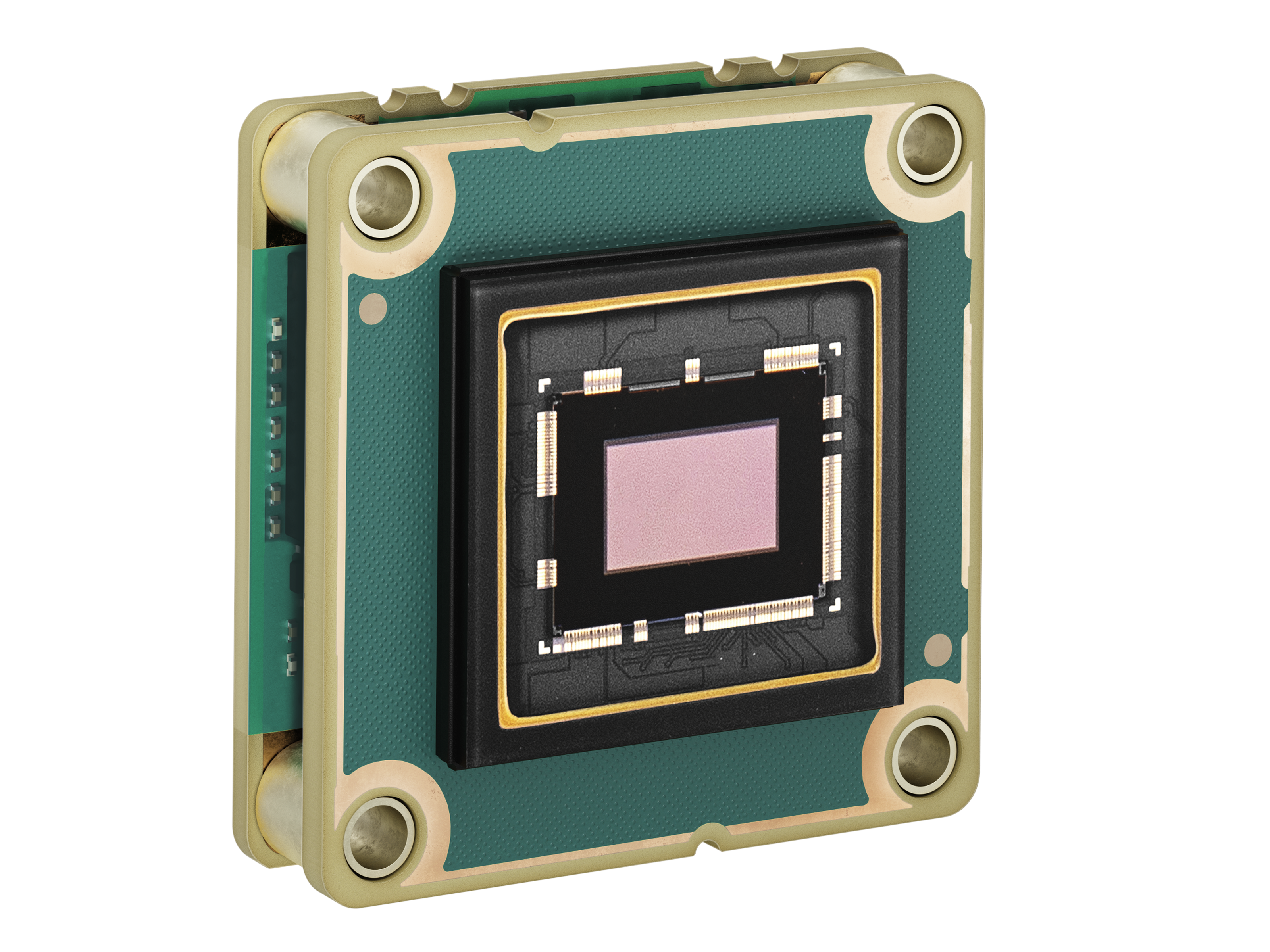

The Basler dmA2840-14gm is a modular board level camera with GigE interface. Equipped with the Sony IMX546 CMOS sensor, the camera delivers 14 images per second at 8.1 MP resolution.

Select your model

Select Mono/Color:

Recommended accessories

Lens Mount

- select -

dart CS-Mount IR-Cut +€12.00

dart CS-Mount +€6.00

dart S-Mount +€6.00

dart C-Mount AL +€35.00

dart C-Mount IR-Cut AL +€41.00

dart S-Mount AL +€35.00

Flat Flex Cable

- select -

Flat Flex Cable dart M 15cm +€6.00

Flat Flex Cable dart M 5cm +€5.50

Flat Flex Cable dart M 30cm +€7.00

Interface Board

- select -

Interface Board dart M GigE RJ45 PoE +€55.00

Interface Board dart M GigE RJ45 AUX +€45.00

I/O Cable

- select -

dart M I/O Cable, IDC/open, 500mm +€2.49

Heat Sink

- select -

Heat sink for dart +€5.00

Show suitable products

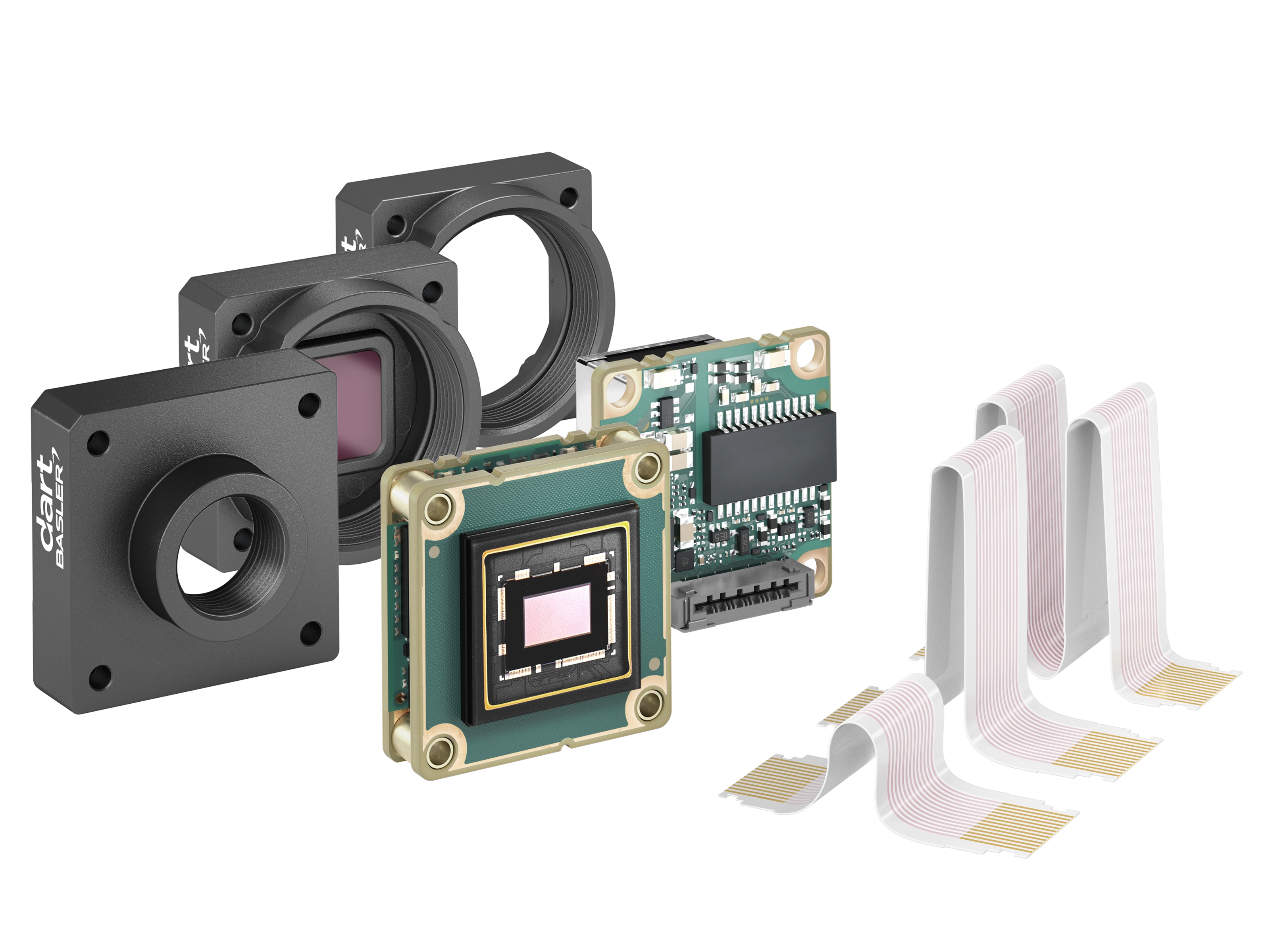

Modular design of the dart M

The dart M camera adapts to the installation environment of the application: beginning with the camera module, the appropriate camera is configured on a modular basis.

Suitable Products

Recommended software

pylon vTools for image processing
Design robust image processing software for quality assurance and tracking. Functions such as blob analysis, matching, and code reader can be combined using drag-and-drop design and flexibly integrated into the target application.
pylon Software for image acquisition
pylon offers certified drivers for many camera interfaces, as well as simple programming interfaces and practical tools for camera setup.

All Basler dart Models

Haven't found the right model? See the product list for an overview of all dart models. Find the right product for your application: filter by sensor, resolution, frame rate, and more.

To the dart product table

Manufacturer	Basler
Order Number	109466
Product Family	dart M
Camera Series	Basler dart
Camera Category	Area Scan Camera
Warranty	36 Months

Sensor Vendor	Sony
Sensor	IMX546
Shutter	Global Shutter
Sensor Format	2/3"
Sensor Diagonal	11 mm
Sensor Type	CMOS
Sensor Size	7.78 mm × 7.78 mm
Resolution (H x V)	2840 px × 2840 px
Resolution	8.3 MP
Pixel Size (H x V)	2.74 μm × 2.74 μm
Frame rate	14 fpsCalculate individual frame rate
Mono/Color	Mono
Spectrum	Visible

Interface	GigE
Image Data Interface	Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s)
Pixel Bit Depth	8 bits 10 bits 12 bits
Exposure Control	hardware trigger programmable via the camera API
Digital Input	1
Digital Output	1
General Purpose I/O	1
Power Supply	5 VDC (camera module only) 12 - 24 VDC (when using Interface Board AUX) PoE (when using Interface Board PoE)

Housing Type	Board Level
Housing Size (L x W x H)	27 mm x 27 mm x 13.9 mm
Weight	14 g
Lens Mount	No-Mount
Operating Temperature	0 °C - 75 °C

Auto Functions	Use the camera's auto functions to allow the camera to find the optimum settings for exposure time, gain, and white balance, for example. This simplifies camera integration into your application.
Presettings	Automate recurring steps in your application by using the camera's default settings and/or creating and saving your own presets.

Basler dart dmA2840-14gm (Mono)

Select Mono/Color:

General Information

Sensor

Camera Data

Housing

Technical Drawing

Manufacturer

Conformity

Features

Easy Handling

Image Quality Optimization

Process Control

Speed Increase

Modular design of the dart M

Suitable Products

Recommended software

pylon vTools for image processing

pylon Software for image acquisition

All Basler dart Models

Product successfully added to cart

Image Adjustment	Adjust pixel values losslessly with Black Level, Digital Shift, and other standard features.
Improvement of Image Quality	Reduce image artifacts caused by environmental influences. Correct individual pixel errors using Defect Pixel Correction.

Burst Mode	Acquire a sequence of images after triggering once and output them as required. In High-Speed Burst Mode, you can temporarily bypass the data limitation of GigE.
Digital I/Os	Control the camera via trigger commands or use the camera to control components of your vision system, such as lighting or encoders.
Information Utilisation	Use additional information from Chunks and Events to optimize your automation.
Intelligent Light Control (SLP)	Control the lighting directly with the camera. By synchronizing the flash mode and adjusting the brightness levels, you can quickly achieve precise lighting conditions and shorten the development time of your application.
Timing	Control the start and end of an exposure individually. Add delays or synchronize multiple cameras in a GigE network using PTP.
