Basler dart M dmA2048-37gm (Mono)

Sensor: IMX900
Frame rate: 37 fps
Resolution (MP): 3.2 MP
Interface: GigE
Sensor Format: 1/3.1''

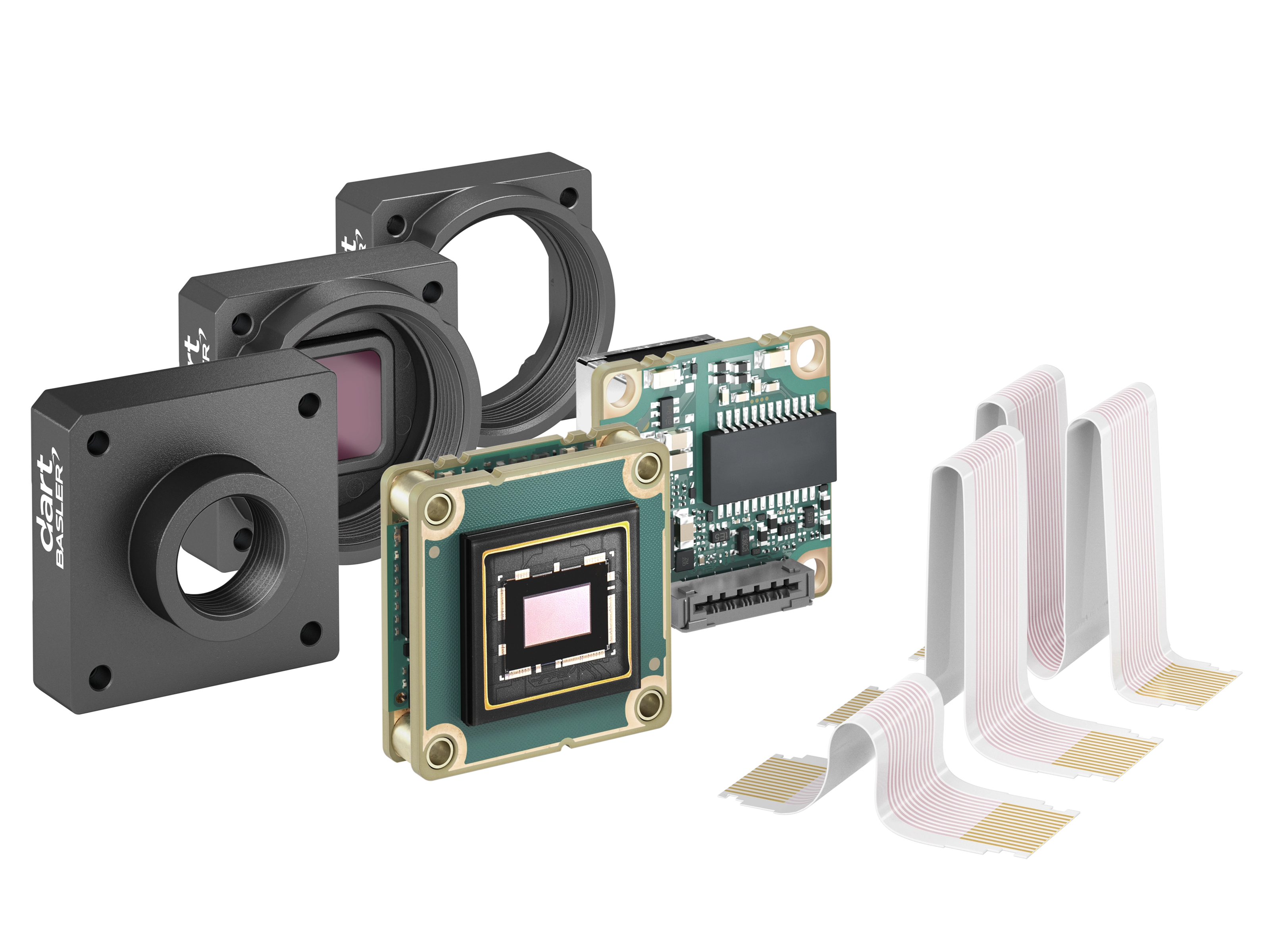

The Basler dmA2048-37gm is a modular board level camera with GigE interface. Equipped with the Sony IMX900 CMOS sensor, the camera delivers 37 images per second at 3.2 MP resolution.

Select your model

Select Mono/Color:

Mono
Color

Show suitable products

Manufacturer	Basler
Order Number	109480
Product Family	dart M
Camera Series	Basler dart
Camera Category	Area Scan Camera
Warranty	36 Months

Sensor Vendor	Sony
Sensor	IMX900
Shutter	Global Shutter
Sensor Format	1/3.1''
Sensor Diagonal	5.81 mm
Sensor Type	CMOS
Sensor Size	4.61 mm × 3.46 mm
Resolution (H x V)	2048 px × 1536 px
Resolution	3.2 MP
Pixel Size (H x V)	2.25 μm × 2.25 μm
Frame rate	37 fps
Mono/Color	Mono
Spectrum	Visible + NIR

Measured at	541 nm
Quantum Efficiency (typical/minimal)	87.2 % (typical)
Dark Noise (typical/maximal)	5.9 e¯ (typical)
Saturation Capacity (typical/minimal)	9.9 ke¯ (typical)
Dynamic Range (typical/minimal)	63.7 dB (typical)
Signal-to-Noise Ratio (typical/minimal)	40 dB (typical)

Interface	GigE
Image Data Interface	Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s)
Pixel Bit Depth	8 bits 10 bits 12 bits
Exposure Control	hardware trigger programmable via the camera API
Digital Input	1
Digital Output	1
General Purpose I/O	1
Power Supply	5 VDC (camera module only) 12 - 24 VDC (when using Interface Board AUX) PoE (when using Interface Board PoE)

Housing Type	Board Level
Housing Size (L x W x H)	27 mm x 27 mm x 13.9 mm
Weight	14 g
Lens Mount	No-Mount
Operating Temperature	0 °C - 75 °C
