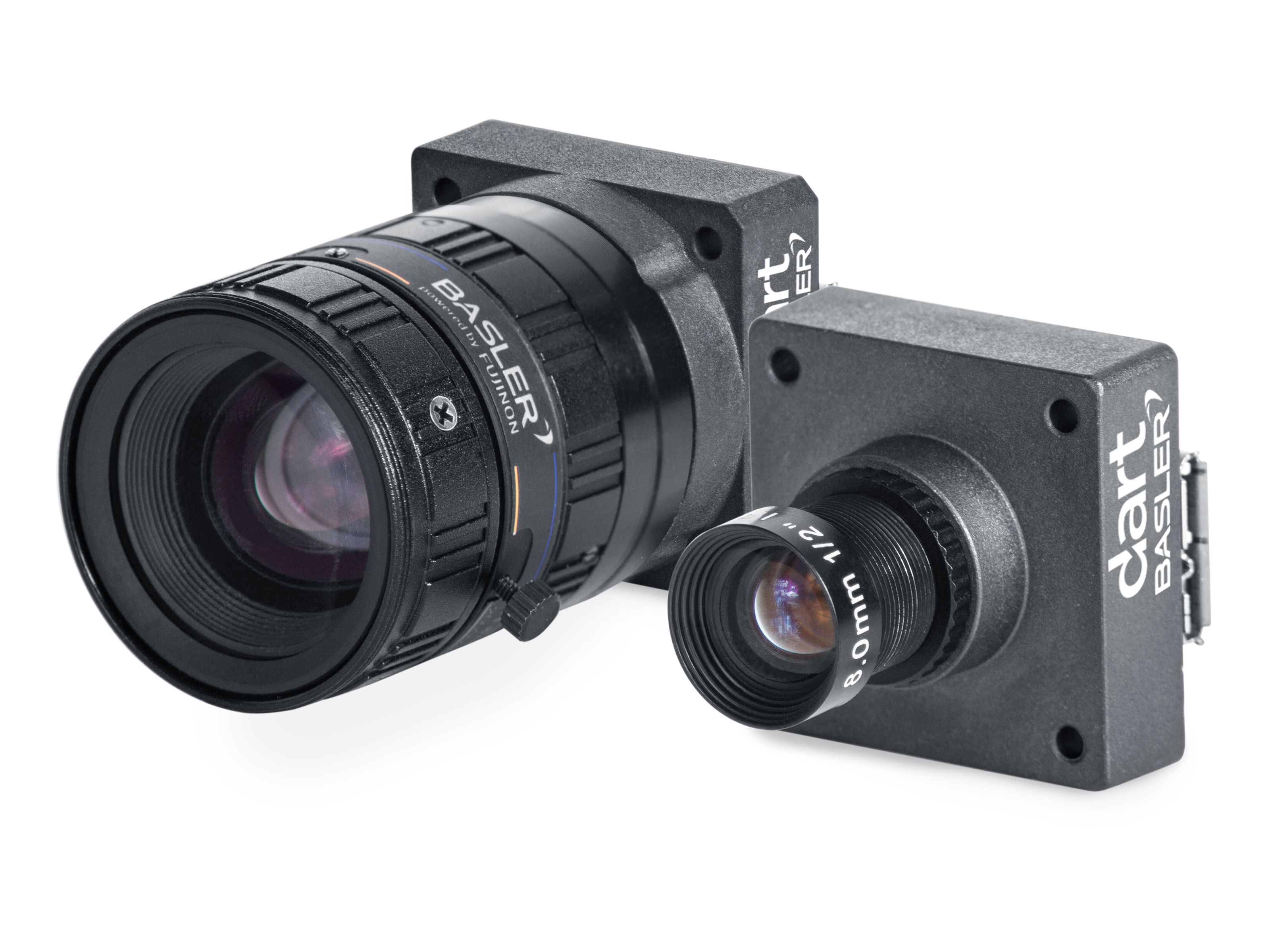

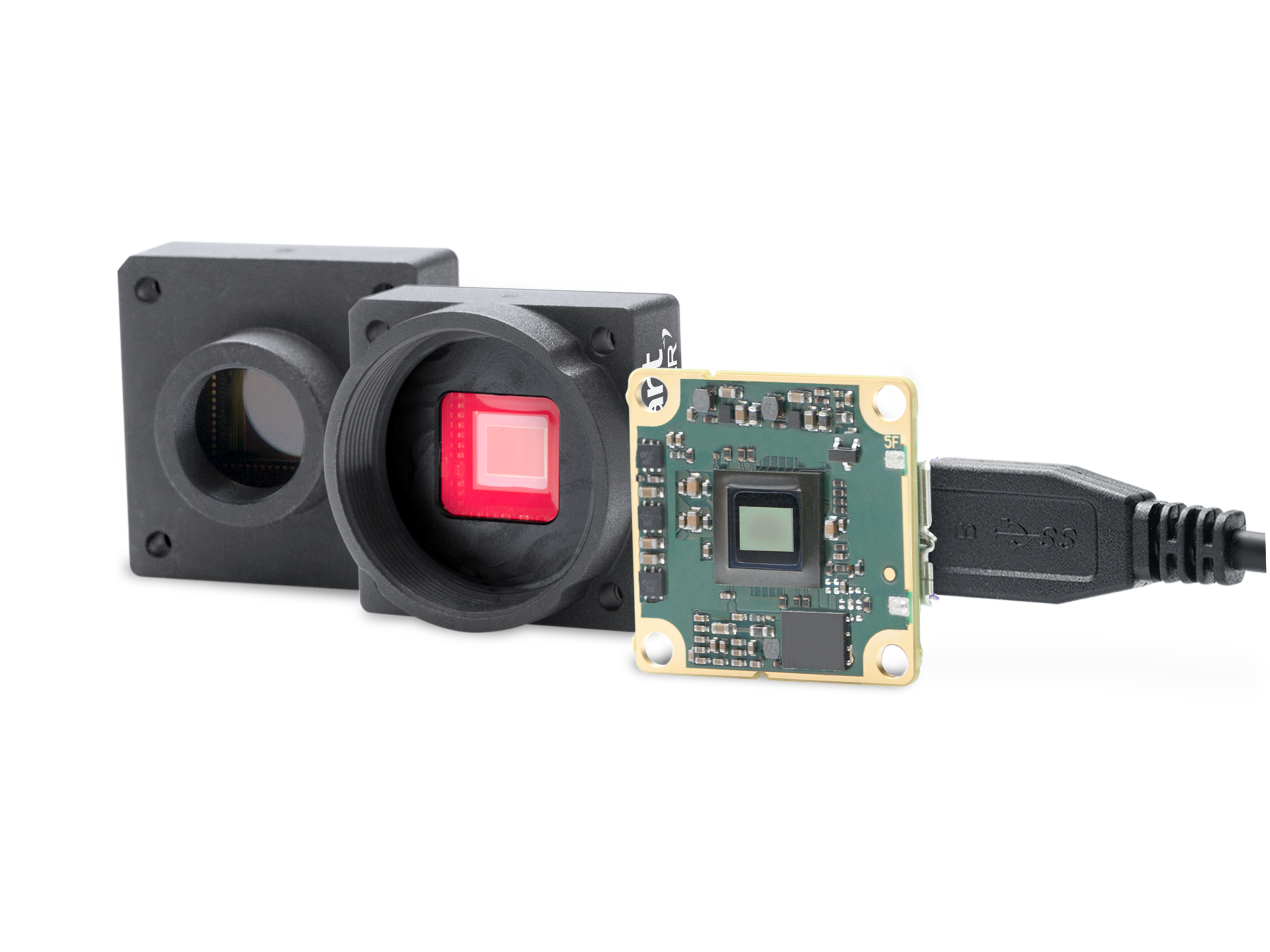

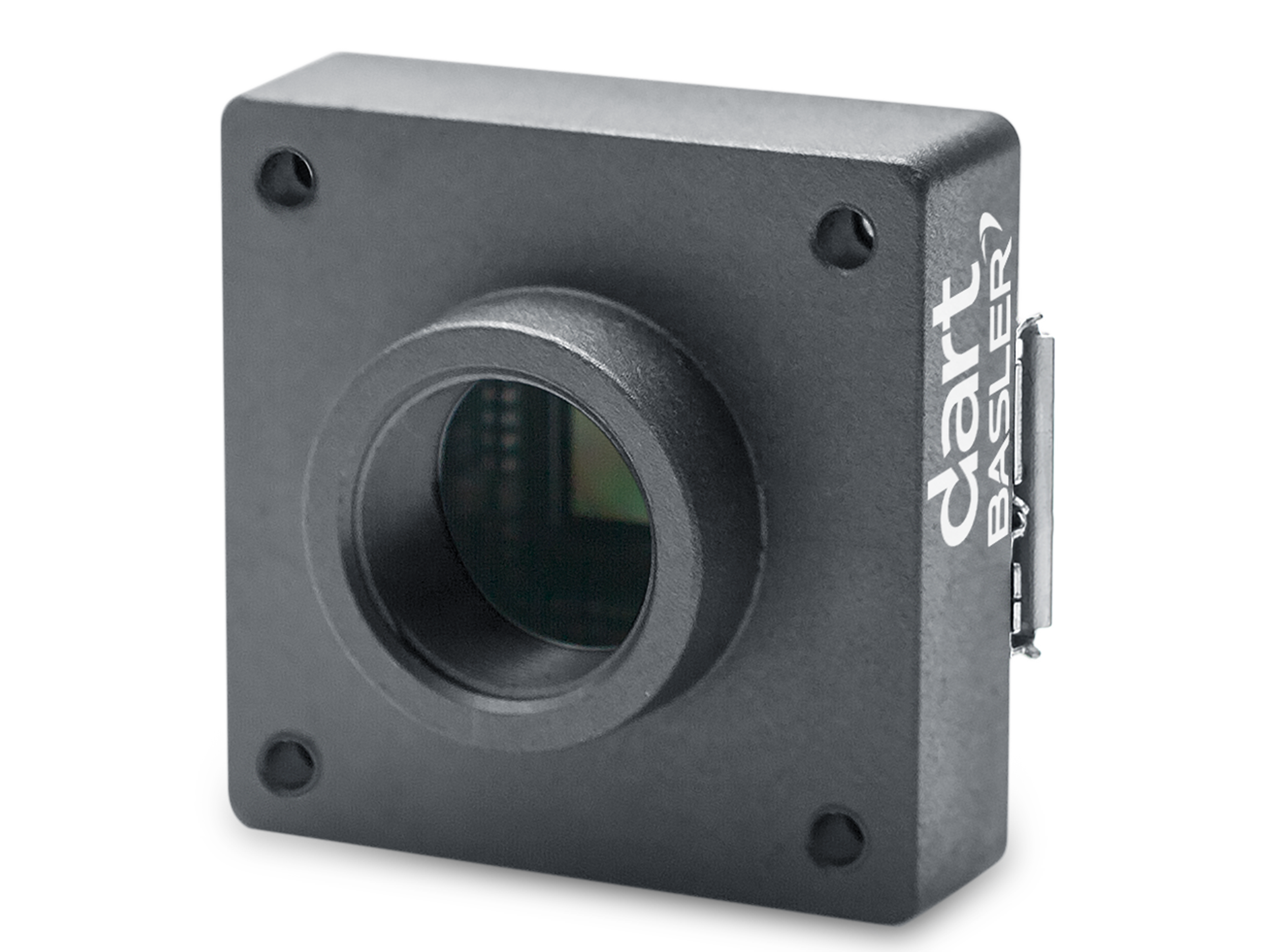

Basler dart daA1920-30uc (S-Mount)
- MT9P031Sensor
- 30 fpsFrame Rate
- 2 MPResolution
The Basler daA1920-30uc (S-Mount) USB 3.0 camera with the ON Semiconductor MT9P031 CMOS sensor delivers 30 frames per second at 2 MP resolution. This model comes with a S-mount.
General Information
| Camera Category | Area Scan Camera |
|---|---|
| Manufacturer | Basler |
| Order Number | 106691 |
Sensor
| Pixel Size (H x V) | 2.2 μm x 2.2 μm |
|---|---|
| Resolution (H x V) | 1920 px x 1080 px |
| Frame Rate | 30 fps |
| Mono/Color | Color |
| Resolution | 2 MP |
| Shutter | Rolling Shutter |
| Sensor Size | 4.22 mm x 2.38 mm |
| Sensor | MT9P031 |
| Sensor Format | 1/3.7'' |
| Sensor Type | CMOS |
| Sensor Vendor | onsemi |
| Spectrum | Visible |
Camera Data
| Digital Input | 1 |
|---|---|
| Digital Output | 2 |
| Exposure Control |
|
| General Purpose I/O | 2 |
| Power Requirements (typical) | 1.2 W |
| Power Supply | Via USB 3.0 interface |
| Synchronization |
|
| Interface | USB 3.0 |
| Pixel Bit Depth |
|
Housing
| Housing Type | Board Level |
|---|---|
| Lens Mount | S-mount |
| Housing Size (L x W x H) | 19.9 mm x 29.3 mm x 29 mm |
| Operating Temperature | 0 °C - 50 °C |
Manufacturer
| Basler |
|---|
Conformity
- CE
- EAC
- FCC
- GenICam
- KC
- RoHS
- UL
- USB3 Vision
Features
For more information about the features, visit the Basler Product Documentation
