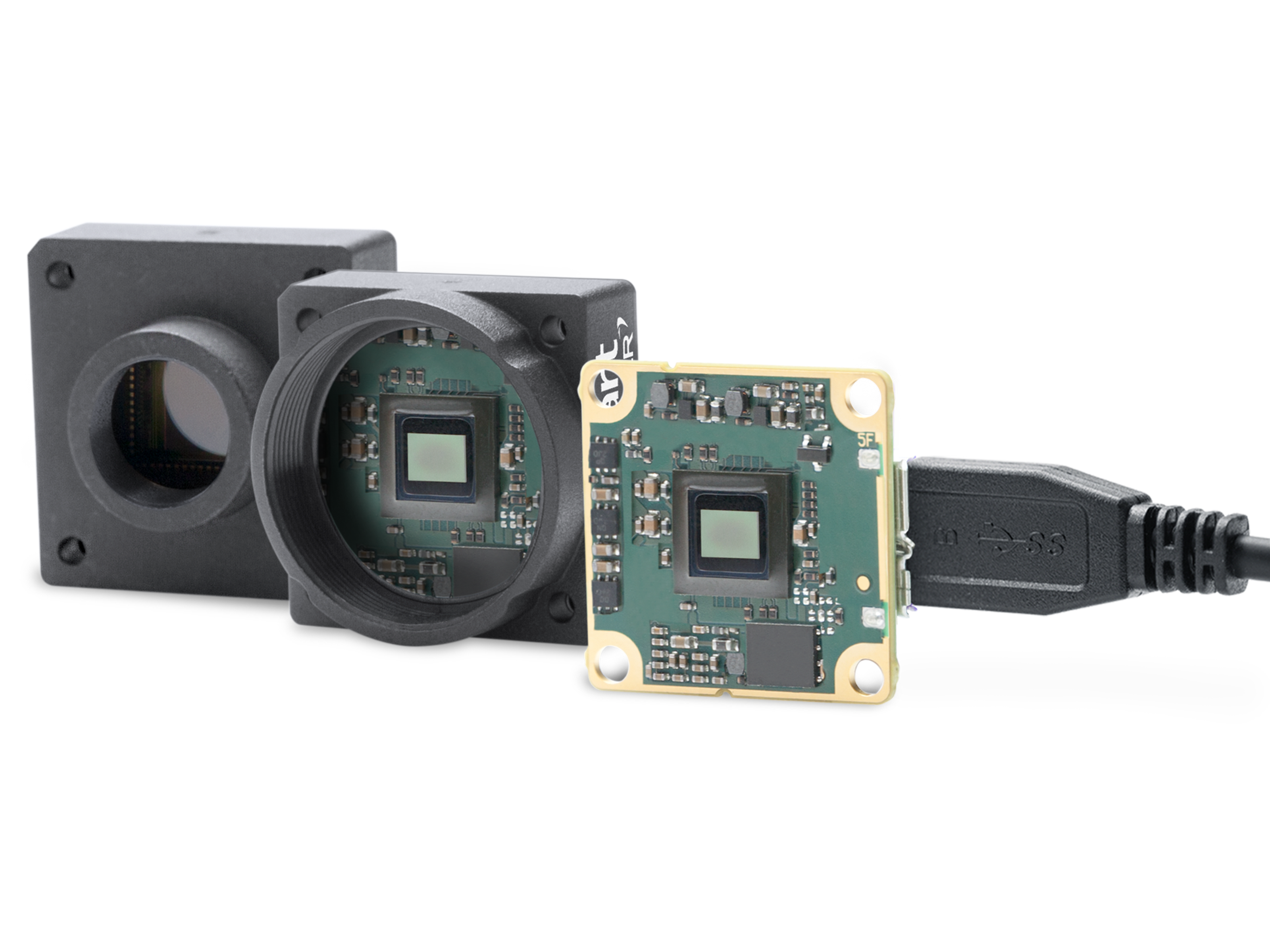

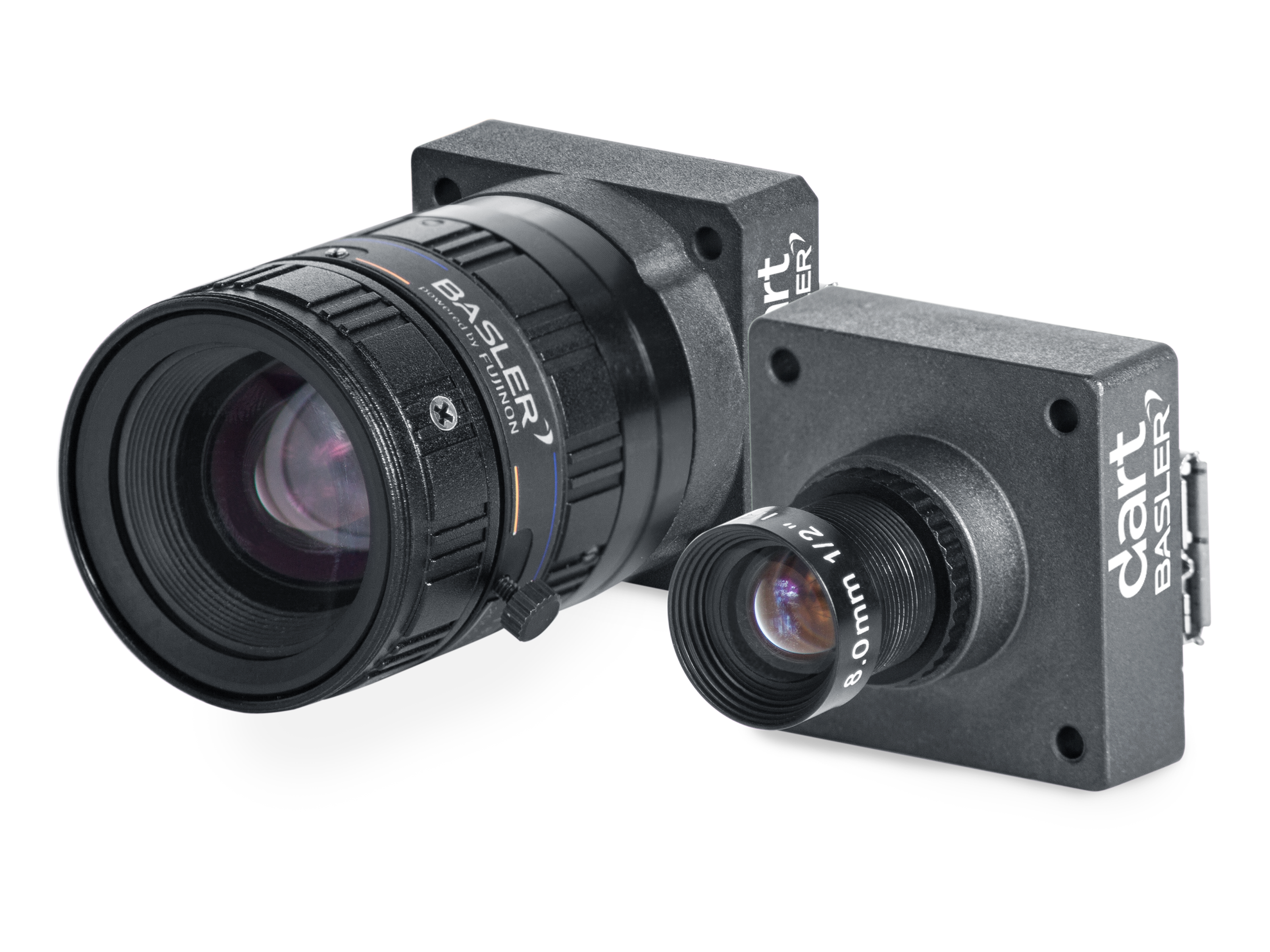

Basler dart Classic daA1280-54um (No-Mount)

AR0134 Sensor
54 fps Frame rate
1.2 MP Resolution
USB 3.0 Interface
1/3" Sensor Format

The Basler daA1280-54um (No-Mount) USB 3.0 camera with the onsemi AR0134 CMOS sensor delivers 54 frames per second at 1.2 MP resolution. This model has no mount.

Quantity

Net list price	€159.00
Delivery time	Standardapprox. 2 weeks Express3 - 5 business days

Order Number	106680
Product Family	dart Classic
Camera Category	Area Scan Camera

Sensor Vendor	onsemi
Sensor	AR0134
Shutter	Global Shutter
Sensor Format	1/3"
Sensor Diagonal	6 mm
Sensor Type	CMOS
Sensor Size	4.8 mm × 3.6 mm
Resolution (H x V)	1280 px × 960 px
Resolution	1.2 MP
Pixel Size (H x V)	3.75 μm × 3.75 μm
Frame rate	54 fpsCalculate individual frame rate
Mono/Color	Mono
Spectrum	Visible

Interface	USB 3.0
Image Data Interface	USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)
Pixel Bit Depth	8 bits 12 bits
Synchronization	free-run hardware trigger software trigger
Exposure Control	programmable via the camera API
Digital Input	1
Digital Output	2
General Purpose I/O	2
Power Supply	Via USB 3.0 interface
Power Requirements (typical)	1.2 W

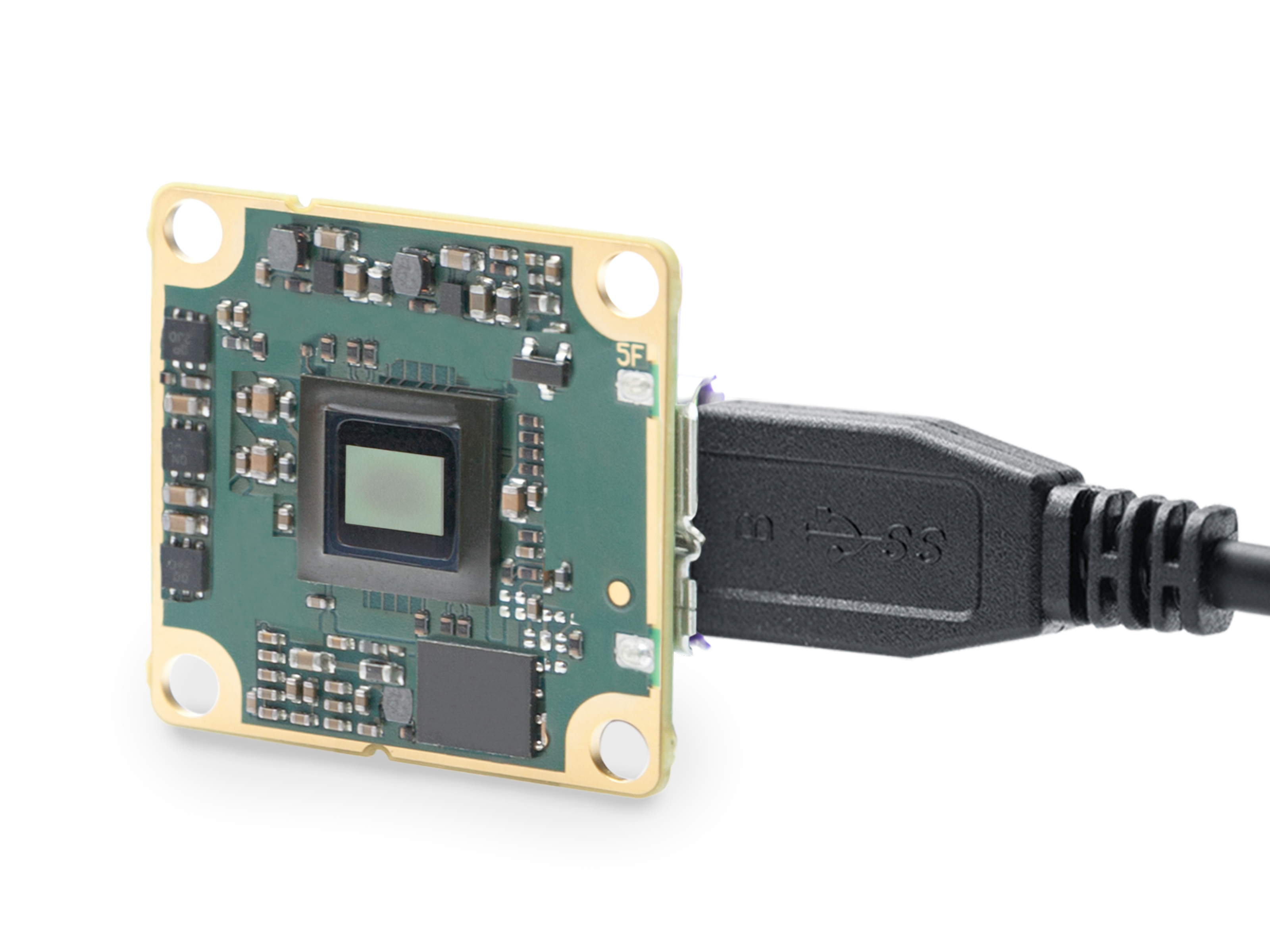

Housing Type	Board Level
Housing Size (L x W x H)	7.2 mm x 27 mm x 27 mm
Weight	5 g
Lens Mount	No-Mount
Operating Temperature	0 °C - 75 °C
