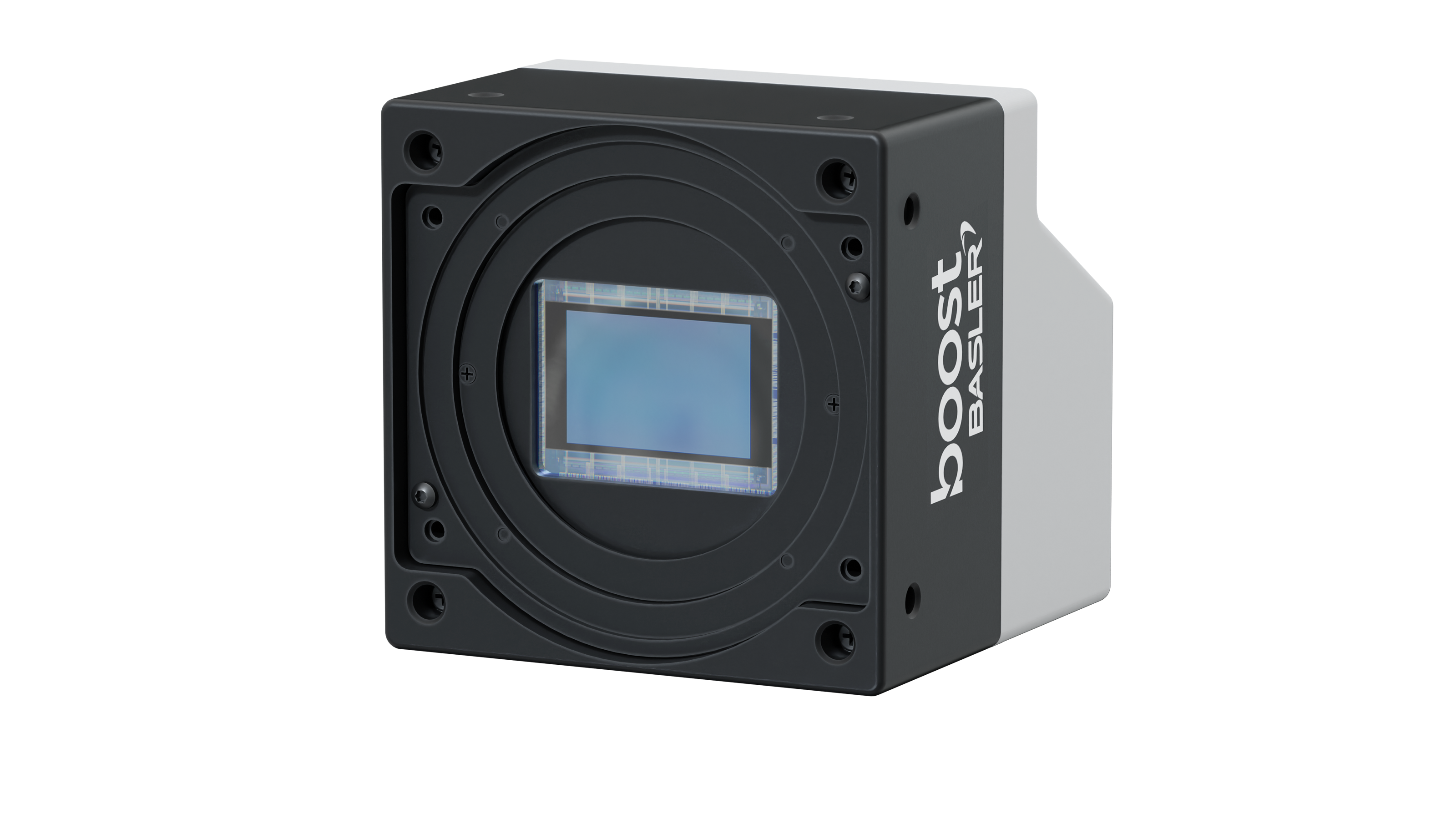

Basler boost V boA9344-30cc

The Basler boA9344-30cc CoaXPress 2.0 camera with the GMAX3265 CMOS sensor delivers 30 images per second at 65 MP resolution.

Quantity

Net list price	€6,399.00
Delivery time	Standardapprox. 10 weeks

Sensor Vendor	Gpixel
Sensor	GMAX3265
Shutter	Global Shutter
Sensor Format	2.3"
Sensor Diagonal	37.4 mm
Sensor Type	CMOS
Sensor Size	29.9 mm × 22.4 mm
Resolution (H x V)	9344 px × 7000 px
Resolution	65 MP
Pixel Size (H x V)	3.2 μm × 3.2 μm
Frame rate	30 fpsCalculate individual frame rate
Mono/Color	Color
Spectrum	Visible

Interface	CoaXPress (CXP-12)
Image Data Interface	CoaXPress (2.5–12.5 Gbps)
Pixel Bit Depth	8 bits 10 bits
Synchronization	hardware trigger software trigger
Digital Output	1
General Purpose I/O	1
Power Supply	PoCXP or 24 VDC
Power Requirements (typical)	14 W
