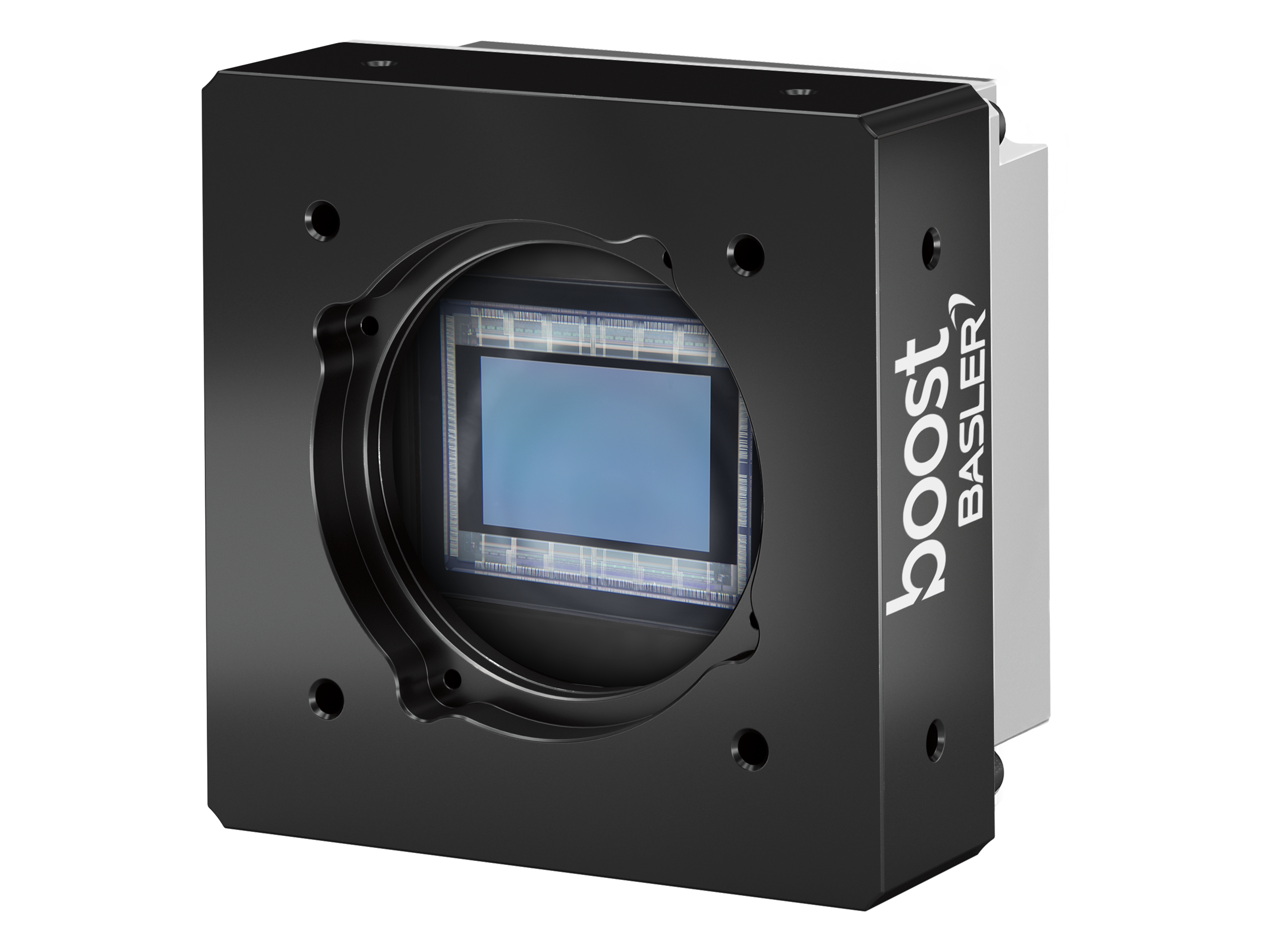

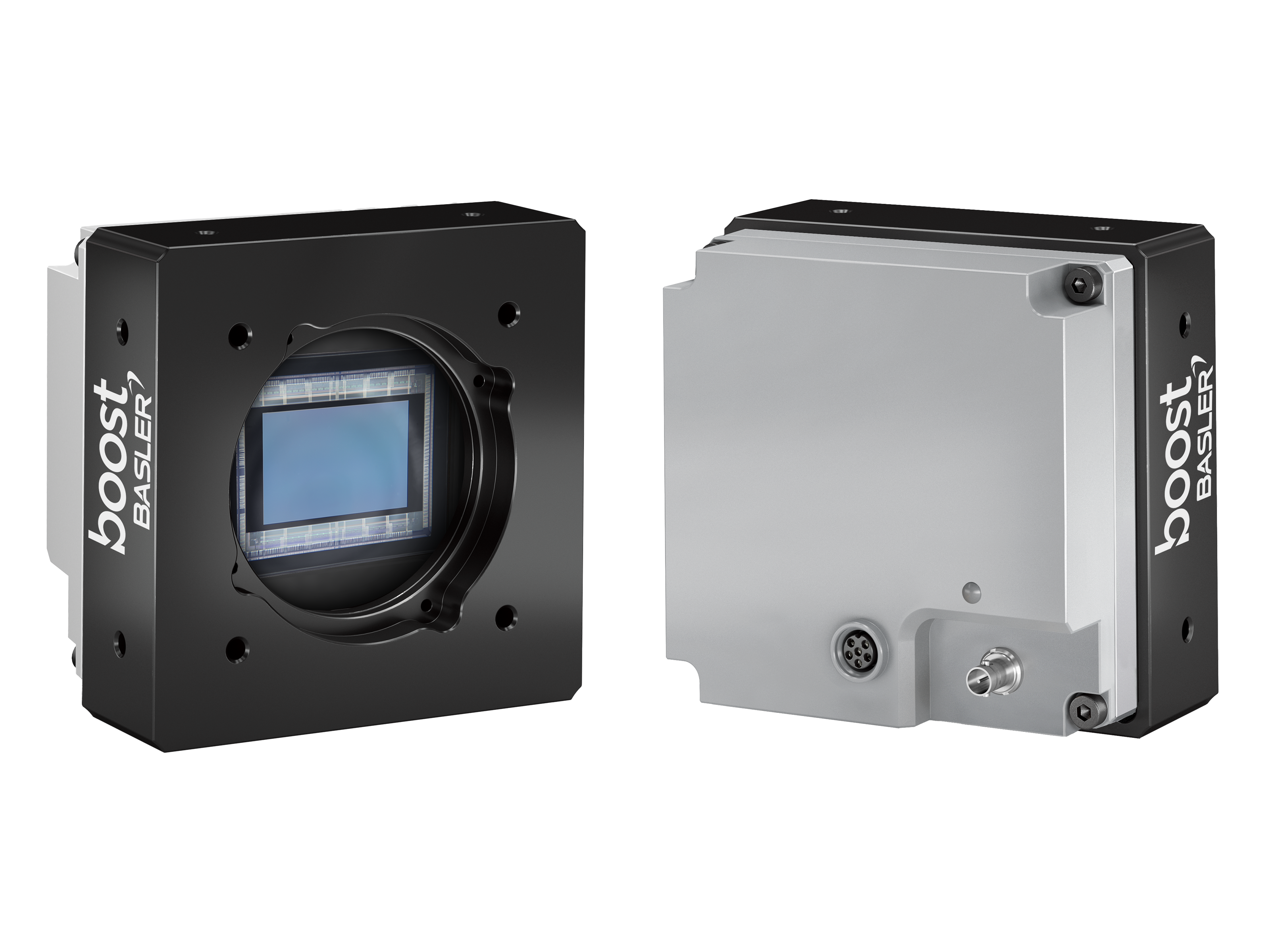

Basler boost boA8100-16cm

Name: boA8100-16cm
Brand: Basler
SKU: 108393
Price: 4729 EUR
Availability: InStock

The Basler boA8100-16cm CoaXPress camera with the onsemi XGS 45000 CMOS sensor delivers 19 frames per second at 45 MP resolution.

The boost series is available with different lens mounts (F-mount and M42-mount). These must be purchased separately for the camera.

3-year warranty on Basler productsDirect support from local Basler teamsSecure checkout and data protection

Suitable Products

pylon vTools for image processing
Design robust image processing software for quality assurance and tracking. Functions such as blob analysis, matching, and code reader can be combined using drag-and-drop design and flexibly integrated into the target application.
pylon Software for image acquisition
pylon offers certified drivers for many camera interfaces, as well as simple programming interfaces and practical tools for camera setup.

Sensor Vendor	onsemi
Sensor	XGS 45000
Shutter	Global Shutter
Sensor Format	35 mm
Sensor Type	CMOS
Sensor Size	26.2 mm × 17.4 mm
Resolution (H x V)	8192 px × 5460 px
Resolution	44.7 MP
Pixel Size (H x V)	3.2 μm × 3.2 μm
Frame rate	19 fpsCalculate individual frame rate
Mono/Color	Mono
Spectrum	Visible

Quantum Efficiency (typical/minimal)	55.3 % (typical)
Dark Noise (typical/maximal)	4.5 e¯ (typical)
Saturation Capacity (typical/minimal)	9 ke¯ (typical)
Dynamic Range (typical/minimal)	65.4 dB (typical)
Signal-to-Noise Ratio (typical/minimal)	39.66 dB (typical)

Interface	CoaXPress (CXP-12)
Image Data Interface	CoaXPress (2.5–12.5 Gbps)
Pixel Bit Depth	10 bits 12 bits
Synchronization	free-run hardware trigger software trigger
Exposure Control	hardware trigger programmable via the camera API
Digital Input	1
General Purpose I/O	2
Power Supply	PoCXP or 24 VDC
Power Requirements (typical)	8.6 W

Image Adjustment	Adjust pixel values losslessly with Black Level, Digital Shift, and other standard features.
Vignetting Correction	Correct lens shading artifacts that occur in acquired images.

Burst Mode	Acquire a sequence of images after triggering once and output them as required. In High-Speed Burst Mode, you can temporarily bypass the data limitation of GigE.
Information Utilisation	Use additional information from Chunks and Events to optimize your automation.
Intelligent Light Control (SLP)	Control the lighting directly with the camera. By synchronizing the flash mode and adjusting the brightness levels, you can quickly achieve precise lighting conditions and shorten the development time of your application.
Sequencer	Program sequential processes in the camera to control image acquisition and pre-processing in real time.
