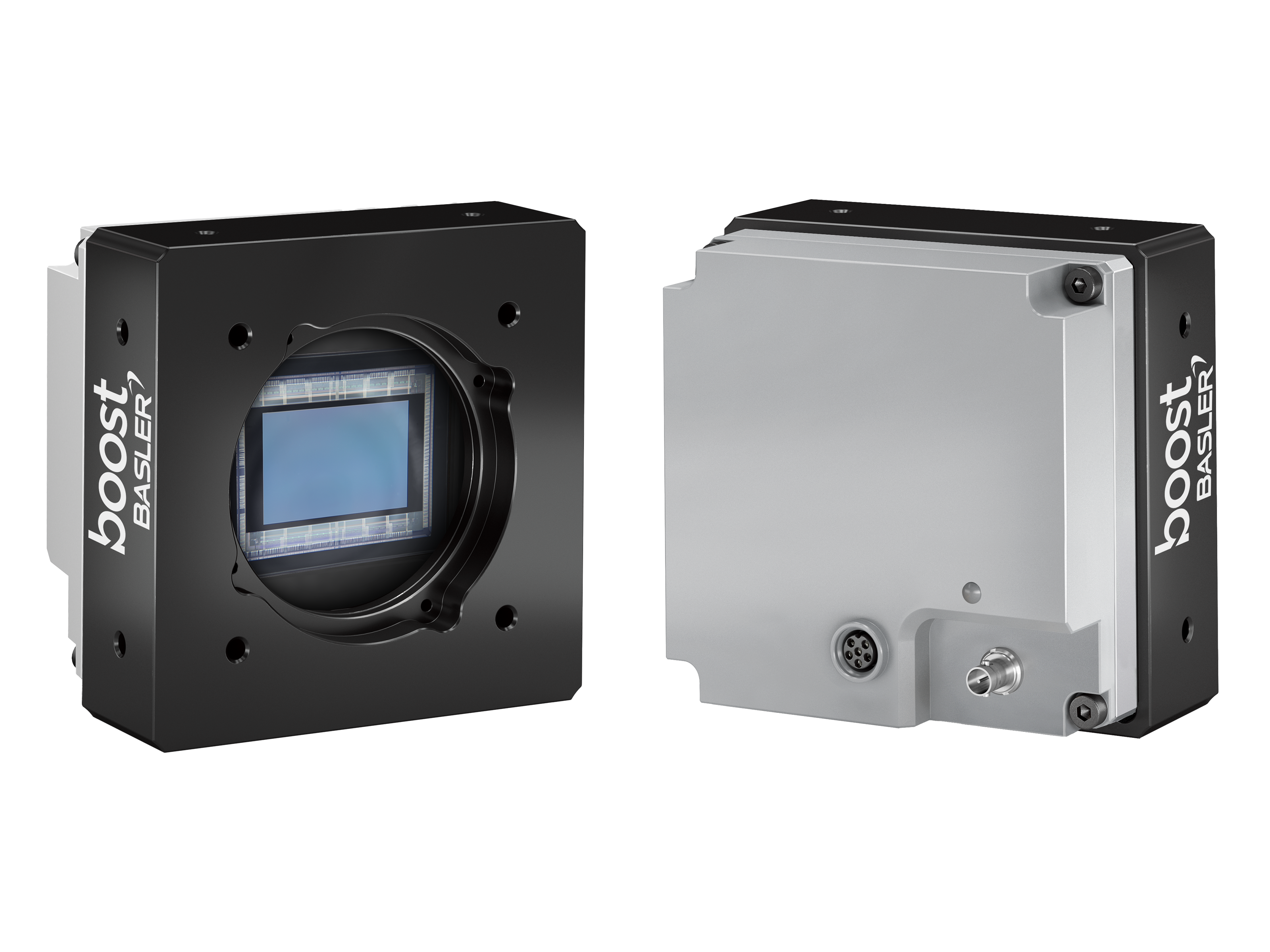

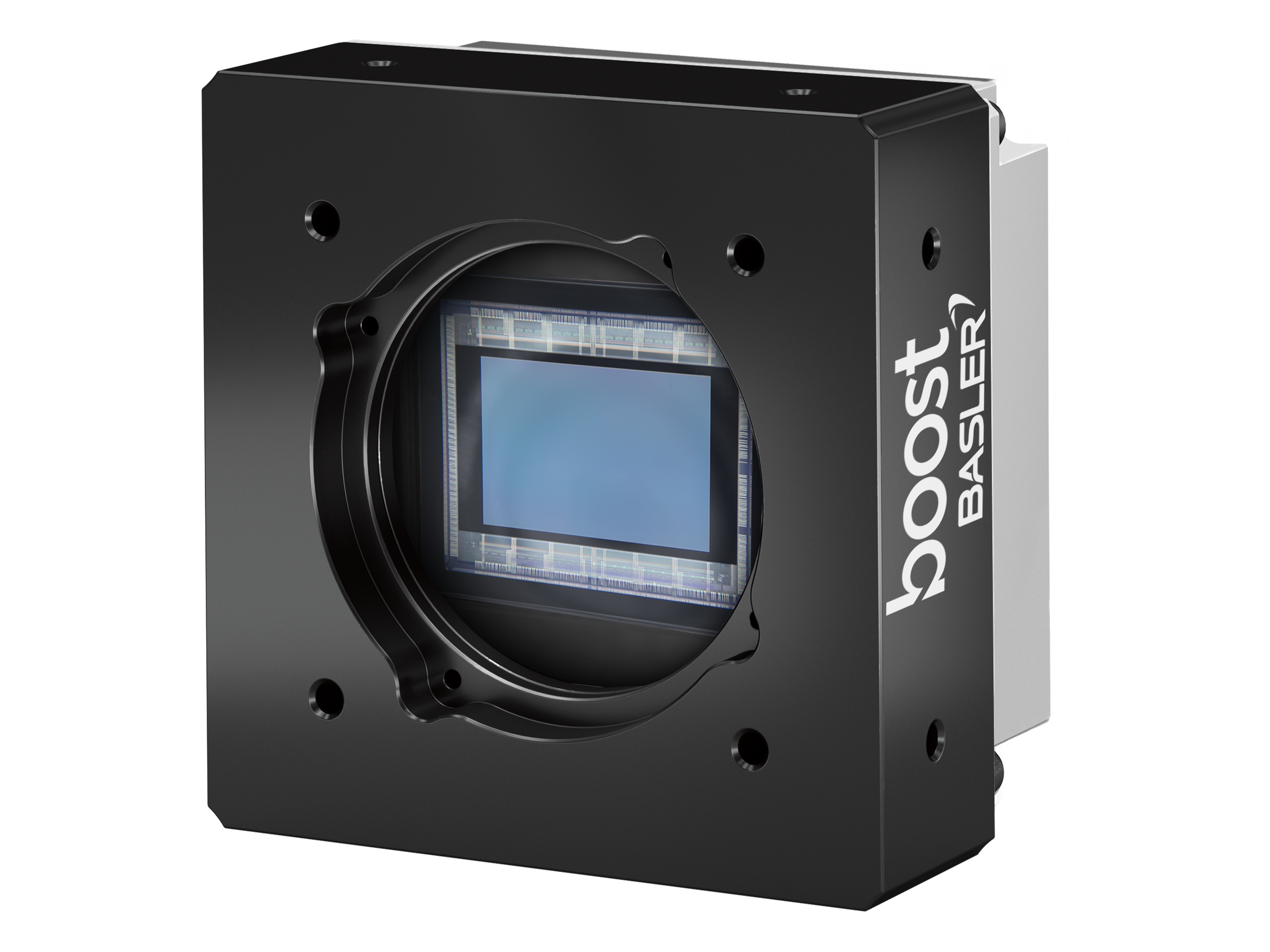

Basler boost boA4500-45cc

XGS 20000 Sensor
45 fps Frame rate
CoaXPress (CXP-12) Interface
20 MP Resolution (MP)
1.3" Sensor Format

The Basler boA4500-45cc CoaXPress camera with the onsemi XGS 20000 CMOS sensor delivers 45 frames per second at 20 MP resolution.

The boost series is available with different lens mounts (F-mount and M42-mount). These must be purchased separately for the camera.

Recommended accessories

Interface Cards

- select -

imaWorx CXP-12 Quad +€1,639.00

CXP-12 Interface Card 4C +€1,569.00

Data Cable

- select -

Cable CXP, Micro-BNC x2 (HD BNC), P, 10 m +€109.00

Cable CXP, Micro-BNC x2 (HD-BNC), DrC,5m +€116.00

Cable CXP, Micro-BNC x2 (HD BNC), P, 5 m +€79.00

Cable CXP, Micro-BNC x2 (HD BNC), P, 3 m +€69.00

Power Supply

- select -

Power Supply 24V, HRS HR10A, 4p +€79.00

Heat Sink

- select -

Heat Sink for boost V (2pcs) +€59.00

Mount

- select -

boost V C-Mount +€49.00

boost V M58x0.75-Mount (FBD 11.48 mm) +€39.00

boost V M42x1-Mount (FBD 12mm) +€39.00

boost V F-Mount +€169.00

Suitable Products

Recommended software

pylon vTools for image processing
Design robust image processing software for quality assurance and tracking. Functions such as blob analysis, matching, and code reader can be combined using drag-and-drop design and flexibly integrated into the target application.
pylon Software for image acquisition
pylon offers certified drivers for many camera interfaces, as well as simple programming interfaces and practical tools for camera setup.

Manufacturer	Basler
Order Number	108390
Product Family	boost R
Camera Series	Basler boost
Camera Category	Area Scan Camera
Warranty	36 Months

Sensor Vendor	onsemi
Sensor	XGS 20000
Shutter	Global Shutter
Sensor Format	1.3"
Sensor Diagonal	20.36 mm
Sensor Type	CMOS
Sensor Size	14.4 mm × 14.4 mm
Resolution (H x V)	4500 px × 4500 px
Resolution	20 MP
Pixel Size (H x V)	3.2 μm × 3.2 μm
Frame rate	45 fpsCalculate individual frame rate
Mono/Color	Color
Spectrum	Visible

Interface	CoaXPress (CXP-12)
Image Data Interface	CoaXPress (2.5–12.5 Gbps)
Pixel Bit Depth	10 bits 12 bits
Synchronization	free-run hardware trigger software trigger
Exposure Control	hardware trigger programmable via the camera API
Digital Input	1
General Purpose I/O	2
Power Supply	PoCXP or 24 VDC
Power Requirements (typical)	10.4 W

Housing Type	Box
Housing Size (L x W x H)	49.1 mm x 80 mm x 80 mm
Weight	525 g
Lens Mount	F-mount M42 x 0.75 M42 x 1
Operating Temperature	0 °C - 50 °C

Color Creation	With this set of features, you can correct artifacts in color images without affecting the structures in the image.
Image Adjustment	Adjust pixel values losslessly with Black Level, Digital Shift, and other standard features.
Vignetting Correction	Correct lens shading artifacts that occur in acquired images.

Basler boost boA4500-45cc

General Information

Sensor

Camera Data

Housing

Technical Drawing

Manufacturer

Conformity

Documentation

Features

Easy Handling

Image Quality Optimization

Process Control

Speed Increase

Suitable Products

Recommended software

pylon vTools for image processing

pylon Software for image acquisition

Product successfully added to cart

Burst Mode	Acquire a sequence of images after triggering once and output them as required. In High-Speed Burst Mode, you can temporarily bypass the data limitation of GigE.
Information Utilisation	Use additional information from Chunks and Events to optimize your automation.
Intelligent Light Control (SLP)	Control the lighting directly with the camera. By synchronizing the flash mode and adjusting the brightness levels, you can quickly achieve precise lighting conditions and shorten the development time of your application.
Sequencer	Program sequential processes in the camera to control image acquisition and pre-processing in real time.
