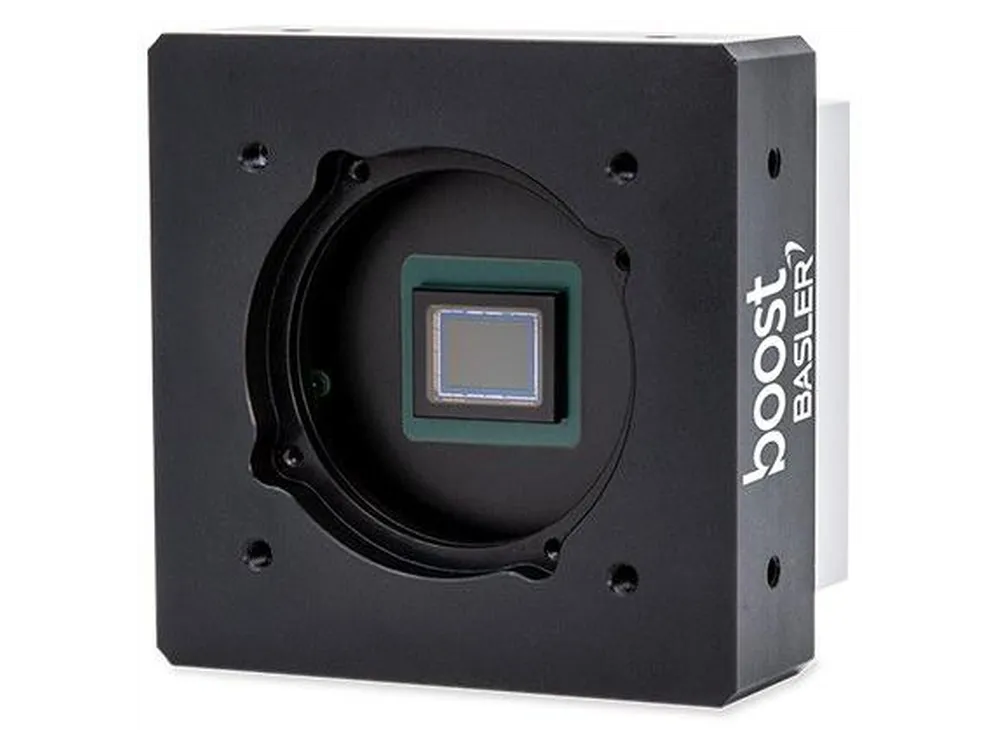

Basler boost boA2832-190cm

IMX536 Sensor
190 fps Frame rate
CoaXPress (CXP-12) Interface
8 MP Resolution (MP)
2/3" Sensor Format

The Basler CoaXPress 2.0 boA2832-190cm camera with the Sony IMX536 CMOS sensor delivers 190 frames per second with a 8 MP resolution.

The boost series is available with different lens mounts (C-mount, F-mount and M42-mount). These must be purchased separately for the camera.

Recommended accessories

- select -

Basler Lens C11-3520-12M f35mm +€259.00

Basler Lens C11-2520-12M f25mm +€259.00

Basler Lens C11-1620-12M f16mm +€259.00

Basler Lens C11-5020-12M f50mm +€259.00

Basler Lens C11-0824-12M f8.5mm +€259.00

Basler Lens C11-1220-12M f12mm +€259.00

Basler Lens C12-2524-25M +€299.00

Basler Lens C12-1624-25M +€299.00

Basler Lens C12-1224-25M +€299.00

Basler Lens C12-3524-25M +€299.00

Basler Lens C12-5024-25M +€299.00

Lens Housing

- select -

IP-Housing Medium Lens Tube 90mm +€269.00

IP-Housing Medium Lens Tube 70mm +€269.00

IP-Housing Medium Lens Tube 80mm +€269.00

IP-Housing Medium Lens Tube 60mm +€269.00

IP-Housing Medium Lens Tube 100mm +€269.00

IP-Housing Lens Tube 80mm +€109.00

IP-Housing Lens Tube 70mm +€109.00

IP-Housing Lens Tube 60mm +€109.00

IP-Housing Lens Tube 50mm +€109.00

Adapter Ring

- select -

M28 to M50 Adapter Ring +€23.00

M28 to M75 Adapter Ring +€29.00

Data Cable

- select -

Cable GigE, Cat 6, M12/RJ45, DrC, 25m +€229.00

Cable GigE, Cat 6, M12/RJ45, DrC, 20m +€189.00

Cable GigE, Cat 6, M12/RJ45, DrC, 10m +€119.00

Cable GigE, Cat 6, M12/RJ45, DrC, 5m +€89.00

Cable GigE, Cat 6, M12/RJ45, DrC, 15m +€149.00

I/O Cable

- select -

Power-I/O Cable RS-422 M8 6p/open, 10m +€119.00

Power-I/O Cable, M8 6p/open, P, 5 m, IP67 +€29.20

Power-I/O Cable, M8 6p/open, P, 10 m, IP67 +€42.10

Cooling & Mounting

- select -

Compressed Air Cooler ace 2 / racer 2 S +€69.00

Heat sink for ace 2 IP67 +€15.00

Tripod Mount ace 2 and racer 2 S +€15.00

Suitable Products

Recommended software

pylon vTools for image processing
Design robust image processing software for quality assurance and tracking. Functions such as blob analysis, matching, and code reader can be combined using drag-and-drop design and flexibly integrated into the target application.
pylon Software for image acquisition
pylon offers certified drivers for many camera interfaces, as well as simple programming interfaces and practical tools for camera setup.

Manufacturer	Basler
Order Number	108670
Product Family	boost R
Camera Series	Basler boost
Camera Category	Area Scan Camera
Warranty	36 Months

Sensor Vendor	Sony
Sensor	IMX536
Shutter	Global Shutter
Sensor Format	2/3"
Sensor Diagonal	11 mm
Sensor Type	CMOS
Sensor Size	7.8 mm × 7.8 mm
Resolution (H x V)	2832 px × 2840 px
Resolution	8 MP
Pixel Size (H x V)	2.74 μm × 2.74 μm
Frame rate	190 fpsCalculate individual frame rate
Mono/Color	Mono
Spectrum	Visible

Quantum Efficiency (typical/minimal)	66.2 % (typical)
Dark Noise (typical/maximal)	2.2 e¯ (typical)
Saturation Capacity (typical/minimal)	9.6 ke¯ (typical)
Dynamic Range (typical/minimal)	69.8 dB (typical)
Signal-to-Noise Ratio (typical/minimal)	39.8 dB (typical)

Interface	CoaXPress (CXP-12)
Image Data Interface	CoaXPress (2.5–12.5 Gbps)
Pixel Bit Depth	8 bits 10 bits 12 bits
Synchronization	free-run hardware trigger software trigger
Exposure Control	hardware trigger programmable via the camera API
Digital Output	1
General Purpose I/O	2
Power Supply	PoCXP or 24 VDC
Power Requirements (typical)	12 W

Housing Type	Box
Housing Size (L x W x H)	45 mm x 80 mm x 80 mm
Weight	525 g
Lens Mount	C-mount F-mount M42 x 0.75 M42 x 1
Operating Temperature	0 °C - 50 °C

Basler boost boA2832-190cm

General Information

Sensor

EMVA Data

Camera Data

Housing

Technical Drawing

Manufacturer

Conformity

Documentation

Features

Easy Handling

Image Quality Optimization

Process Control

Speed Increase

Suitable Products

Recommended software

pylon vTools for image processing

pylon Software for image acquisition

Product successfully added to cart

Image Adjustment	Adjust pixel values losslessly with Black Level, Digital Shift, and other standard features.
Vignetting Correction	Correct lens shading artifacts that occur in acquired images.

Burst Mode	Acquire a sequence of images after triggering once and output them as required. In High-Speed Burst Mode, you can temporarily bypass the data limitation of GigE.
Information Utilisation	Use additional information from Chunks and Events to optimize your automation.
Intelligent Light Control (SLP)	Control the lighting directly with the camera. By synchronizing the flash mode and adjusting the brightness levels, you can quickly achieve precise lighting conditions and shorten the development time of your application.
Sequencer	Program sequential processes in the camera to control image acquisition and pre-processing in real time.
Timing	Control the start and end of an exposure individually. Add delays or synchronize multiple cameras in a GigE network using PTP.
