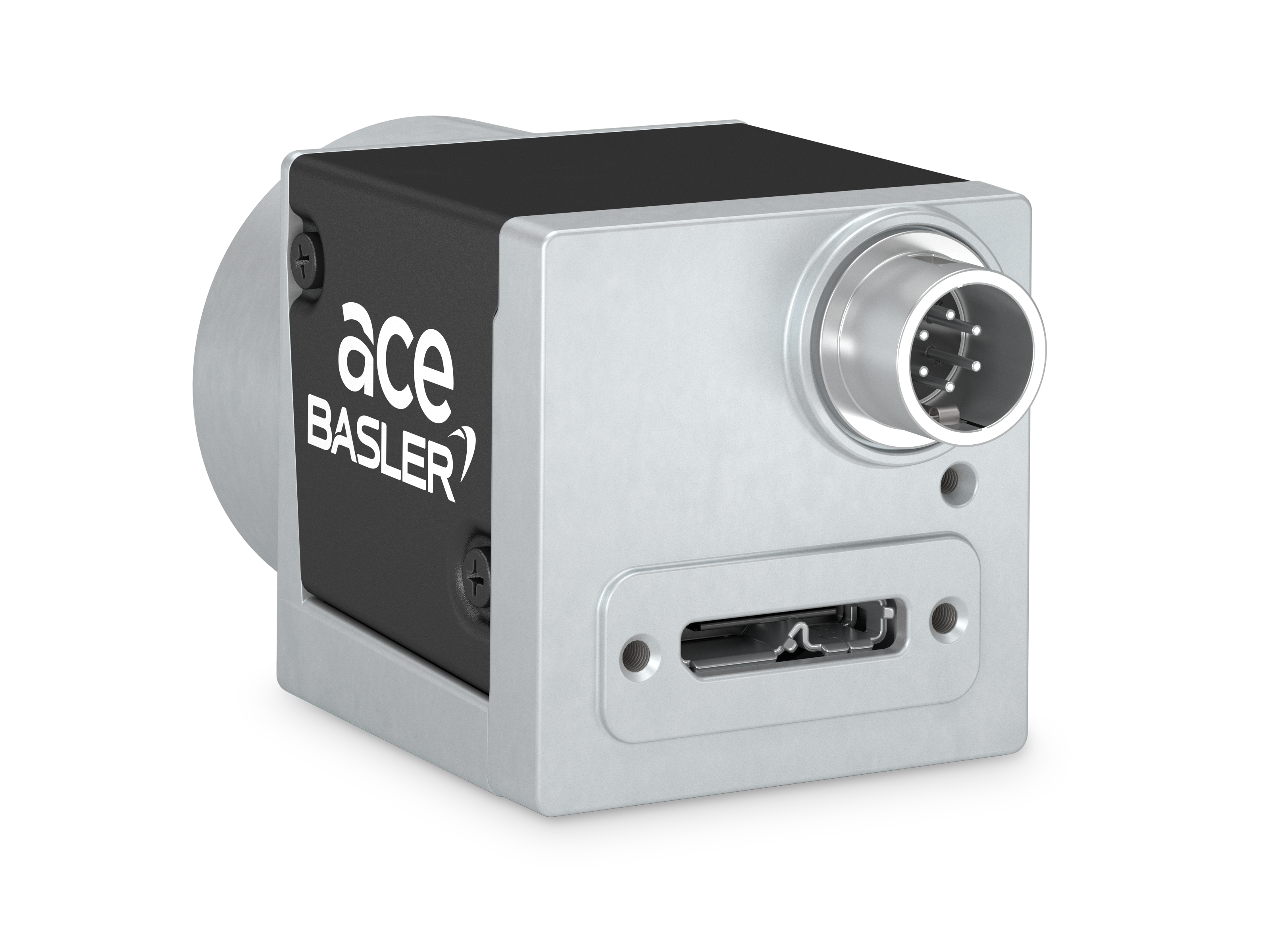

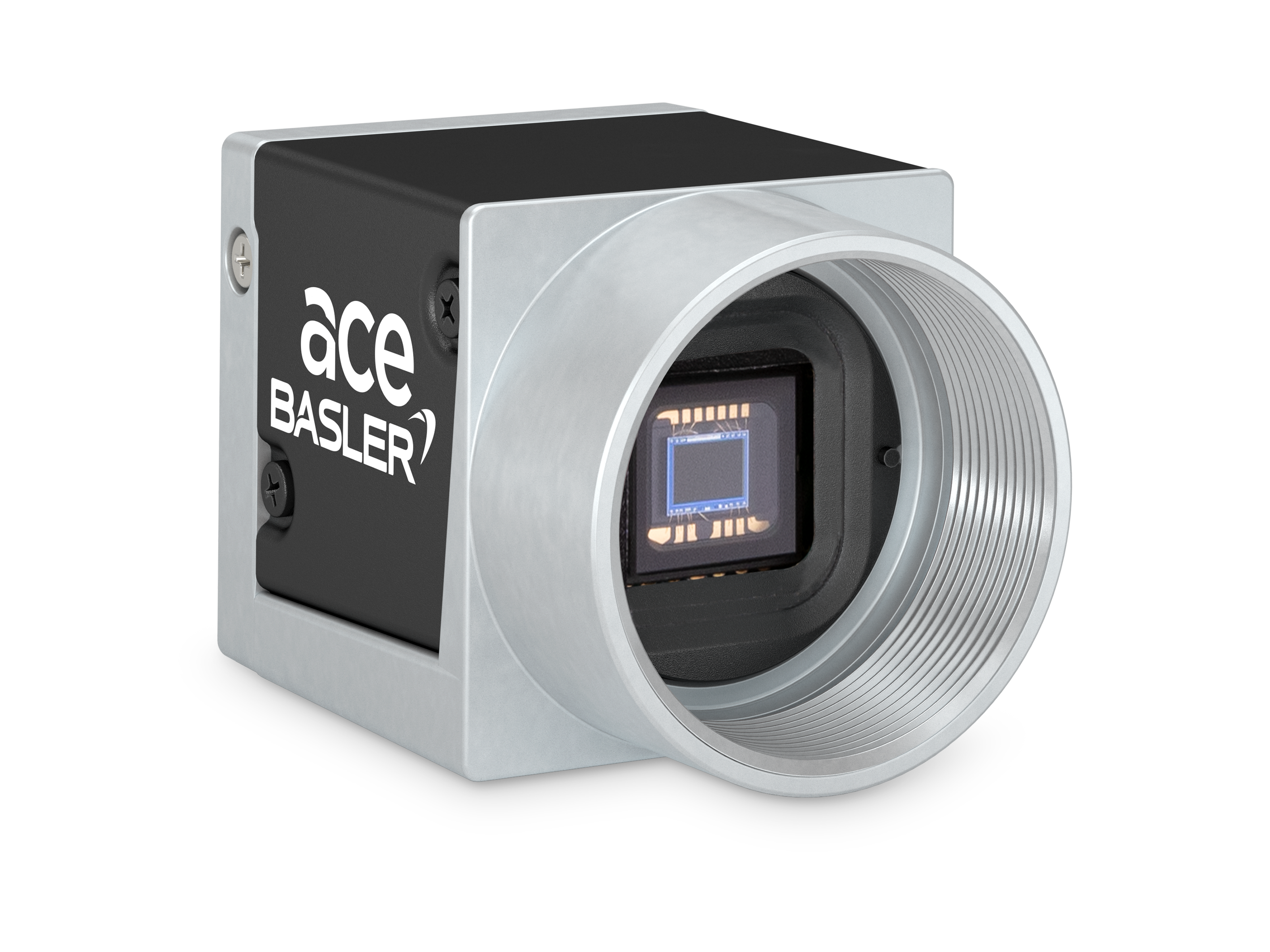

Basler ace U acA720-520um

IMX287 Sensor
525 fps Frame rate
VGA Resolution
USB 3.0 Interface
1/2.9" Sensor Format

The Basler acA720-520um USB 3.0 camera with the Sony IMX287 CMOS sensor delivers 525 frames per second at VGA resolution.

Quantity

Suitable Products

All Basler ace Models

Haven't found the right model? See the product list for an overview of all ace models. Find the right product for your application: filter by sensor, resolution, frame rate, and more.

To the ace product table

Net list price	€349.00
Delivery time	Standardapprox. 2 weeks Express3 - 5 days

Order Number	107654
Product Family	ace U
Product Line	ace U
Camera Category	Area Scan Camera

Sensor Vendor	Sony
Sensor	IMX287
Shutter	Global Shutter
Sensor Format	1/2.9"
Sensor Diagonal	6.21 mm
Sensor Type	CMOS
Sensor Size	4.97 mm × 3.73 mm
Resolution (H x V)	720 px × 540 px
Resolution	VGA
Pixel Size (H x V)	6.9 μm × 6.9 μm
Frame rate	525 fpsCalculate individual frame rate
Mono/Color	Mono
Spectrum	Visible

Quantum Efficiency (typical/minimal)	63.2 % (typical)
Dark Noise (typical/maximal)	2.9 e¯ (typical)
Saturation Capacity (typical/minimal)	20.7 ke¯ (typical)
Dynamic Range (typical/minimal)	74.2 dB (typical)
Signal-to-Noise Ratio (typical/minimal)	43.2 dB (typical)

Interface	USB 3.0
Image Data Interface	USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)
Pixel Bit Depth	8 bits 12 bits
Exposure Control	hardware trigger programmable via the camera API
Digital Input	1
Power Supply	Via USB 3.0 interface
Power Requirements (typical)	3 W

Basler ace U acA720-520um

General Information

Sensor

EMVA Data

Camera Data

Housing

Manufacturer

Conformity

Documentation

Features & Documentation

Chunks

Event Reporting

I/O Control

Image Acquisition Control

Line Source Signals

Miscellaneous

PGI

Pixel Formats

Standard Features

Suitable Products

All Basler ace Models

Housing Type	Box
Housing Size (L x W x H)	29.3 mm x 29 mm x 29 mm
Weight	80 g
Lens Mount	C-mount
Operating Temperature	0 °C - 50 °C
