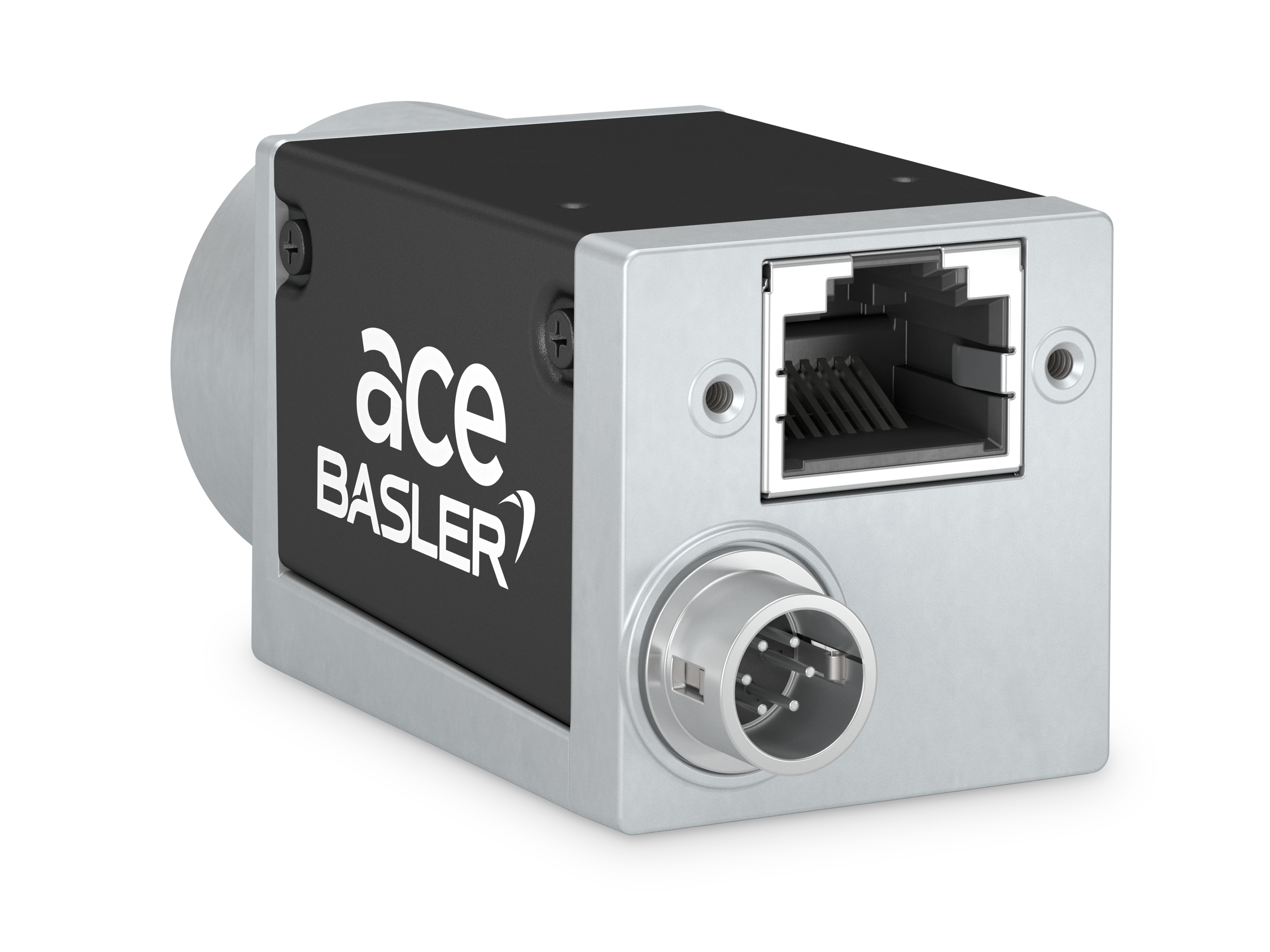

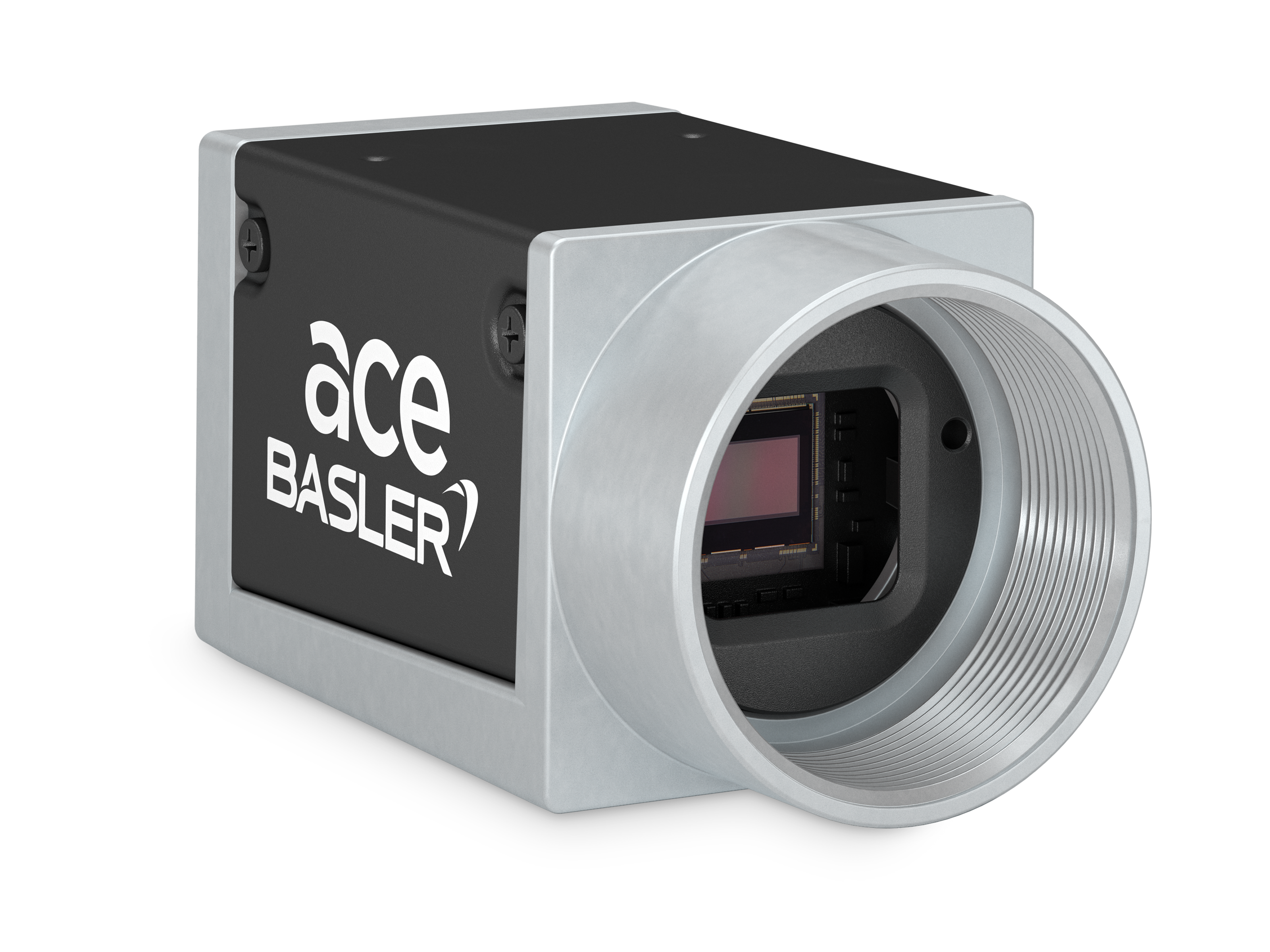

Basler ace acA4024-8gm
- IMX226Sensor
- 8 fpsFrame rate
- 12.2 MPResolution
The Basler acA4024-8gm GigE camera with the Sony IMX226 CMOS sensor delivers 8 frames per second at 12.2 MP Resolution.
General Information
| Order Number | 107408 |
|---|---|
| Product Family | ace U |
| Product Line | ace U |
| Camera Category | Area Scan Camera |
Sensor
| Sensor Vendor | Sony |
|---|---|
| Sensor | IMX226 |
| Shutter | Rolling Shutter |
| Sensor Format | 1/1.7" |
| Sensor Diagonal | 9.33 mm |
| Sensor Type | CMOS |
| Sensor Size | 7.44 mm × 5.61 mm |
| Resolution (H x V) | 4024 px x 3036 px |
| Resolution | 12.2 MP |
| Pixel Size (H x V) | 1.85 μm x 1.85 μm |
| Frame rate | 8 fps |
| Mono/Color | Mono |
| Spectrum | Visible |
EMVA Data
| Quantum Efficiency (typical/minimal) | 83 % (typical) |
|---|---|
| Dark Noise (typical/maximal) | 3.4 e¯ (typical) |
| Saturation Capacity (typical/minimal) | 11 ke¯ (typical) |
| Dynamic Range (typical/minimal) | 70.4 dB (typical) |
| Signal-to-Noise Ratio (typical/minimal) | 40.4 dB (typical) |
Camera Data
| Interface | GigE |
|---|---|
| Exposure Control |
|
| Power Supply | PoE or 12-24 VDC |
| Power Requirements (typical) | 2.5 W |
| Power Consumption PoE | 2.9 W |
Housing
| Housing Type | Box |
|---|---|
| Housing Size (L x W x H) | 42 mm x 29 mm x 29 mm |
| Lens Mount | C-mount |
| Operating Temperature | 0 °C - 50 °C |
Manufacturer
| Basler |
|---|
Conformity
- CE
- EAC
- FCC
- GenICam
- GigE Vision
- IP30
- KC
- RoHS
- UL
Features
For more information about the features, visit the Basler Product Documentation
