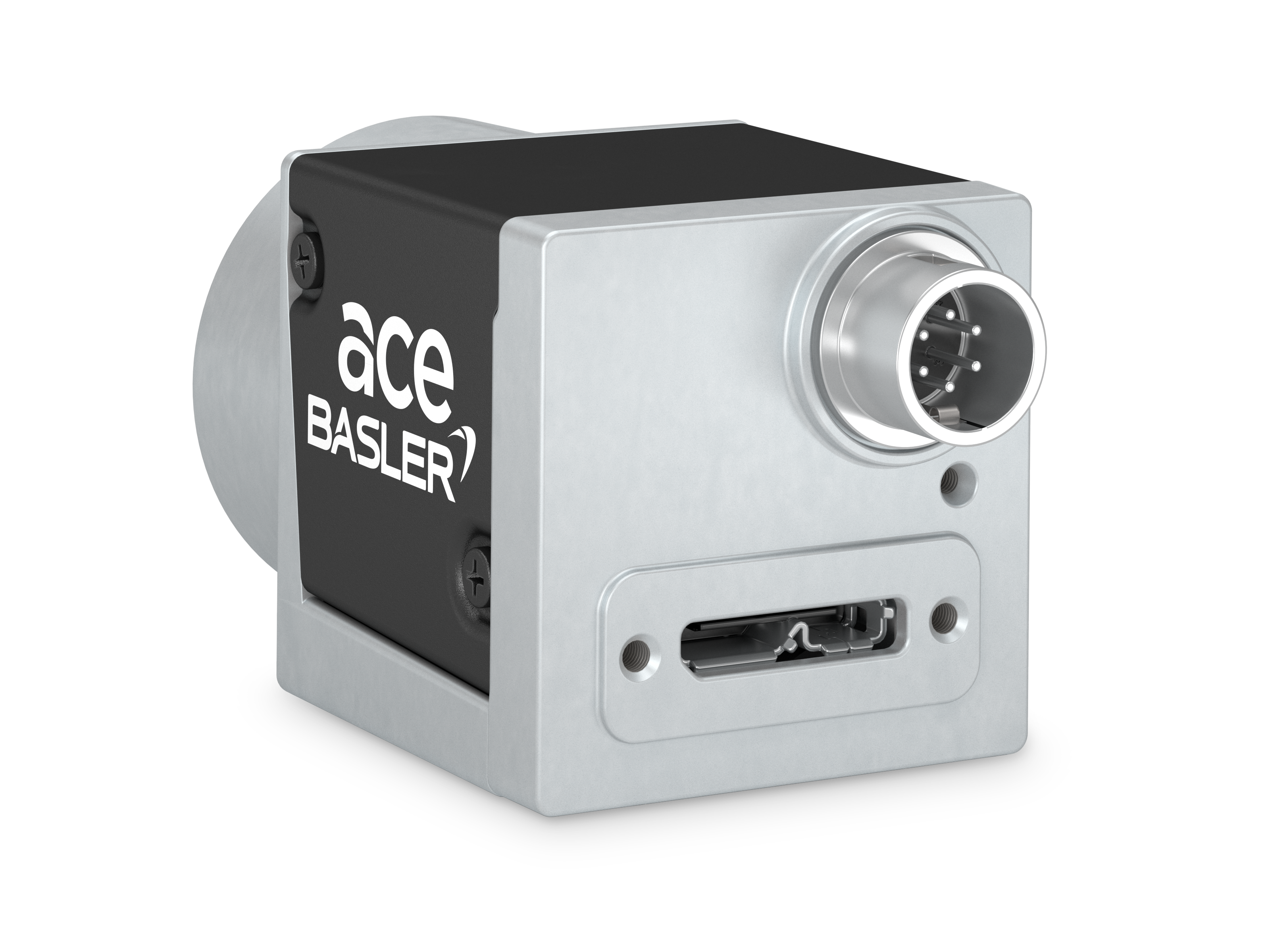

Basler ace U acA1440-220uc

IMX273 Sensor
227 fps Frame rate
1.6 MP Resolution
USB 3.0 Interface
1/2.9" Sensor Format

The Basler acA1440-220uc USB 3.0 camera with the Sony IMX273 CMOS sensor delivers 227 frames per second at 1.6 MP resolution.

Quantity

Suitable Products

All Basler ace Models

Haven't found the right model? See the product list for an overview of all ace models. Find the right product for your application: filter by sensor, resolution, frame rate, and more.

To the ace product table

Net list price	€399.00
Delivery time	Standardapprox. 2 weeks Express3 - 5 days

Order Number	107653
Product Family	ace U
Product Line	ace U
Camera Category	Area Scan Camera

Sensor Vendor	Sony
Sensor	IMX273
Shutter	Global Shutter
Sensor Format	1/2.9"
Sensor Diagonal	6.21 mm
Sensor Type	CMOS
Sensor Size	4.97 mm × 3.73 mm
Resolution (H x V)	1440 px × 1080 px
Resolution	1.6 MP
Pixel Size (H x V)	3.45 μm × 3.45 μm
Frame rate	227 fpsCalculate individual frame rate
Mono/Color	Color
Spectrum	Visible

Interface	USB 3.0
Image Data Interface	USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)
Pixel Bit Depth	10 bits 12 bits
Exposure Control	hardware trigger programmable via the camera API
Digital Input	1
Power Supply	Via USB 3.0 interface
Power Requirements (typical)	3.3 W

Housing Type	Box
Housing Size (L x W x H)	29.3 mm x 29 mm x 29 mm
Weight	80 g
Lens Mount	C-mount
Operating Temperature	0 °C - 50 °C
