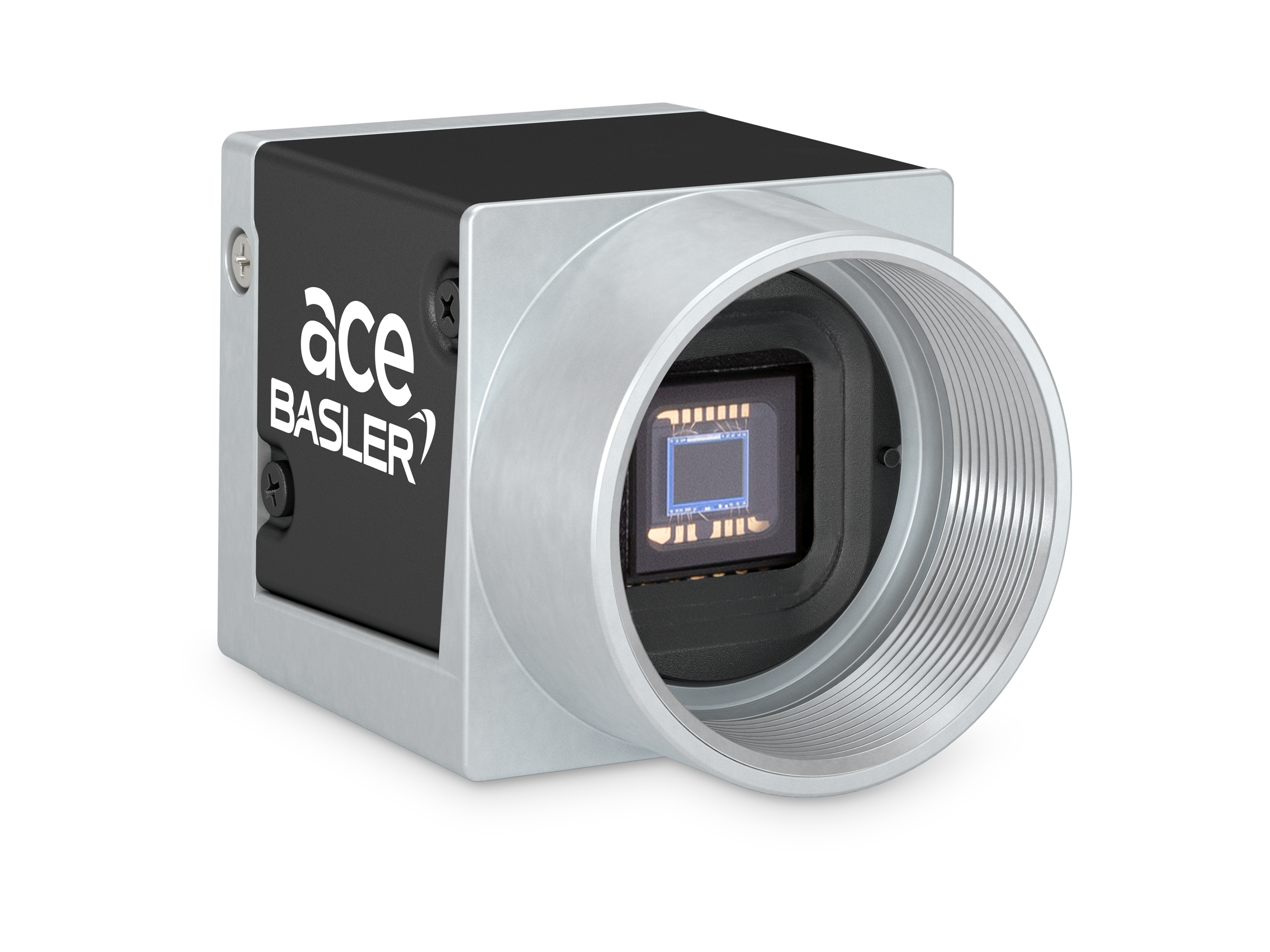

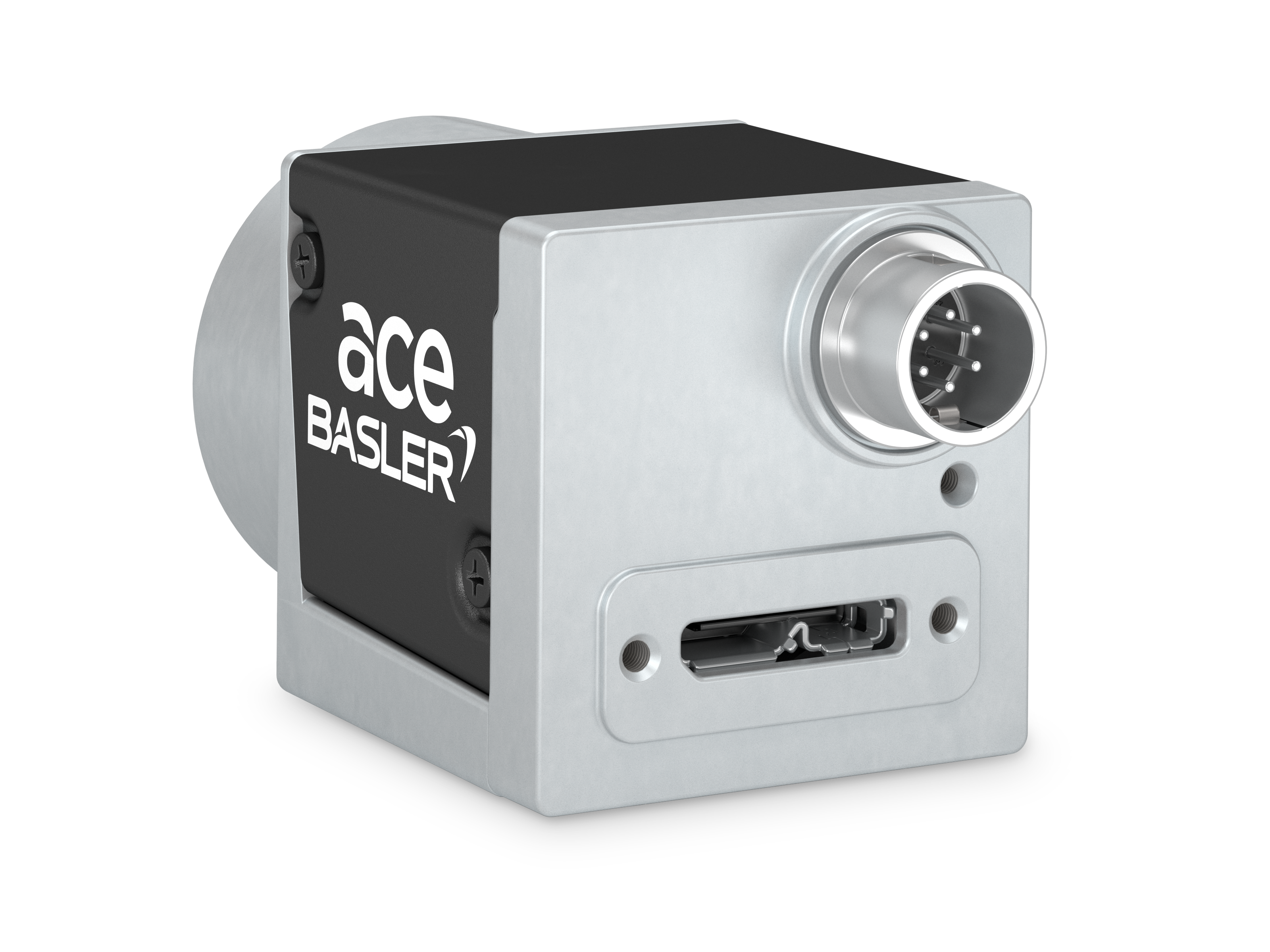

Basler ace acA2440-75um

IMX250 Sensor
75 fps Frame rate
USB 3.0 Interface
5 MP Resolution (MP)
2/3" Sensor Format

The Basler acA2440-75um USB 3.0 camera with the Sony IMX250 CMOS sensor delivers 75 frames per second at 5.0 MP Resolution.

Recommended accessories

Data Cable

Please select

Cable GigE, Cat 6, RJ45 sl hor/RJ45, DrC, P, 5 m +€57.40

Cable GigE Cat 6, S/FTP, 2xRJ-45, 5 m +€7.00

Cable GigE, Cat6a, RJ45 sl hor/RJ45, S, 5 m +€11.70

I/O Cables

Please select

Power-I/O Cable, M8 6p/open, P, 5 m +€29.20

Power Supply

Please select

Power Supply for Camera 18.0W, M8 6-pin +€47.30

PoE Single Port Injector POE29-1AT6 +€35.50

Heat Sink

Please select

Heat sink for ace 2 and racer 2 S +€9.00

Quantity

Suitable Products

Recommended software

pylon vTools for image processing
Design robust image processing software for quality assurance and tracking. Functions such as blob analysis, matching, and code reader can be combined using drag-and-drop design and flexibly integrated into the target application.
pylon Software for image acquisition
pylon offers certified drivers for many camera interfaces, as well as simple programming interfaces and practical tools for camera setup.

All Basler ace Models

Haven't found the right model? See the product list for an overview of all ace models. Find the right product for your application: filter by sensor, resolution, frame rate, and more.

To the ace product table

Net list price	€1,309.00
Ready for dispatch	Standardapprox. 2 weeks Express1 - 2 business days

Manufacturer	Basler
Order Number	107204
Product Family	ace U
Product Line	ace U
Camera Series	Basler ace
Camera Category	Area Scan Camera
Warranty	36 Months

Sensor Vendor	Sony
Sensor	IMX250
Shutter	Global Shutter
Sensor Format	2/3"
Sensor Diagonal	11.02 mm
Sensor Type	CMOS
Sensor Size	8.45 mm × 7.07 mm
Resolution (H x V)	2448 px × 2048 px
Resolution	5 MP
Pixel Size (H x V)	3.45 μm × 3.45 μm
Frame rate	75 fpsCalculate individual frame rate
Mono/Color	Mono
Spectrum	Visible

Quantum Efficiency (typical/minimal)	68 % (typical)
Dark Noise (typical/maximal)	2.4 e¯ (typical)
Saturation Capacity (typical/minimal)	10.7 ke¯ (typical)
Dynamic Range (typical/minimal)	73.1 dB (typical)
Signal-to-Noise Ratio (typical/minimal)	40.3 dB (typical)

Interface	USB 3.0
Image Data Interface	USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)
Pixel Bit Depth	10 bits 12 bits
Synchronization	free-run hardware trigger software trigger
Exposure Control	hardware trigger programmable via the camera API
Digital Input	1
Digital Output	1
General Purpose I/O	2
Power Supply	Via USB 3.0 interface
Power Requirements (typical)	3.2 W

Basler ace acA2440-75um

General Information

Sensor

EMVA Data

Camera Data

Housing

Manufacturer

Conformity

Documentation

Features & Documentation

Easy Handling

Image Quality Optimization

Process Control

Speed Increase

Suitable Products

Recommended software

pylon vTools for image processing

pylon Software for image acquisition

All Basler ace Models

Housing Type	Box
Housing Size (L x W x H)	29.3 mm x 29 mm x 29 mm
Weight	80 g
Lens Mount	C-mount
Operating Temperature	0 °C - 50 °C

Auto Functions	Use the camera's auto functions to allow the camera to find the optimum settings for exposure time, gain, and white balance, for example. This simplifies camera integration into your application.
Presettings	Automate recurring steps in your application by using the camera's default settings and/or creating and saving your own presets.

Image Adjustment	Adjust pixel values losslessly with Black Level, Digital Shift, and other standard features.
PGI - Patented	Use the complete image enhancement package or choose from Denoising, Sharpness, Debayering, and Color-Anti-Aliasing to adjust the image quality.

Digital I/Os	Control the camera via trigger commands or use the camera to control components of your vision system, such as lighting or encoders.
Information Utilisation	Use additional information from Chunks and Events to optimize your automation.
Intelligent Light Control (SLP)	Control the lighting directly with the camera. By synchronizing the flash mode and adjusting the brightness levels, you can quickly achieve precise lighting conditions and shorten the development time of your application.
Sequencer	Program sequential processes in the camera to control image acquisition and pre-processing in real time.
