Basler ace acA2440-35uc

IMX264 Sensor
35 fps Frame rate
USB 3.0 Interface
5 MP Resolution (MP)
2/3" Sensor Format

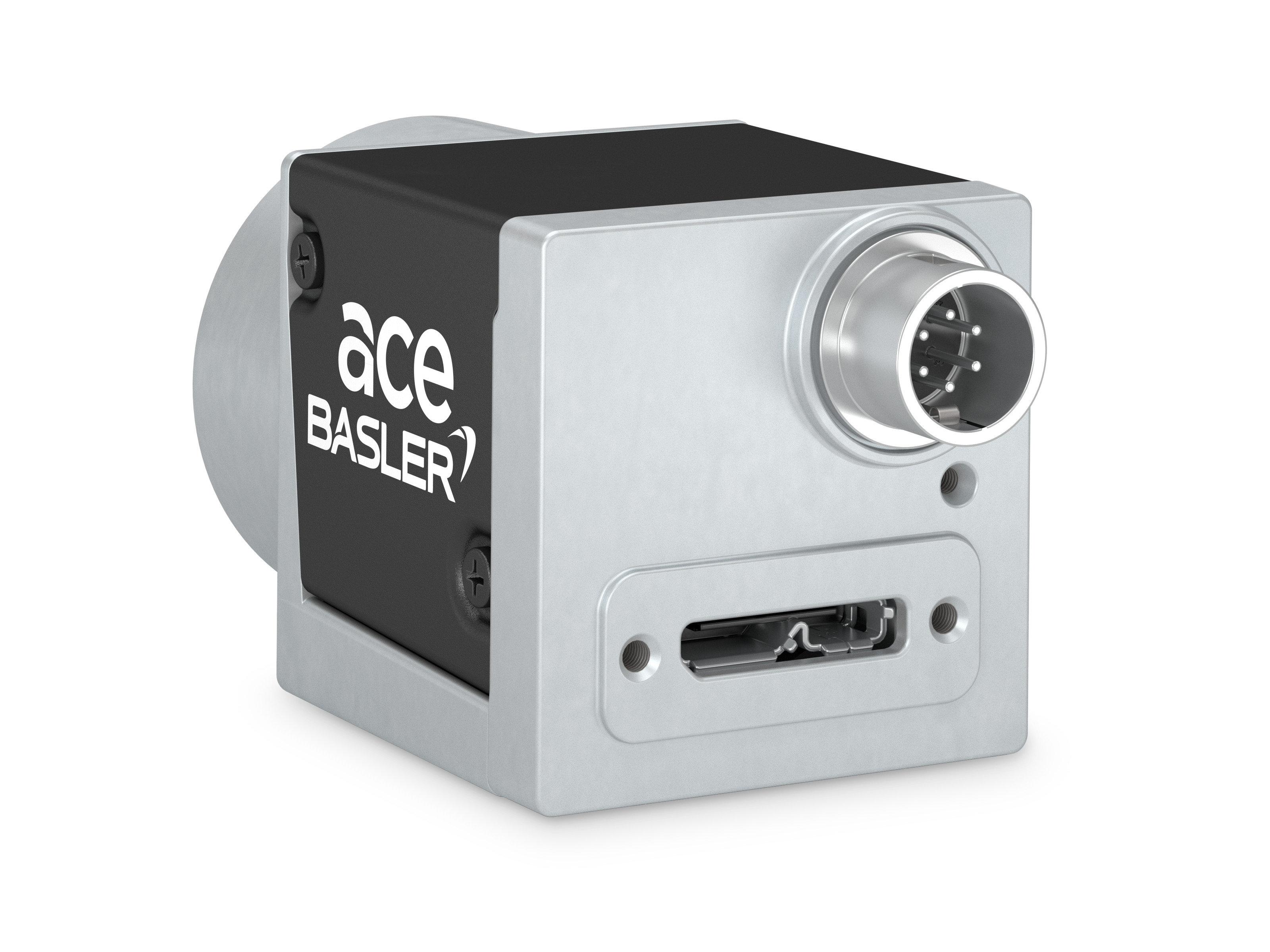

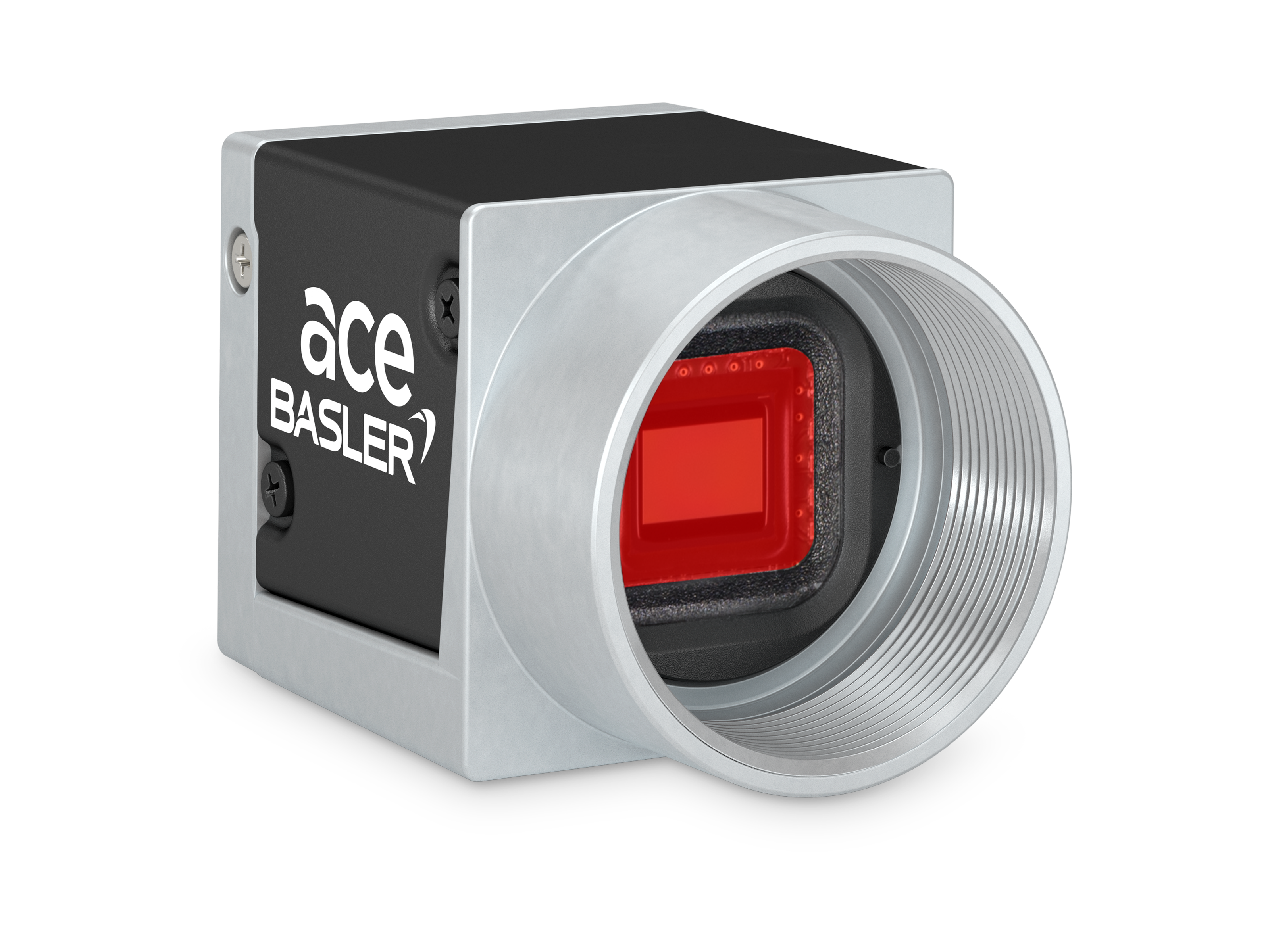

The Basler acA2440-35uc USB 3.0 camera with the Sony IMX264 CMOS sensor delivers 35 frames per second at 5.0 MP Resolution.

Recommended accessories

Data Cable

- select -

Cable GigE, Cat 6, RJ45 sl hor/RJ45, DrC, P, 5 m +€59.00

Cable GigE Cat 6, S/FTP, 2xRJ-45, 5 m +€7.00

Cable GigE, Cat6a, RJ45 sl hor/RJ45, S, 5 m +€19.00

I/O Cables

- select -

Power-I/O Cable, M8 6p/open, P, 5 m +€29.20

Power Supply

- select -

Power Supply for Camera 18.0W, M8 6-pin +€47.30

PoE Single Port Injector POE29-1AT6 +€35.50

Cooling & Mounting

- select -

Heat sink for ace 2 and racer 2 S +€9.00

Compressed Air Cooler ace 2 / racer 2 S +€69.00

Tripod Mount ace 2 and racer 2 S +€15.00

Suitable Products

Recommended software

pylon vTools for image processing
Design robust image processing software for quality assurance and tracking. Functions such as blob analysis, matching, and code reader can be combined using drag-and-drop design and flexibly integrated into the target application.
pylon Software for image acquisition
pylon offers certified drivers for many camera interfaces, as well as simple programming interfaces and practical tools for camera setup.

All Basler ace Models

Haven't found the right model? See the product list for an overview of all ace models. Find the right product for your application: filter by sensor, resolution, frame rate, and more.

To the ace product table

Manufacturer	Basler
Order Number	107209
Product Family	ace U
Product Line	ace U
Camera Series	Basler ace
Camera Category	Area Scan Camera
Warranty	36 Months

Sensor Vendor	Sony
Sensor	IMX264
Shutter	Global Shutter
Sensor Format	2/3"
Sensor Diagonal	11.02 mm
Sensor Type	CMOS
Sensor Size	8.45 mm × 7.07 mm
Resolution (H x V)	2448 px × 2048 px
Resolution	5 MP
Pixel Size (H x V)	3.45 μm × 3.45 μm
Frame rate	35 fpsCalculate individual frame rate
Mono/Color	Color
Spectrum	Visible

Interface	USB 3.0
Image Data Interface	USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)
Pixel Bit Depth	10 bits 12 bits
Exposure Control	hardware trigger programmable via the camera API
Digital Input	1
Power Supply	Via USB 3.0 interface
Power Requirements (typical)	2.7 W

Housing Type	Box
Housing Size (L x W x H)	29.3 mm x 29 mm x 29 mm
Weight	80 g
Lens Mount	C-mount
Operating Temperature	0 °C - 50 °C

Auto Functions	Use the camera's auto functions to allow the camera to find the optimum settings for exposure time, gain, and white balance, for example. This simplifies camera integration into your application.
Presettings	Automate recurring steps in your application by using the camera's default settings and/or creating and saving your own presets.

Basler ace acA2440-35uc

General Information

Sensor

Camera Data

Housing

Manufacturer

Conformity

Documentation

Features

Easy Handling

Image Quality Optimization

Process Control

Speed Increase

Suitable Products

Recommended software

pylon vTools for image processing

pylon Software for image acquisition

All Basler ace Models

Product successfully added to cart

Color Creation	With this set of features, you can correct artifacts in color images without affecting the structures in the image.
Image Adjustment	Adjust pixel values losslessly with Black Level, Digital Shift, and other standard features.
PGI - Patented	Use the complete image enhancement package or choose from Denoising, Sharpness, Debayering, and Color-Anti-Aliasing to adjust the image quality.

Digital I/Os	Control the camera via trigger commands or use the camera to control components of your vision system, such as lighting or encoders.
Information Utilisation	Use additional information from Chunks and Events to optimize your automation.
Intelligent Light Control (SLP)	Control the lighting directly with the camera. By synchronizing the flash mode and adjusting the brightness levels, you can quickly achieve precise lighting conditions and shorten the development time of your application.
Sequencer	Program sequential processes in the camera to control image acquisition and pre-processing in real time.
