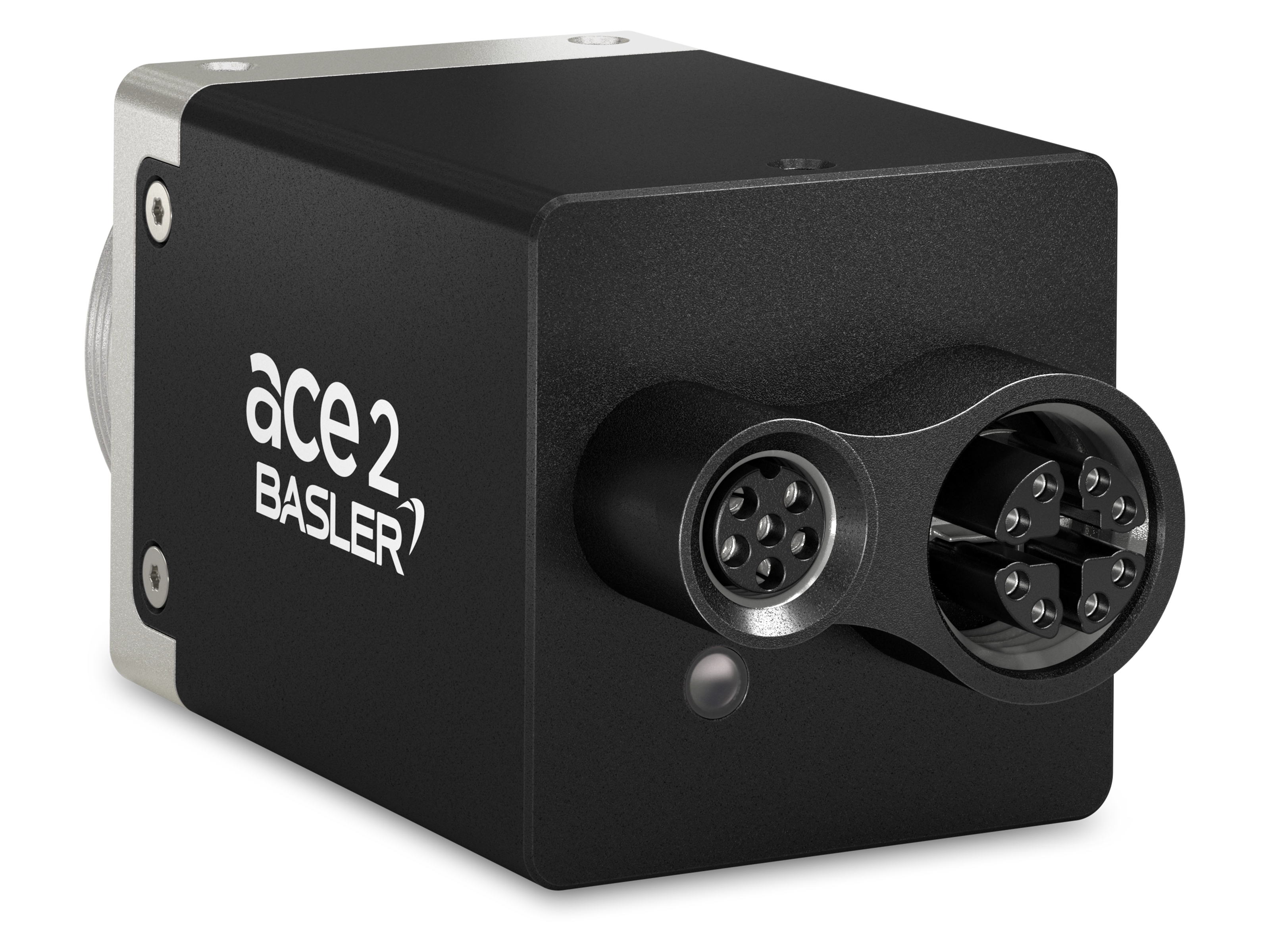

Basler ace 2 a2A4504-5gmIP67

  • IMX541 Sensor
  • 5 fps Frame rate
  • GigE Interface
  • 20.2 MP Resolution (MP)
  • 1.1" Sensor Format

The Basler a2A4504-5gmIP67 GigE camera with the Sony IMX541 CMOS sensor delivers 5 frames per second at 20.2 MP resolution.

The ace 2 IP67 camera models offer complete protection against dust and water in accordance with the IP65/67 standard with a mounted lens housing and cables.
Select your model

Select Mono/Color:

Recommended accessories
- select -
imaWorx CXP-12 Quad +€1,639.00
CXP-12 Interface Card 2C +€1,079.00
CXP-12 Interface Card 4C +€1,569.00
- select -
Cable CXP, Micro-BNC x2 (HD BNC), P, 10 m +€109.00
Cable CXP, Micro-BNC x2 (HD-BNC), DrC,5m +€116.00
Cable CXP, Micro-BNC x2 (HD BNC), P, 5 m +€79.00
Cable CXP, Micro-BNC x2 (HD BNC), P, 3 m +€69.00
- select -
Power-I/O Cable, M8 6p/open, P, 5 m +€29.20
- select -
Power Supply for Camera 18.0W, M8 6-pin +€47.30
- select -
Heat sink for Basler boost R cameras +€14.00
IP67 lighting from Basler ensures homogeneous illumination under demanding environmental conditions with dust and water

IP67 lighting

Dust and water protection is also important for the lighting. Ensure high image quality under demanding conditions with homogeneous lighting.

  • IP67 protection with mounted cable

  • Ring and bar lighting in various sizes

  • LED lighting in the colors white, blue, red, and infrared

  • Flexible handling in continuous or trigger mode without external lighting controller

  • Optional: combine with Basler Lighting Controller (SLP Controller) for simple lighting control

Select IP67 lighting
Show suitable products

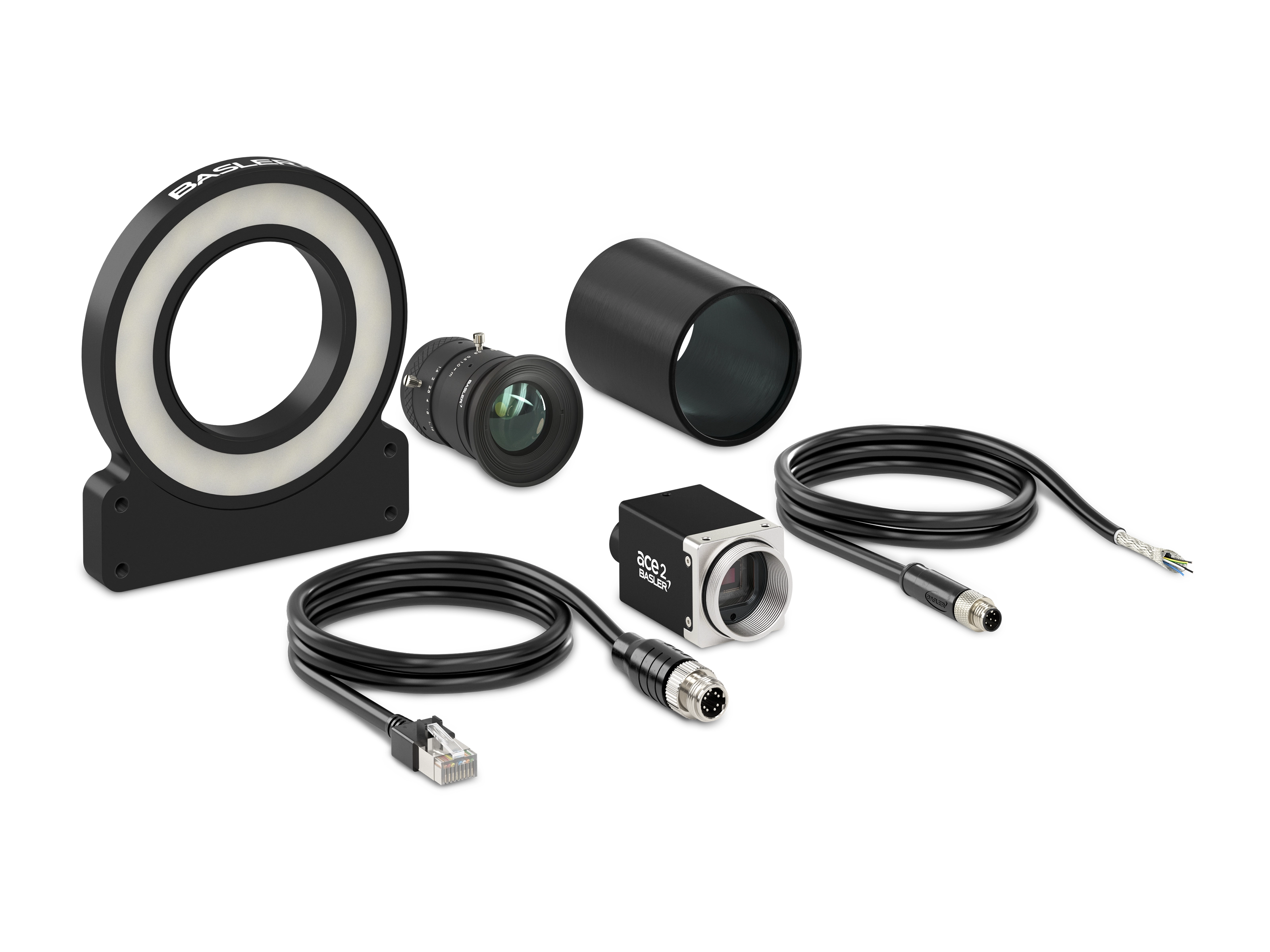

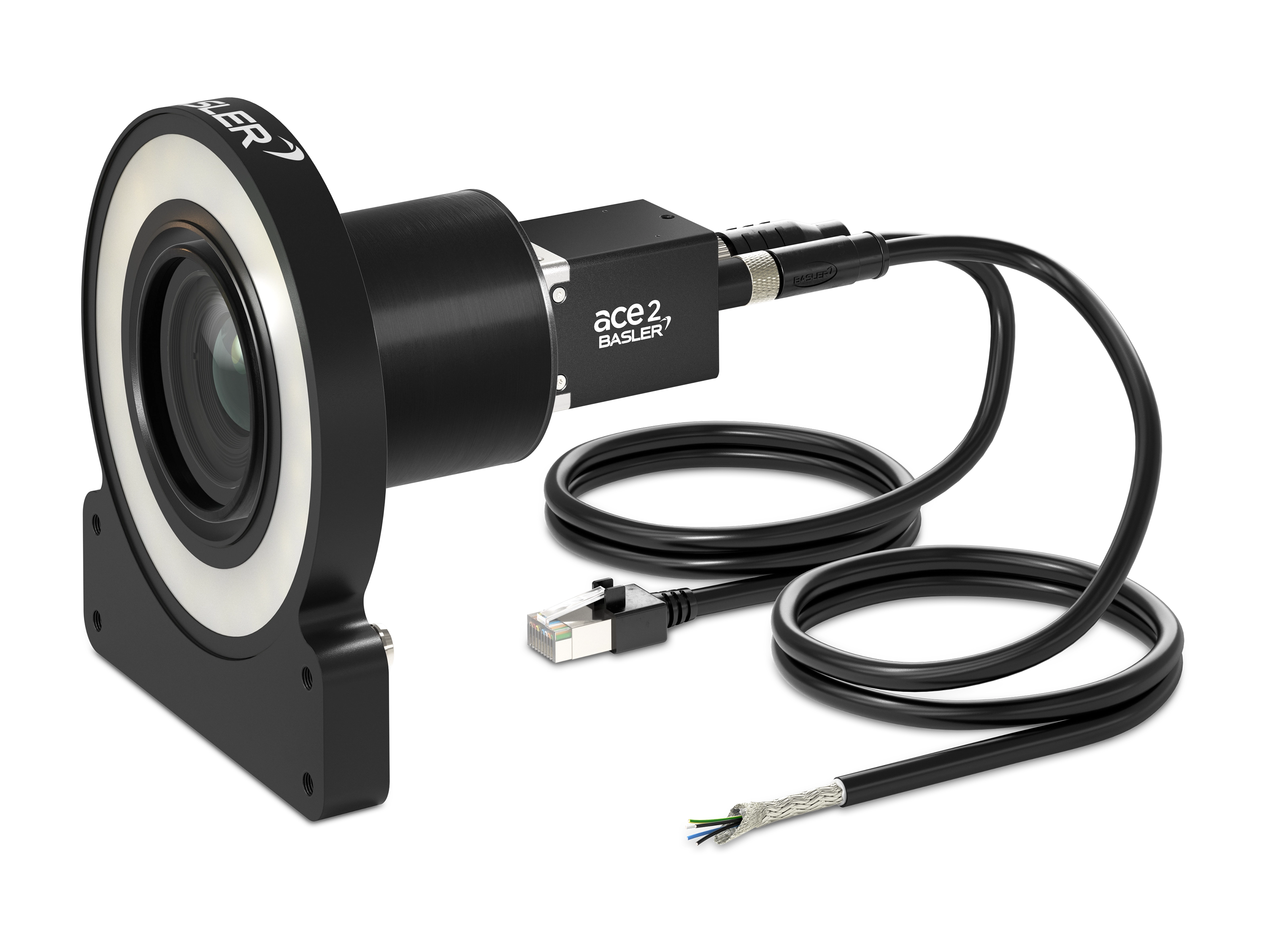

Setup of a Basler IP67 vision system

A vision system that reliably acquires images in dusty and wet conditions consists of several components. The two videos show you how to assemble all system components, from the IP67 camera to the cable.

Suitable Products

Recommended software

  • Basler pylon vTools

    pylon vTools for image processing

    Design robust image processing software for quality assurance and tracking. Functions such as blob analysis, matching, and code reader can be combined using drag-and-drop design and flexibly integrated into the target application.

Basler ace 2

All Basler ace 2 Models

Haven't found the right model? See the product list for an overview of all ace 2 models. Find the right product for your application: filter by sensor, resolution, frame rate, and more.


To the ace 2 product table
