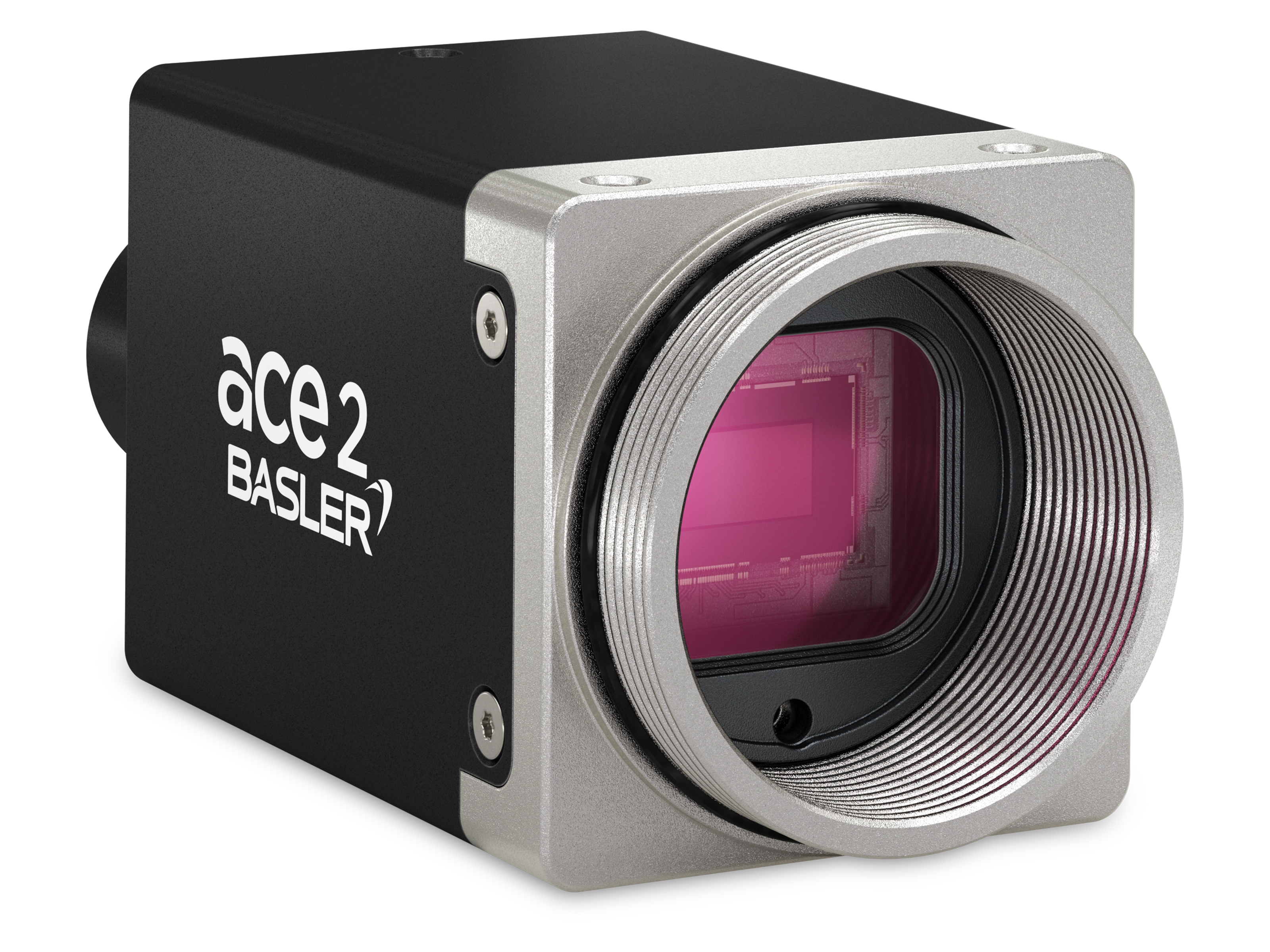

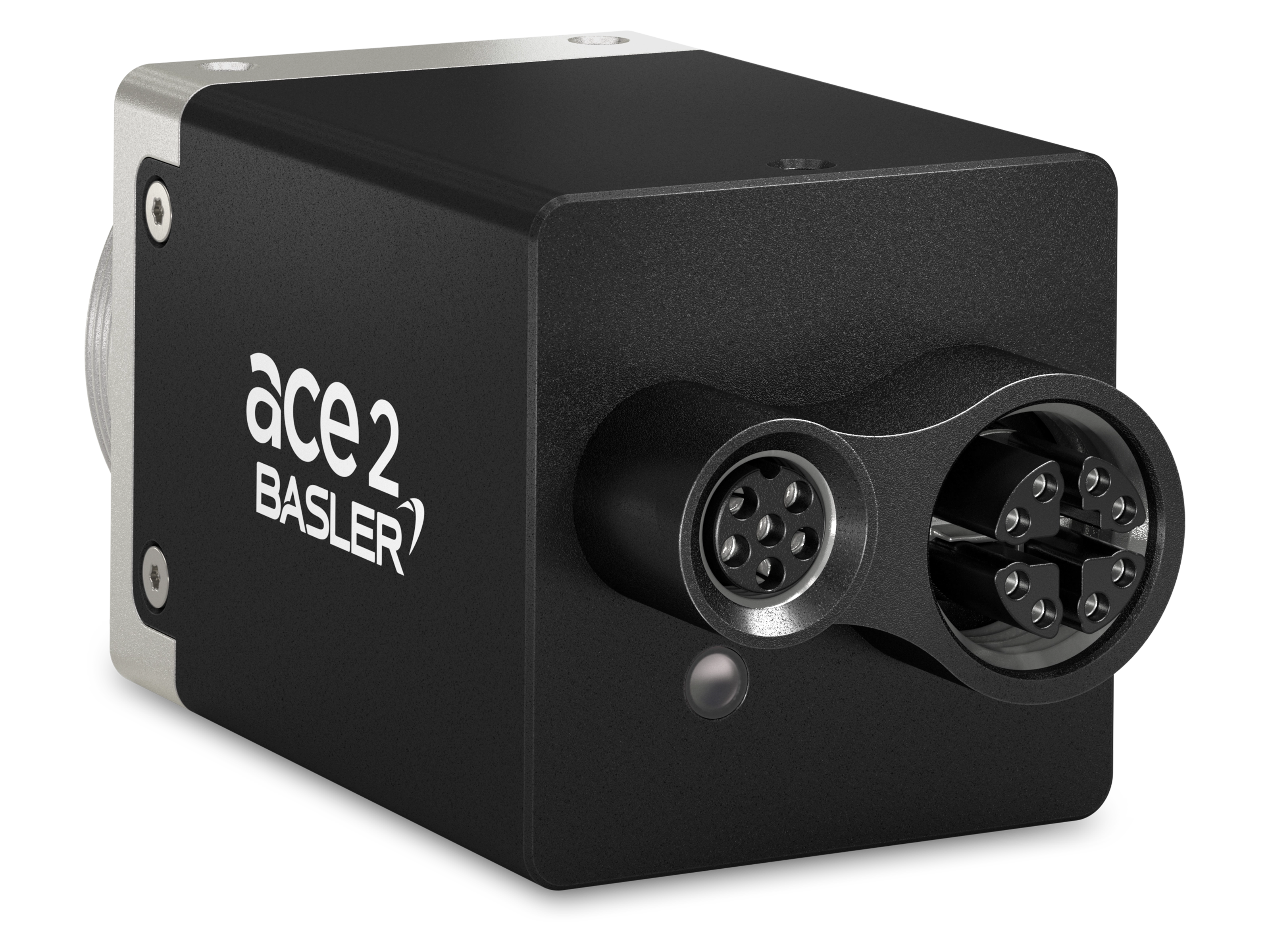

Basler ace 2 a2A4504-5gcIP67

IMX541 Sensor
5 fps Frame rate
GigE Interface
20.2 MP Resolution (MP)
1.1" Sensor Format

The Basler a2A4504-5gcIP67 GigE camera with the Sony IMX541 CMOS sensor delivers 5 frames per second at 20.2 MP resolution.

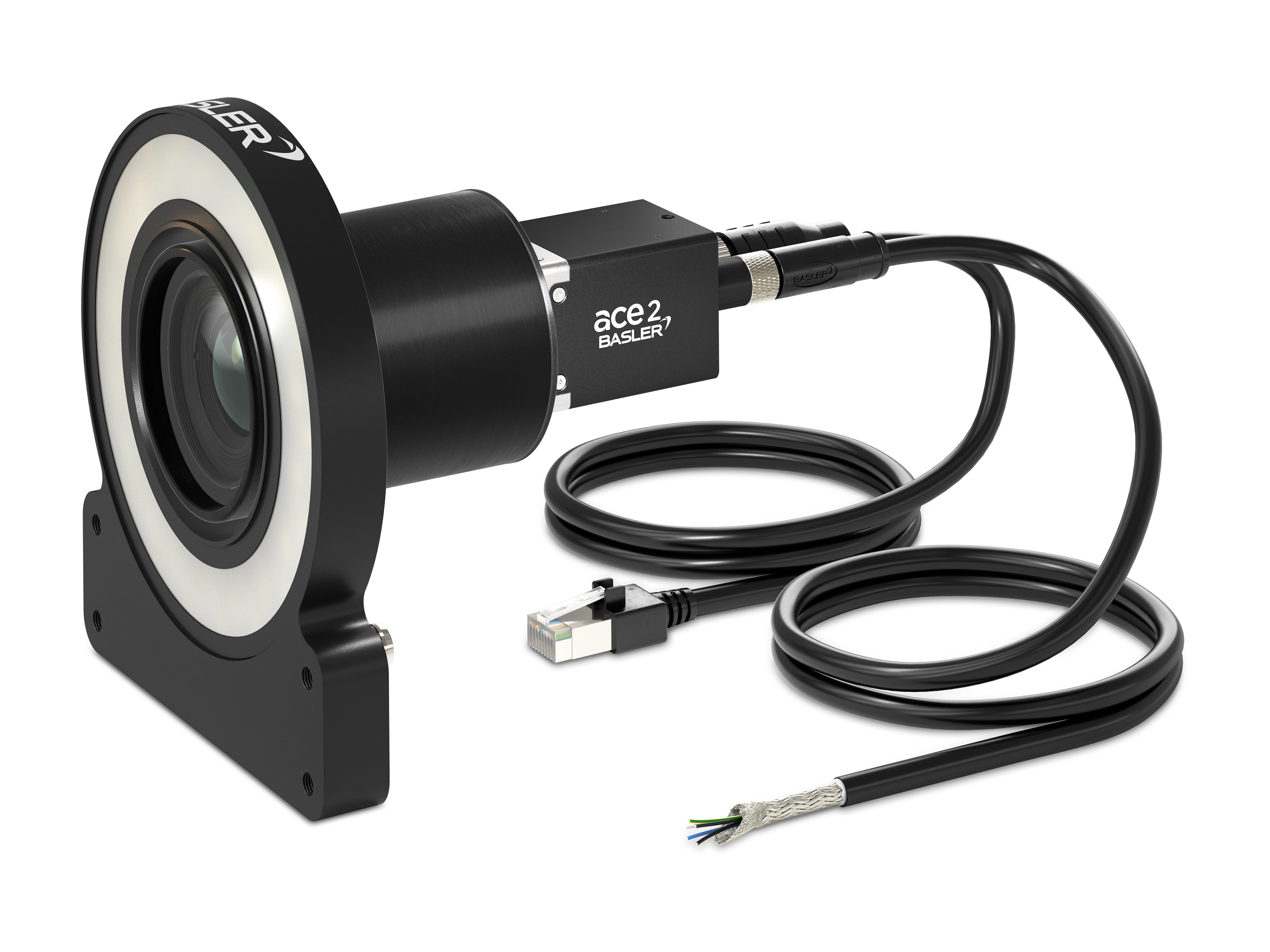

The ace 2 IP67 camera models offer complete protection against dust and water in accordance with the IP67 standard with a mounted lens housing and cables.

Select your model

Select Mono/Color:

Recommended accessories

Lens

Please select

Basler Lens C11-2520-12M f25mm +€259.00

Basler Lens C11-1620-12M f16mm +€259.00

Basler Lens C12-2524-25M +€299.00

Basler Lens C12-1624-25M +€299.00

Lens Housing

Please select

Lens housing 80mm +€109.00

Lens housing 70mm +€109.00

Lens housing 60mm +€109.00

Lens housing 50mm +€109.00

Adapter Ring

Please select

M28 to M50 Adapter Ring +€23.00

Data Cable

Please select

Cable GigE, Cat 6, M12/RJ45, DrC, 25m +€229.00

Cable GigE, Cat 6, M12/RJ45, DrC, 20m +€189.00

Cable GigE, Cat 6, M12/RJ45, DrC, 10m +€119.00

Cable GigE, Cat 6, M12/RJ45, DrC, 5m +€89.00

Cable GigE, Cat 6, M12/RJ45, DrC, 15m +€149.00

I/O Cable

Please select

Power-I/O Cable, M8 6p/open, P, 5 m +€29.20

Power-I/O Cable, M8 6p/open, P, 10 m +€42.10

Power-I/O Cable RS-422 M8 6p/open, 10m +€119.00

Quantity

IP67 lighting

Dust and water protection is also important for the lighting. Ensure high image quality under demanding conditions with homogeneous lighting.

IP67 protection with mounted cable
Ring and bar lighting in various sizes
LED lighting in the colors white, blue, red, and infrared
Flexible handling in continuous or trigger mode without external lighting controller
Optional: combine with Basler Lighting Controller (SLP Controller) for simple lighting control

Select IP67 lighting

Show suitable products

Suitable Products

Recommended software

pylon vTools for image processing
Design robust image processing software for quality assurance and tracking. Functions such as blob analysis, matching, and code reader can be combined using drag-and-drop design and flexibly integrated into the target application.
pylon Software for image acquisition
pylon offers certified drivers for many camera interfaces, as well as simple programming interfaces and practical tools for camera setup.

All Basler ace 2 Models

Haven't found the right model? See the product list for an overview of all ace 2 models. Find the right product for your application: filter by sensor, resolution, frame rate, and more.

To the ace 2 product table

Net list price	€1,919.00
Ready for dispatch	Standardon request

Series Production	08/2025
Manufacturer	Basler
Order Number	109651
Product Family	ace 2 R
Product Line	ace 2 R with IP67
Camera Series	Basler ace 2
Camera Category	Area Scan Camera
Warranty	36 Months

Sensor Vendor	Sony
Sensor	IMX541
Shutter	Global Shutter
Sensor Format	1.1"
Sensor Diagonal	17.45 mm
Sensor Type	CMOS
Sensor Size	12.34 mm × 12.34 mm
Resolution (H x V)	4504 px × 4504 px
Resolution	20.2 MP
Pixel Size (H x V)	2.74 μm × 2.74 μm
Frame rate	5 fps
Mono/Color	Color
Spectrum	Visible

Interface	GigE
Image Data Interface	Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s)
Pixel Bit Depth	8 bits 10 bits 12 bits
Exposure Control	hardware trigger programmable via the camera API
Digital Input	1
General Purpose I/O	2
Power Supply	PoE or 12-24 VDC
Power Requirements (typical)	3.2 W

Housing Type	Box
Protection Class	IP67 (with lens housing and cable)
Housing Size (L x W x H)	55.5 mm x 31 mm x 31 mm
Weight	72 g
Lens Mount	C-mount
Operating Temperature	-10 °C - 60 °C

Basler ace 2 a2A4504-5gcIP67

Select Mono/Color:

IP67 lighting

General Information

Sensor

Camera Data

Housing

Manufacturer

Conformity

Features & Documentation

Easy Handling

Image Quality Optimization

Process Control

Speed Increase

Recommended software

pylon 25.06

Suitable Products

Recommended software

pylon vTools for image processing

pylon Software for image acquisition

All Basler ace 2 Models

Auto Functions	Use the camera's auto functions to allow the camera to find the optimum settings for exposure time, gain, and white balance, for example. This simplifies camera integration into your application.
Presettings	Automate recurring steps in your application by using the camera's default settings and/or creating and saving your own presets.

Color Creation	With this set of features, you can correct artifacts in color images without affecting the structures in the image.
Image Adjustment	Adjust pixel values losslessly with Black Level, Digital Shift, and other standard features.
Improvement of Image Quality	Reduce image artifacts caused by environmental influences. Correct individual pixel errors using Defect Pixel Correction.

Burst Mode	Acquire a sequence of images after triggering once and output them as required. In High-Speed Burst Mode, you can temporarily bypass the data limitation of GigE.
Digital I/Os	Control the camera via trigger commands or use the camera to control components of your vision system, such as lighting or encoders.
Information Utilisation	Use additional information from Chunks and Events to optimize your automation.
Intelligent Light Control (SLP)	Control the lighting directly with the camera. By synchronizing the flash mode and adjusting the brightness levels, you can quickly achieve precise lighting conditions and shorten the development time of your application.
Timing	Control the start and end of an exposure individually. Add delays or synchronize multiple cameras in a GigE network using PTP.
