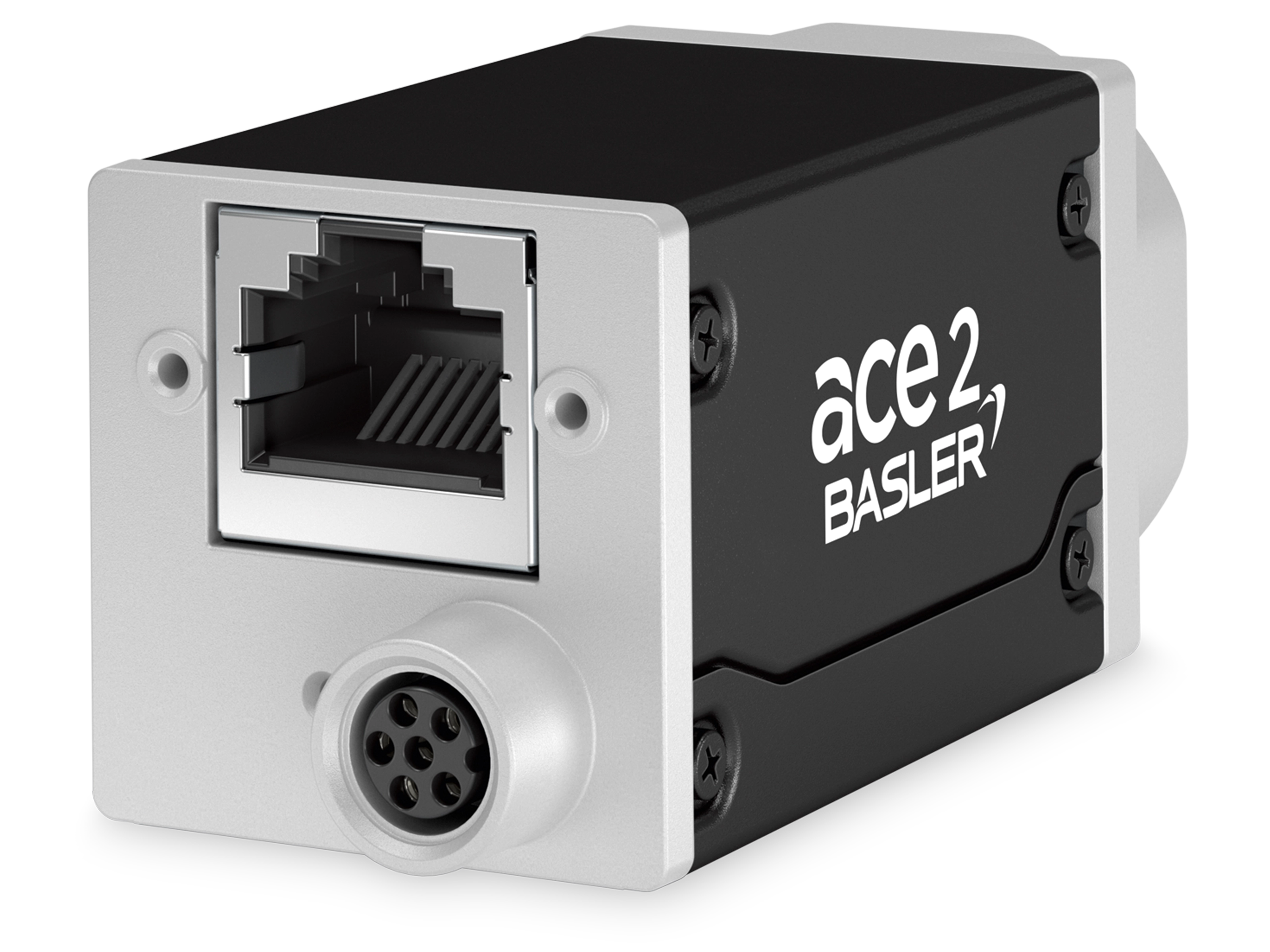

Basler ace 2 X a2A2560-20gmSWIR
- IMX992 Sensor
- 20 fps Frame rate
- 5.2 MP Resolution
- GigE Interface
- 1/1,4'' Sensor Format
The Basler a2A2560-20gmSWIR GigE camera with the Sony IMX992 InGaAs sensor delivers 22 images per second at 5.3 MP resolution. The camera generates images in the wavelength range from 0.4 µm to 1.7 µm.
General Information
| Series Production | now |
|---|---|
| Order Number | 109371 |
| Product Family | ace 2 X |
| Camera Category | Area Scan Camera |
Sensor
| Sensor Vendor | Sony |
|---|---|
| Sensor | IMX992 |
| Shutter | Global Shutter |
| Sensor Format | 1/1,4'' |
| Sensor Diagonal | 11.4 mm |
| Sensor Type | InGaAs |
| Sensor Size | 8.8 mm × 7.1 mm |
| Resolution (H x V) | 2560 px × 2048 px |
| Resolution | 5.2 MP |
| Pixel Size (H x V) | 3.45 μm × 3.45 μm |
| Frame rate | 20 fpsCalculate individual frame rate |
| Mono/Color | Mono |
| Spectrum | Visible + SWIR |
Camera Data
| Interface | GigE |
|---|---|
| Image Data Interface | Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s) |
| Pixel Bit Depth |
|
| Synchronization |
|
| Exposure Control |
|
| Digital Input | 1 |
| General Purpose I/O | 2 |
| Power Supply | PoE or 12-24 VDC |
| Power Requirements (typical) | 3.5 W |
| Power Consumption PoE | 4.4 W |
Housing
| Housing Type | Box |
|---|---|
| Housing Size (L x W x H) | 55.5 mm x 29 mm x 29 mm |
| Weight | 100 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 °C - 50 °C |
Technical Drawing
Manufacturer
| Basler |
|---|
Conformity
- CE (incl. RoHS)
- EAC
- FCC
- GenICam
- GigE Vision 2.0
- IP30
- KC
- RoHS
- UL
Features & Documentation
For more information about the features, visit the Documentation
