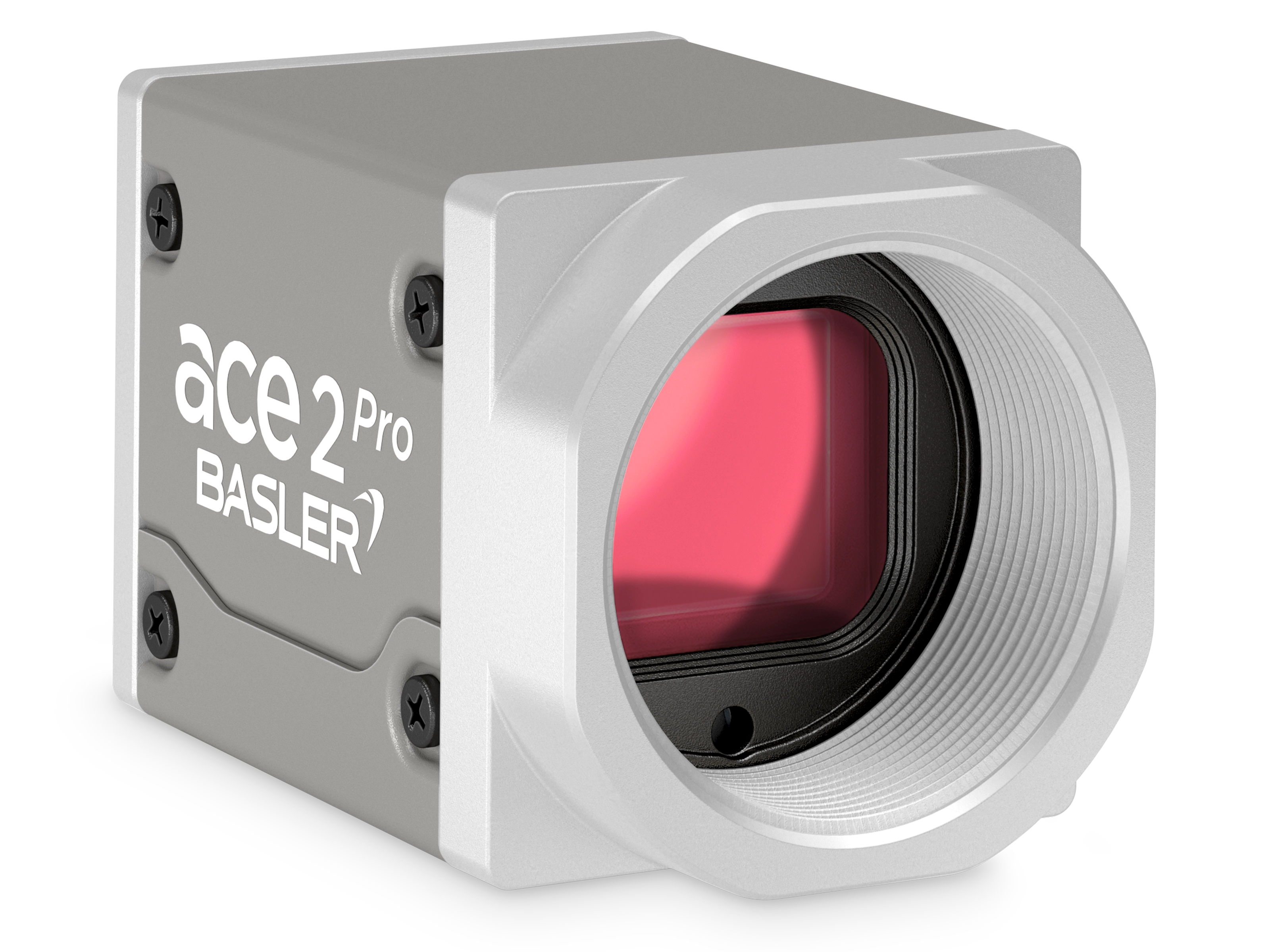

Basler ace 2 a2A2464-77ucPRO

OG05C Sensor
77 fps Frame rate
5 MP Resolution (MP)
USB 3.0 Interface
2/3" Sensor Format

The Basler a2A2464-77ucPRO USB camera with the OmniVision OG05C NIR-enhanced global shutter sensor delivers 77 fps (frames per second) at 5 MP resolution.

Select your model

Select Product Line:

Select Interface:

Select Mono/Color:

Recommended accessories

Lens

Show suitable products

Suitable Products

Recommended software

pylon vTools for image processing
Design robust image processing software for quality assurance and tracking. Functions such as blob analysis, matching, and code reader can be combined using drag-and-drop design and flexibly integrated into the target application.
pylon Software for image acquisition
pylon offers certified drivers for many camera interfaces, as well as simple programming interfaces and practical tools for camera setup.

All Basler ace 2 Models

Haven't found the right model? See the product list for an overview of all ace 2 models. Find the right product for your application: filter by sensor, resolution, frame rate, and more.

To the ace 2 product table

Series Production	now
Manufacturer	Basler
Order Number	109779
Product Family	ace 2 R
Product Line	ace 2 R Pro
Camera Series	Basler ace 2
Camera Category	Area Scan Camera
Warranty	36 Months

Sensor Vendor	OmniVision
Sensor	OG05C
Shutter	Global Shutter
Sensor Format	2/3"
Sensor Diagonal	11.02 mm
Sensor Type	CMOS
Sensor Size	8.45 mm × 7.07 mm
Resolution (H x V)	2448 px × 2048 px
Pixel Size (H x V)	3.45 μm × 3.45 μm
Frame rate	77 fpsCalculate individual frame rate
Mono/Color	Color
Spectrum	Visible + NIR

Interface	USB 3.0

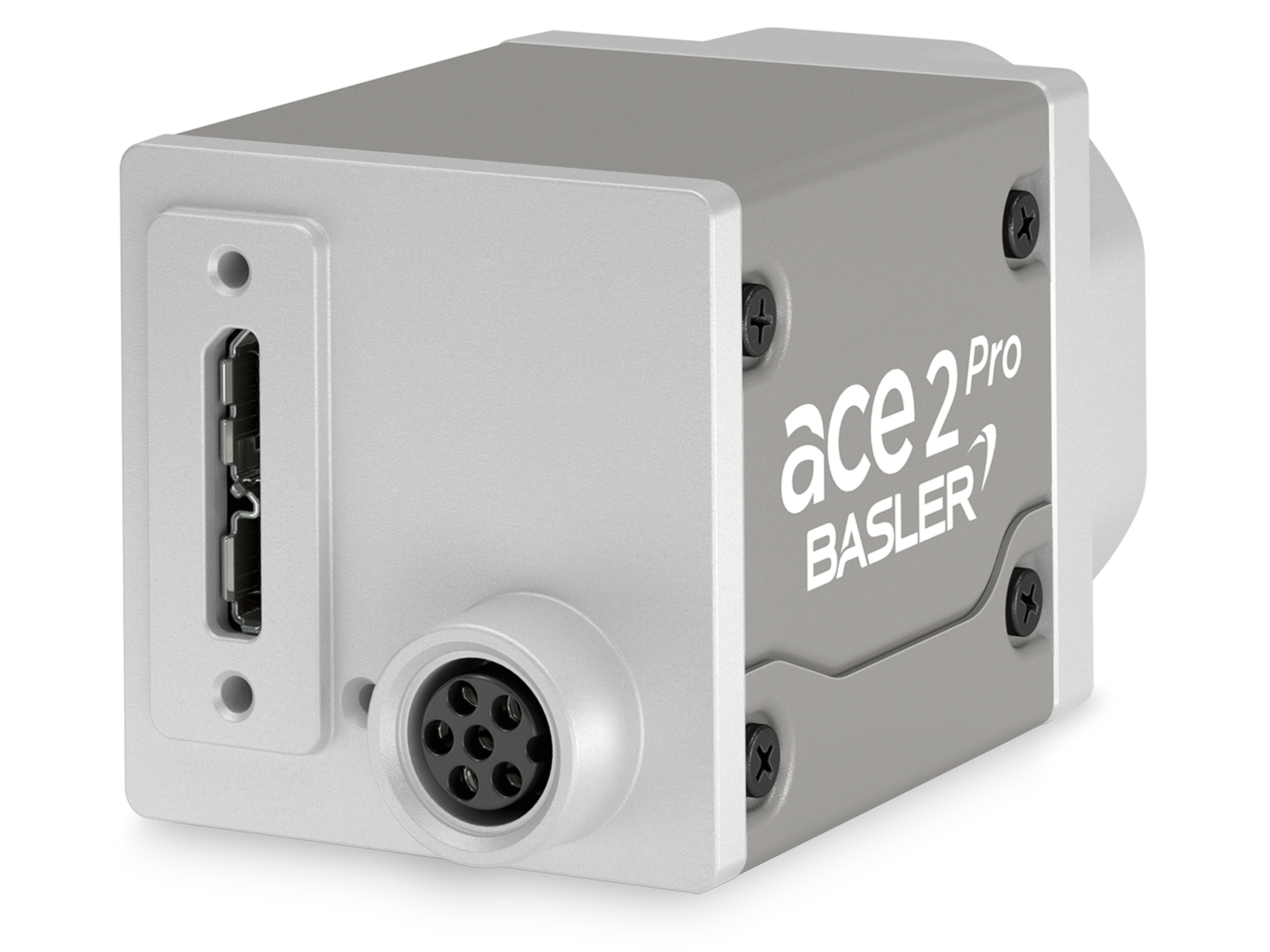

Camera Data Connector	USB 3.0 Type Micro B receptacle
Image Data Interface	USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)
Pixel Bit Depth	8 bits 10 bits 12 bits
Synchronization	free-run hardware trigger software trigger
Exposure Control	hardware trigger programmable via the camera API
Camera I/O Connector	M8 6-Pin receptacle
Digital Input	1
General Purpose I/O	2
Power Supply	Via USB 3.0 interface or 12-24 VDC
Power Requirements (typical)	3 W

Housing Type	Box
Protection Class	IP30
Housing Size (L x W x H)	42.8 mm x 29 mm x 29 mm
Weight	90 g
Lens Mount	C-mount
Operating Temperature	-10 °C - 50 °C

Auto Functions	Use the camera's auto functions to allow the camera to find the optimum settings for exposure time, gain, and white balance, for example. This simplifies camera integration into your application.
Presettings	Automate recurring steps in your application by using the camera's default settings and/or creating and saving your own presets.

Basler ace 2 a2A2464-77ucPRO

Select Product Line:

Select Interface:

Select Mono/Color:

General Information

Sensor

Camera Data

Housing

Technical Drawing

Manufacturer

Conformity

Documentation

Features

Easy Handling

Image Quality Optimization

Process Control

Speed Increase

Suitable Products

Recommended software

pylon vTools for image processing

pylon Software for image acquisition

All Basler ace 2 Models

Product successfully added to cart

Color Creation	With this set of features, you can correct artifacts in color images without affecting the structures in the image.
Image Adjustment	Adjust pixel values losslessly with Black Level, Digital Shift, and other standard features.
Improvement of Image Quality	Reduce image artifacts caused by environmental influences. Correct individual pixel errors using Defect Pixel Correction.
PGI - Patented	Use the complete image enhancement package or choose from Denoising, Sharpness, Debayering, and Color-Anti-Aliasing to adjust the image quality.

Burst Mode	Acquire a sequence of images after triggering once and output them as required. In High-Speed Burst Mode, you can temporarily bypass the data limitation of GigE.
Digital I/Os	Control the camera via trigger commands or use the camera to control components of your vision system, such as lighting or encoders.
Information Utilisation	Use additional information from Chunks and Events to optimize your automation.
Intelligent Light Control (SLP)	Control the lighting directly with the camera. By synchronizing the flash mode and adjusting the brightness levels, you can quickly achieve precise lighting conditions and shorten the development time of your application.
Sequencer	Program sequential processes in the camera to control image acquisition and pre-processing in real time.

Compression Beyond - Patented	Reduce the amount of image data transferred using our patented image compression algorithm and choose between 'lossless' and 'lossy'.
Data Reduction	Use the Binning, Decimation, or ROI features for customized data reduction.
Pixel Beyond - Patented	Use our patented Binning process to continuously adjust the sensor pixel to meet your needs. Reduce the amount of data or simulate the characteristics of another sensor.
