CXP-12 Interface Card 4C

CoaXPress (CXP-12) Interface
4 No. of Ports
12.5 Gbps; 50 Gbps Data Bandwidth (p.port; Total)

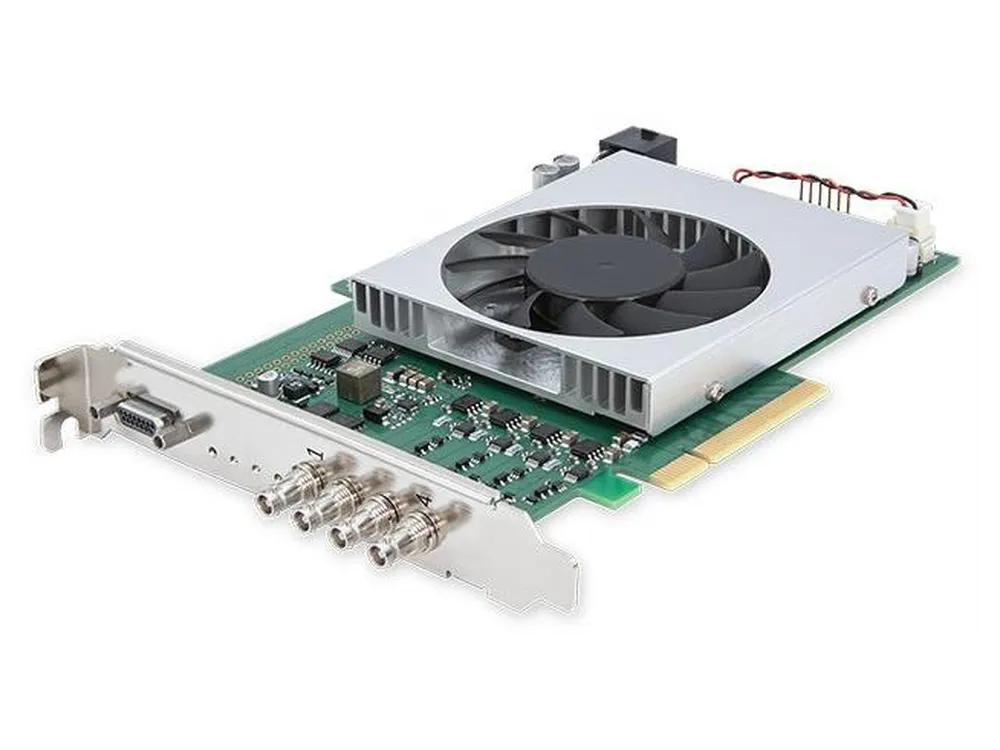

The Basler CXP-12 Interface Card 4C offers 4 channels with a maximum bandwidth of 12.5 Gbps per channel via Micro-BNC (HD BNC) connection.

The Basler CXP-12 Interface Card 4C enables the optimal integration of your Basler boost camera and is controlled by the pylon Camera Software Suite, just like the camera.

Suitable Products

Recommended software

pylon software for image acquisition

pylon offers certified drivers for many camera interfaces, simple programming interfaces, and practical tools for camera setup.

To the pylon Software

Order Number	2200000702
Manufacturer	Basler
Type	PC Card (CXP-12)
Product Series	CXP-12 Interface Cards
Product Type	Acquisition
Warranty	36 Months

Processor	Xilinx Ultrascale+ KU3P
On-Board Memory	1.5 GByte DDR4-RAM
I/O Module Interfaces (Trigger and Sync)	Front GPIO: up to 3 differential signals in, up to 4 single-ended signals in (depends on configuration), 2 TTL outputs
Power via Interface (p. port)	PoCXP (17W/24V per connector)
Acquisition Card Features	Flat Field Correction Digital Binning PGI Color Reconstruction

Standard	CoaXPress 2.0/2.1
Interface	CoaXPress (CXP-12)
Configurations	CXP-12; up to 4 cameras
Connectors	4 x Micro-BNC/HD-BNC
Cable Length	11 - 40 meters
Power output	17W/24VDC regulated power per CXP connector, device detection and short circuit protection
Camera Support	area scan camera line scan camera
Sensor Type	CFA sensor (Bayer) Grayscale sensor RGB sensor
Sensor Resolution	32k*64k (area scan sensor), 16k (line scan sensor)
Bit Depth	8-16-bit (grayscale) 24-48-bit (color)
Data Bandwidth	4 x 12.5 Gbit/s (1,560 MB/s)
Data Bandwidth (p.port; Total)	12.5 Gbps; 50 Gbps
No. of Ports	4

PC Bus Interface	PCIe 3.0 x8
PC Bus Interface Performance	7876 MB/s (theoretical), 6520 MB/s (typical/max.)

On-board Front GPIO Interface	3 differential input signals or 2 differential and 1 single-ended signal or 4 single-ended signals; 2 TTL output signals; configurable by software GPIOTool; max. voltage of the input signals between 4,5V and 25V
GPIO Interface Summary	4 in/2 out (max.), TTL or opto-coupled; differential or single-ended signals (configuration dependent)

CXP-12 Interface Card 4C

General Information

Device Features

Camera Interface

Host PC Interface

Controls and General-Purpose I/Os

Processing Features

Physical and Environmental Information

Software

Manufacturer

Conformity

Documentation

Features

Easy Handling

Image Quality Optimization

Process Control

Speed Increase

Suitable Products

Recommended software

pylon software for image acquisition

Product successfully added to cart

Dimensions	PCIe Standard height, half length card: 167.64 mm length x 111.15 mm height
Weight	267 g
Power Consumption / Power Source	Typ. 13,4W@12V, excluding camera and I/O power output
Operating Temperature	0 - 50 °C (32 - 122 °F)
Storage Temperature	-50 - 80 °C (-58 °F - 176 °F)
Relative Humidity (operating, storage)	5 - 90 % non-condensing (operating), 0 - 95 % (storage)
MTBF	48.475 h

Software Drivers	Linux 64-Bit Windows 11 / 10 (64-Bit)
Software Tools	Device Drivers Documentation pylon Software Suite
Software API	Framegrabber SDK GenTL pylon SDKs
MV Software Compatibility	GenTL-based MV-Software pylon Software Suite

Image Selector	Use a module to select the images you want to keep, process, or forward.
Mirroring	Mirror the images in different directions to achieve your ideal hardware setup.
Tap Geometry Sorting	Reassign the sensor areas of the camera to obtain an evaluable image flow.

Flat Field Correction (FFC)	Ensure image homogeneity by correcting sensitivity variations, lens shading, or lighting artifacts. FFC sets allow accurate imaging under different and changing conditions. This feature is part of the Enhanced Applets.
PGI Color Reconstruction	With the PGI feature set of up to four image optimization processes, you can improve the quality of your images and adapt them to the needs of human vision. This feature is part of the Enhanced Applets.
White Balancing	Match the color values of your images to the system environment to achieve a more realistic representation.

Digital Binning	Use the binning method to adjust the sensor pixels to meet your requirements by choosing from a selection of fixed values. Reduce the amount of data or increase the brightness values of the image. This feature is part of the Enhanced Applets.
ROI	Limit the image flow to relevant sensor areas to ensure efficient image processing.
