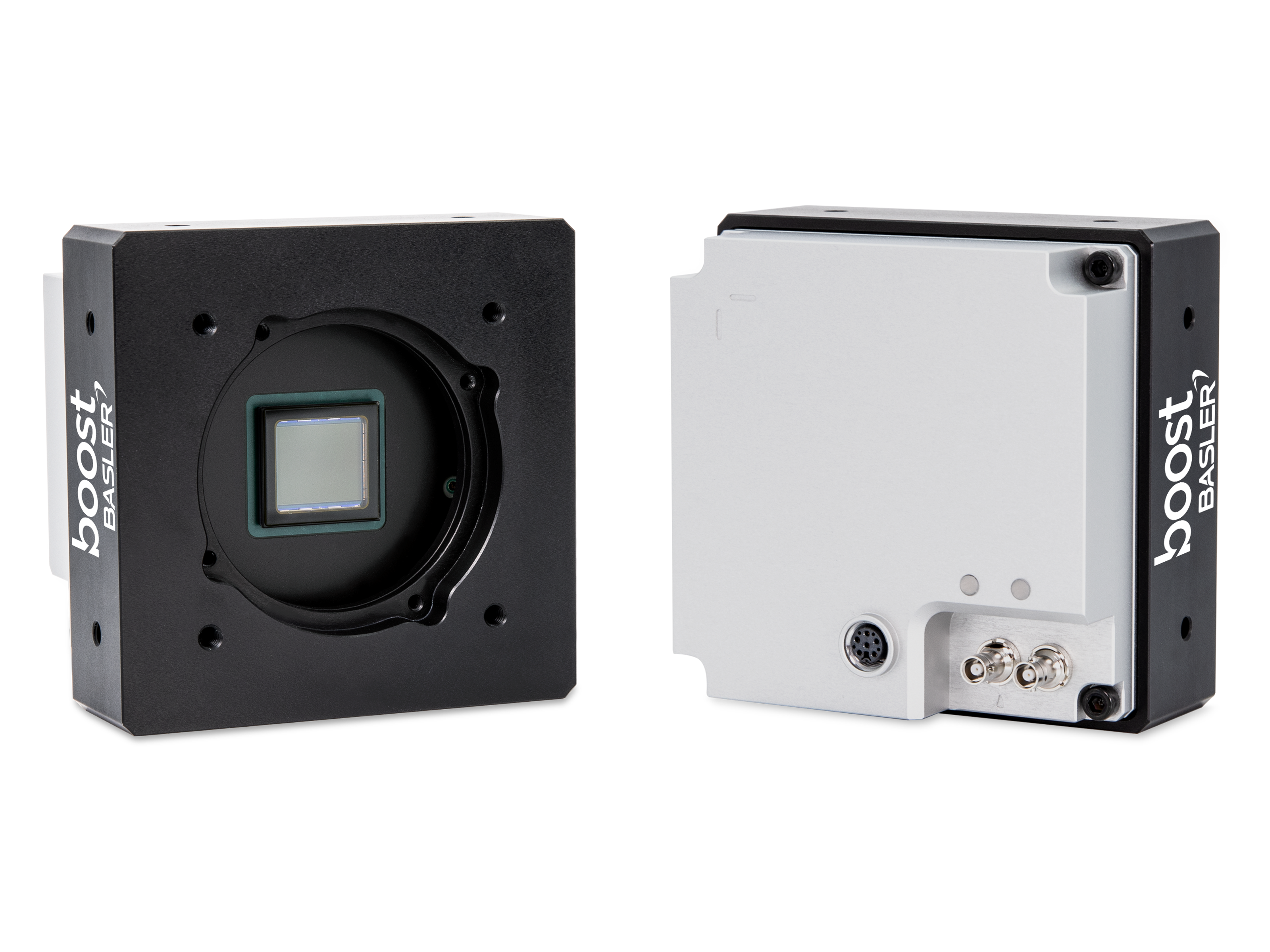

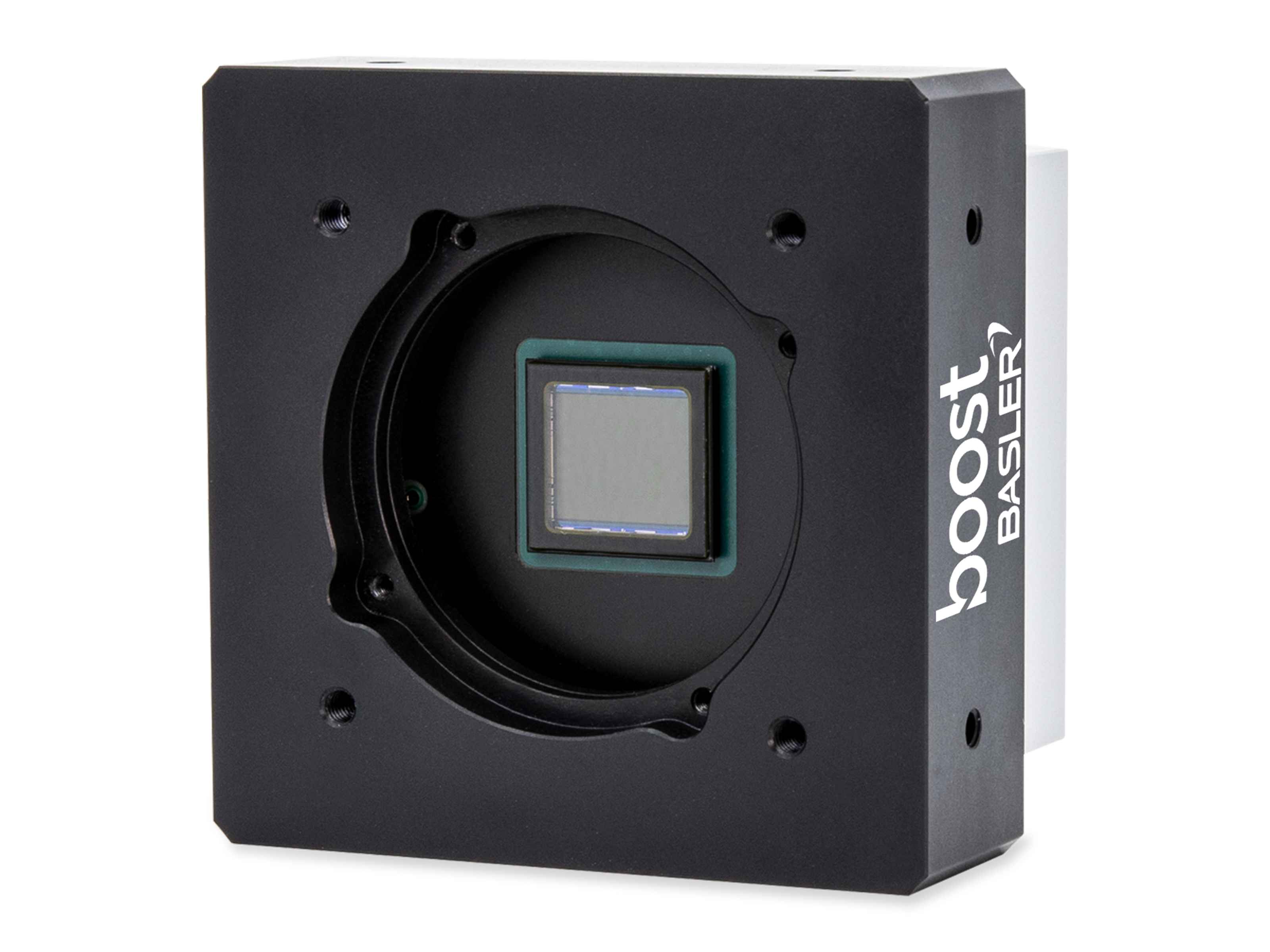

Basler boost boA5320-150cm

IMX532 Sensor
150 fps Frame rate
CoaXPress (CXP-12) Interface
16.1 MP Resolution (MP)
1.1" Sensor Format

The Basler CoaXPress 2.0 boA5320-150cm camera with the Sony IMX532 CMOS sensor delivers 150 frames per second with a 16 MP resolution.

Recommended accessories

Datenkabel

- auswählen -

Cable USB 3.0, Micro B sl/A, P, 3 m +€30.00

Cable USB 3.0, Micro B sl/A, S, 3 m +€20.00

Cable USB 3.0, Micro B 90° A1 sl/A (ace downwards), P, 3 m +€35.00

Cable USB 3.0, Micro B sl / A, DrC, 5 m +€76.10

I/O-Kabel

- auswählen -

Power-I/O Cable, M8 6p/open, P, 5 m +€29.20

Kühlung & Halterung

- auswählen -

Heat sink for ace 2 and racer 2 S +€9.00

Compressed Air Cooler ace 2 / racer 2 S +€69.00

Tripod Mount ace 2 and racer 2 S +€15.00

Quantity

Suitable Products

Recommended software

pylon vTools for image processing
Design robust image processing software for quality assurance and tracking. Functions such as blob analysis, matching, and code reader can be combined using drag-and-drop design and flexibly integrated into the target application.
pylon Software for image acquisition
pylon offers certified drivers for many camera interfaces, as well as simple programming interfaces and practical tools for camera setup.

Net list price	€2,889.00
Ready for dispatch	Standardapprox. 4 weeks

Manufacturer	Basler
Order Number	108380
Product Family	boost R
Camera Series	Basler boost
Camera Category	Area Scan Camera
Warranty	36 Months

Sensor Vendor	Sony
Sensor	IMX532
Shutter	Global Shutter
Sensor Format	1.1"
Sensor Type	CMOS
Sensor Size	14.6 mm × 8.3 mm
Resolution (H x V)	5320 px × 3032 px
Resolution	16.1 MP
Pixel Size (H x V)	2.74 μm × 2.74 μm
Frame rate	150 fpsCalculate individual frame rate
Mono/Color	Mono
Spectrum	Visible

Quantum Efficiency (typical/minimal)	65.3 % (typical)
Dark Noise (typical/maximal)	39.8 e¯ (typical)
Saturation Capacity (typical/minimal)	9.5 ke¯ (typical)
Dynamic Range (typical/minimal)	70.6 dB (typical)
Signal-to-Noise Ratio (typical/minimal)	39.8 dB (typical)

Interface	CoaXPress (CXP-12)
Image Data Interface	CoaXPress (2.5–12.5 Gbps)
Pixel Bit Depth	8 bits 10 bits 12 bits
Digital Input	1
General Purpose I/O	2
Power Requirements (typical)	10.4 W

Basler boost boA5320-150cm

General Information

Sensor

EMVA Data

Camera Data

Housing

Technical Drawing

Manufacturer

Conformity

Documentation

Features & Documentation

Easy Handling

Image Quality Optimization

Process Control

Speed Increase

Suitable Products

Recommended software

pylon vTools for image processing

pylon Software for image acquisition

Housing Type	Box
Housing Size (L x W x H)	45 mm x 80 mm x 80 mm
Weight	525 g
Lens Mount	C-mount F-mount M42 x 0.75 M42 x 1
Operating Temperature	max 50 °C

Image Adjustment	Adjust pixel values losslessly with Black Level, Digital Shift, and other standard features.
Vignetting Correction	Correct lens shading artifacts that occur in acquired images.

Burst Mode	Acquire a sequence of images after triggering once and output them as required. In High-Speed Burst Mode, you can temporarily bypass the data limitation of GigE.
Information Utilisation	Use additional information from Chunks and Events to optimize your automation.
Intelligent Light Control (SLP)	Control the lighting directly with the camera. By synchronizing the flash mode and adjusting the brightness levels, you can quickly achieve precise lighting conditions and shorten the development time of your application.
Sequencer	Program sequential processes in the camera to control image acquisition and pre-processing in real time.
Timing	Control the start and end of an exposure individually. Add delays or synchronize multiple cameras in a GigE network using PTP.
