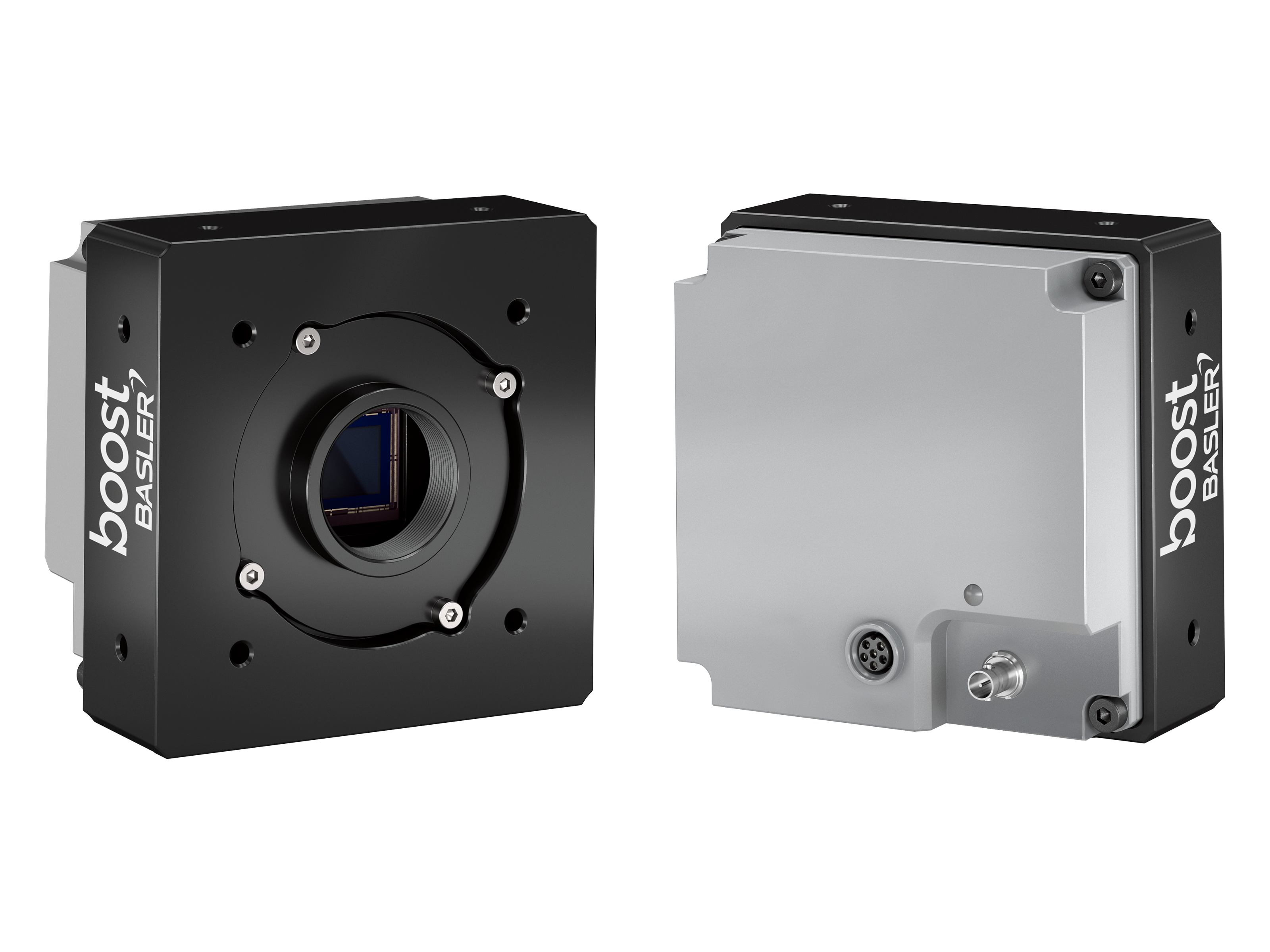

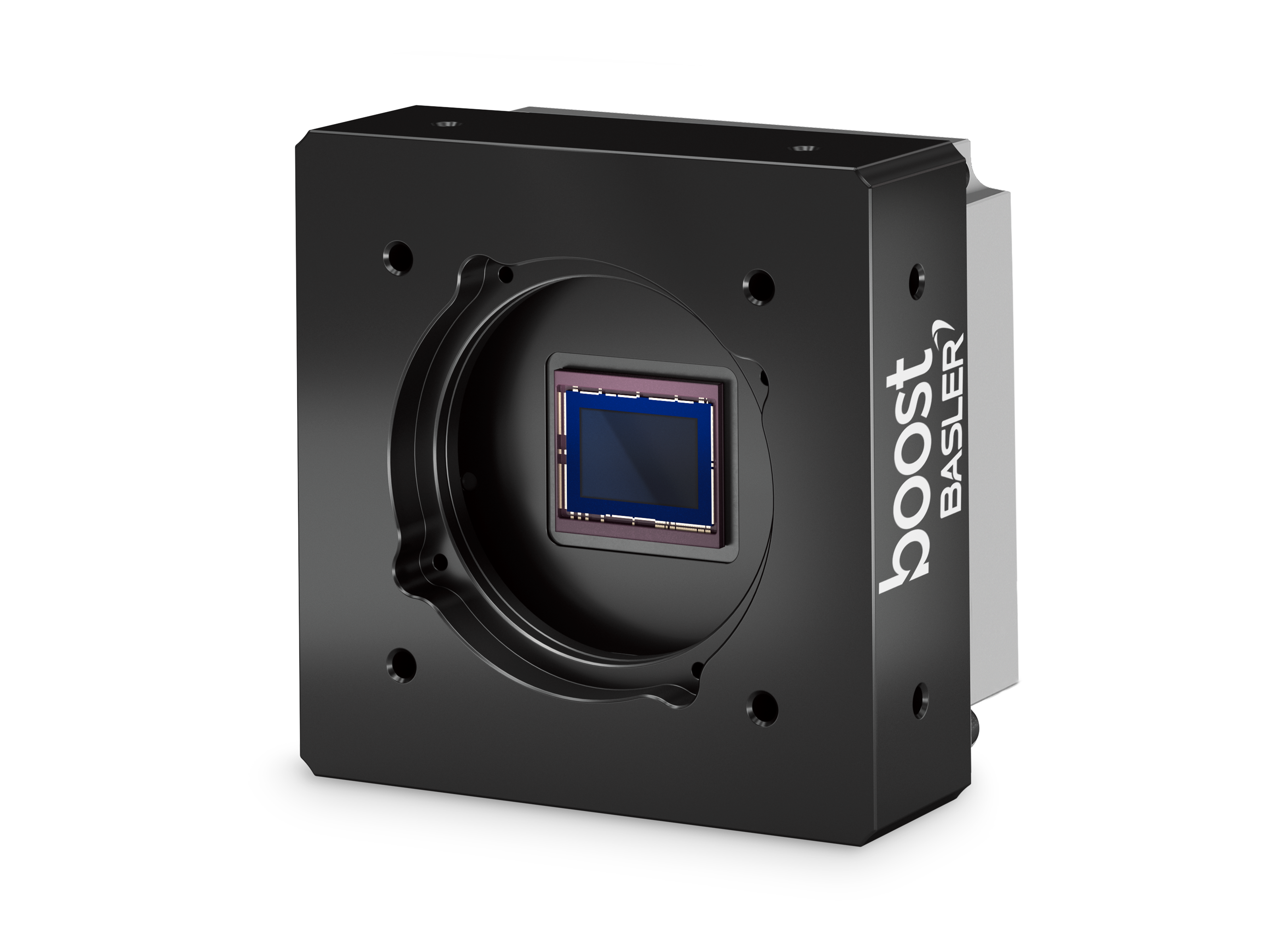

Basler boost R boA4096-93cm

Name: boA4096-93cm
SKU: 107803
Price: 2509 EUR
Availability: InStock

The Basler CoaXPress 2.0 boA4096-93cm camera with the Sony IMX255 CMOS sensor delivers 93 frames per second with a 9 MP resolution.

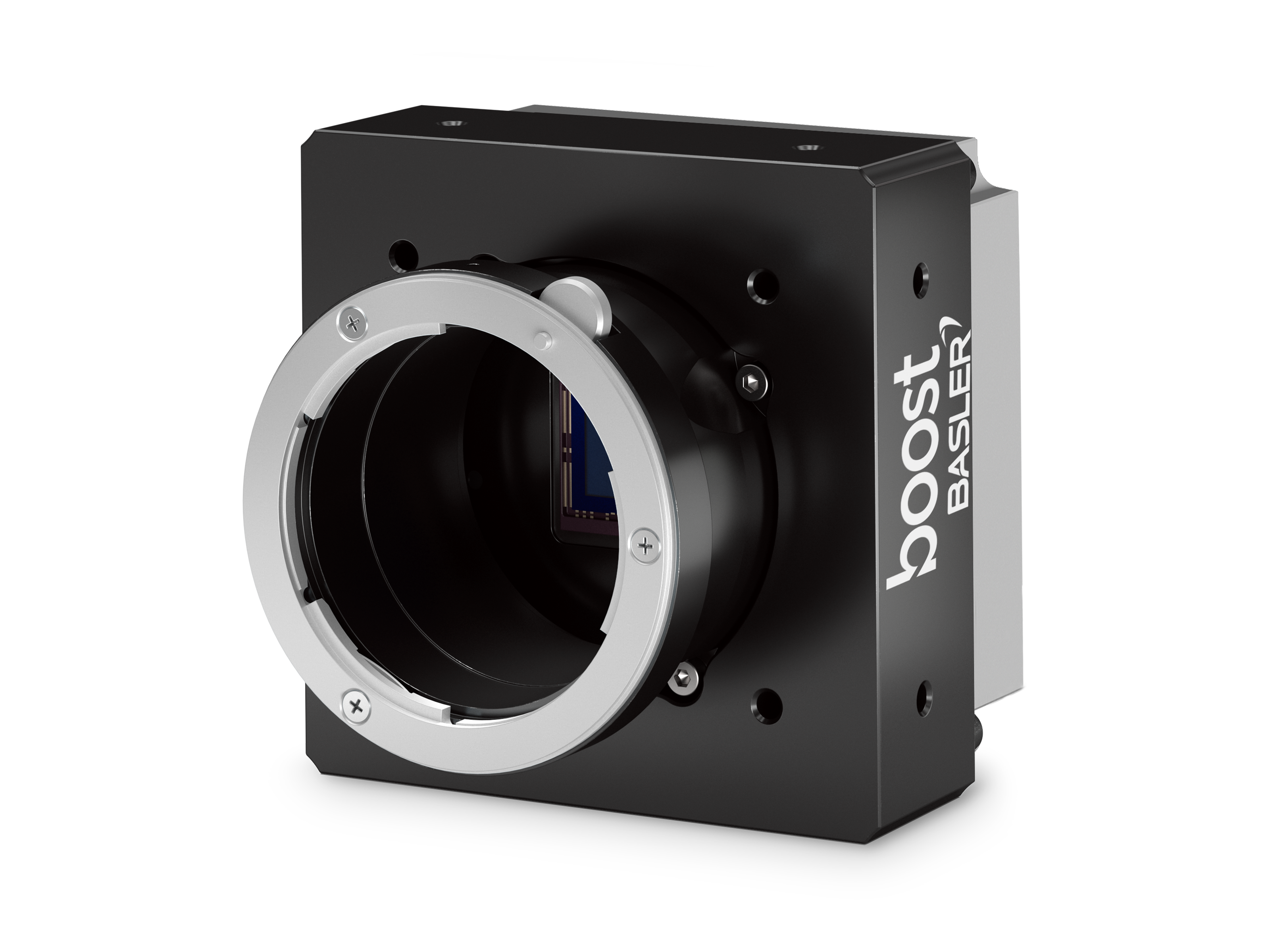

The boost series is available with different lens mounts (C-mount and F-mount). These must be purchased separately for the camera.

Quantity

Net list price	€2,509.00
Delivery time	Standardapprox. 4 weeks

Sensor Vendor	Sony
Sensor	IMX255
Shutter	Global Shutter
Sensor Format	1"
Sensor Diagonal	15.97 mm
Sensor Type	CMOS
Sensor Size	14.1 mm × 7.5 mm
Resolution (H x V)	4096 px × 2168 px
Resolution	9 MP
Pixel Size (H x V)	3.45 μm × 3.45 μm
Frame rate	93 fpsCalculate individual frame rate
Mono/Color	Mono
Spectrum	Visible

Interface	CoaXPress (CXP-12)
Image Data Interface	CoaXPress (2.5–12.5 Gbps)
Synchronization	free-run hardware trigger software trigger
Exposure Control	hardware trigger programmable via the camera API
Digital Input	1
General Purpose I/O	2
Power Supply	PoCXP or 24 VDC
Power Requirements (typical)	8 W
