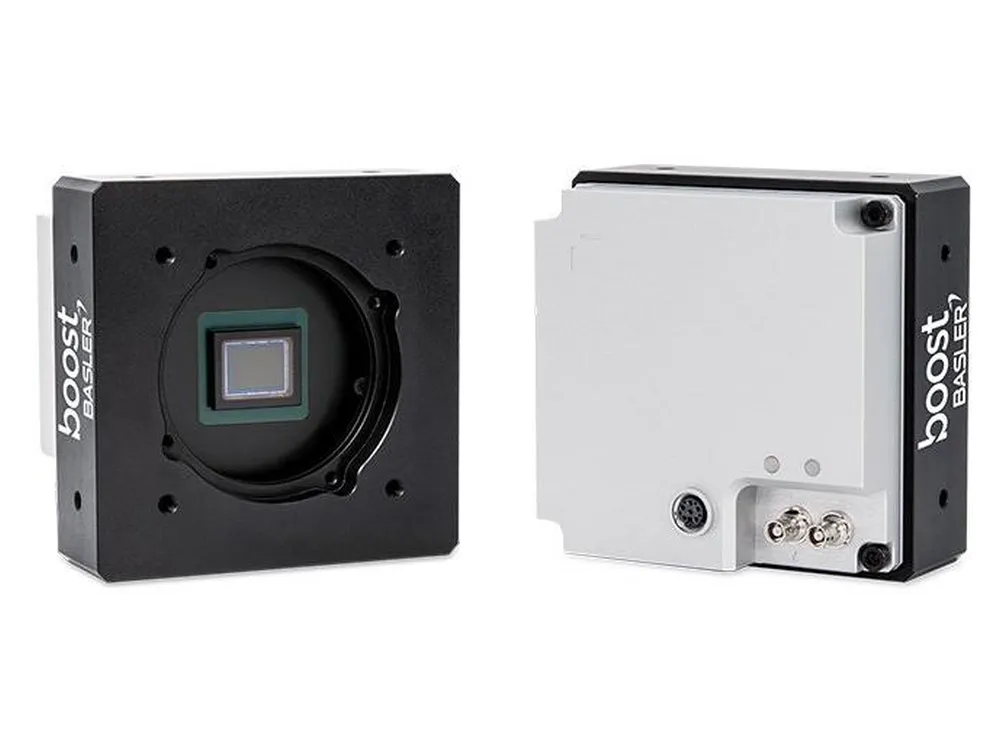

Basler boost boA4096-180cc

IMX535 Sensor
180 fps Frame rate
CoaXPress (CXP-12) Interface
12 MP Resolution (MP)
1/1.1" Sensor Format

The Basler CoaXPress 2.0 boA4096-180cc camera with the Sony IMX535 CMOS sensor delivers 180 frames per second with a 12 MP resolution.

The boost series is available with different lens mounts (C-mount, F-mount and M42-mount). These must be purchased separately for the camera.

Optional accessories

Data Cable

Please select

Cable CXP, Micro-BNC x2 (HD BNC), P, 10 m +€105.50

Cable CXP, Micro-BNC x2 (HD-BNC), DrC,5m +€116.00

Cable CXP, Micro-BNC x2 (HD BNC), P, 5 m +€82.00

Cable CXP, Micro-BNC x2 (HD BNC), P, 3 m +€69.10

I/O Cables

Please select

Power-I/O Cable, M8 6p/open, P, 5 m +€29.20

Power-I/O Cable, M8 6p/open, P, 10 m +€42.10

Power Supply

Please select

Power Supply for Camera 18.0W, M8 6-pin +€47.30

Heat Sink

Please select

Heat sink for Basler boost R cameras +€14.00

Quantity

Suitable Products

Required software

pylon vTools for image processing
Design robust image processing software for quality assurance and tracking. Functions such as blob analysis, matching, and code reader can be combined using drag-and-drop design and flexibly integrated into the target application.
pylon Software for image acquisition
pylon offers certified drivers for many camera interfaces, as well as simple programming interfaces and practical tools for camera setup.

Net list price	€2,349.00
Ready for dispatch	Standardapprox. 4 weeks

Manufacturer	Basler
Order Number	108669
Product Family	boost R
Camera Series	Basler boost
Camera Category	Area Scan Camera
Warranty	36 Months

Sensor Vendor	Sony
Sensor	IMX535
Shutter	Global Shutter
Sensor Format	1/1.1"
Sensor Diagonal	13.9 mm
Sensor Type	CMOS
Sensor Size	11.2 mm × 8.2 mm
Resolution (H x V)	4096 px × 3000 px
Resolution	12 MP
Pixel Size (H x V)	2.74 μm × 2.74 μm
Frame rate	180 fpsCalculate individual frame rate
Mono/Color	Color
Spectrum	Visible

Interface	CoaXPress (CXP-12)
Image Data Interface	CoaXPress (2.5–12.5 Gbps)
Pixel Bit Depth	8 bits 10 bits 12 bits
Synchronization	free-run hardware trigger software trigger
Exposure Control	programmable via the camera API
Digital Output	1
General Purpose I/O	2
Power Supply	PoCXP or 24 VDC
Power Requirements (typical)	12 W

Housing Type	Box
Housing Size (L x W x H)	45 mm x 80 mm x 80 mm
Weight	525 g
Lens Mount	C-mount F-mount M42 x 0.75 M42 x 1
Operating Temperature	0 °C - 50 °C

Basler boost boA4096-180cc

General Information

Sensor

Camera Data

Housing

Technical Drawing

Manufacturer

Conformity

Features & Documentation

Color Creation

I/O Control

Image Acquisition Control

Light Control Features

Line Source Signals

Miscellaneous

Pixel Formats

Standard Features

Suitable Products

Required software

pylon vTools for image processing

pylon Software for image acquisition

Balance White (Manual White Balance)
Balance White Auto (Automatic White Balance)
Brightness and Contrast
Color Adjustment (6-axis Hue/Saturation)
Color Creation	With this set of features, you can correct artifacts in color images without affecting the structures in the image.
Demosaicing Mode
Hue and Saturation

Acquisition Frame Rate
Acquisition Mode
Acquisition Start, Stop, and Abort
Acquisition Status
Burst Mode	Acquire a sequence of images after triggering once and output them as required. In High-Speed Burst Mode, you can temporarily bypass the data limitation of GigE.
Exposure Active Trigger
Exposure End Trigger
Exposure Start Delay
Exposure Start Trigger
Frame Active Trigger
Frame Burst Active Trigger
Frame Burst End Trigger
Frame Burst Start Trigger
Frame End Trigger
Frame Start Trigger
Sensor Readout Time
Triggered Image Acquisition

Counter Active
Exposure Active
Flash Window
Frame Burst Active
Frame Burst Trigger Wait
Frame Trigger Wait
Serial Tx
Timer 1 Active, Timer 2 Active
User Output 1, 2, and 3

Device Information Parameters
Device Temperature
Improvement of Image Quality	Reduce image artifacts caused by environmental influences. Correct individual pixel errors using Defect Pixel Correction.
Presettings	Automate recurring steps in your application by using the camera's default settings and/or creating and saving your own presets.
Sensor Bit Depth
Sensor State
Temperature State
Transfer Bit Depth
User-Defined Values
Vignetting Correction	Correct lens shading artifacts that occur in acquired images.

Bayer RG 10
Bayer RG 12
Bayer RG 12
Bayer RG 8
Bayer RG 8
Mono 10
Mono 12p
Mono 8
RGB 8
YUV422_8

Auto Function Profile
Auto Functions	Use the camera's auto functions to allow the camera to find the optimum settings for exposure time, gain, and white balance, for example. This simplifies camera integration into your application.
Center X and Center Y
Counter
Digital Shift
Exposure Auto
Exposure Mode: Timed
Exposure Mode: Trigger Controlled
Exposure Mode: Trigger Width
Exposure Time
Gain
Gamma Correction
Image Adjustment	Adjust pixel values losslessly with Black Level, Digital Shift, and other standard features.
Image ROI (Region of Interest)
Lookup Table (LUT)
Multiple ROI
Reverse X (Horizontal Mirroring)
Reverse Y (Vertical Mirroring)
Sequencer (ace 2 and boost R)
Test Patterns
Timer
Ultra Short Exposure Time Mode
