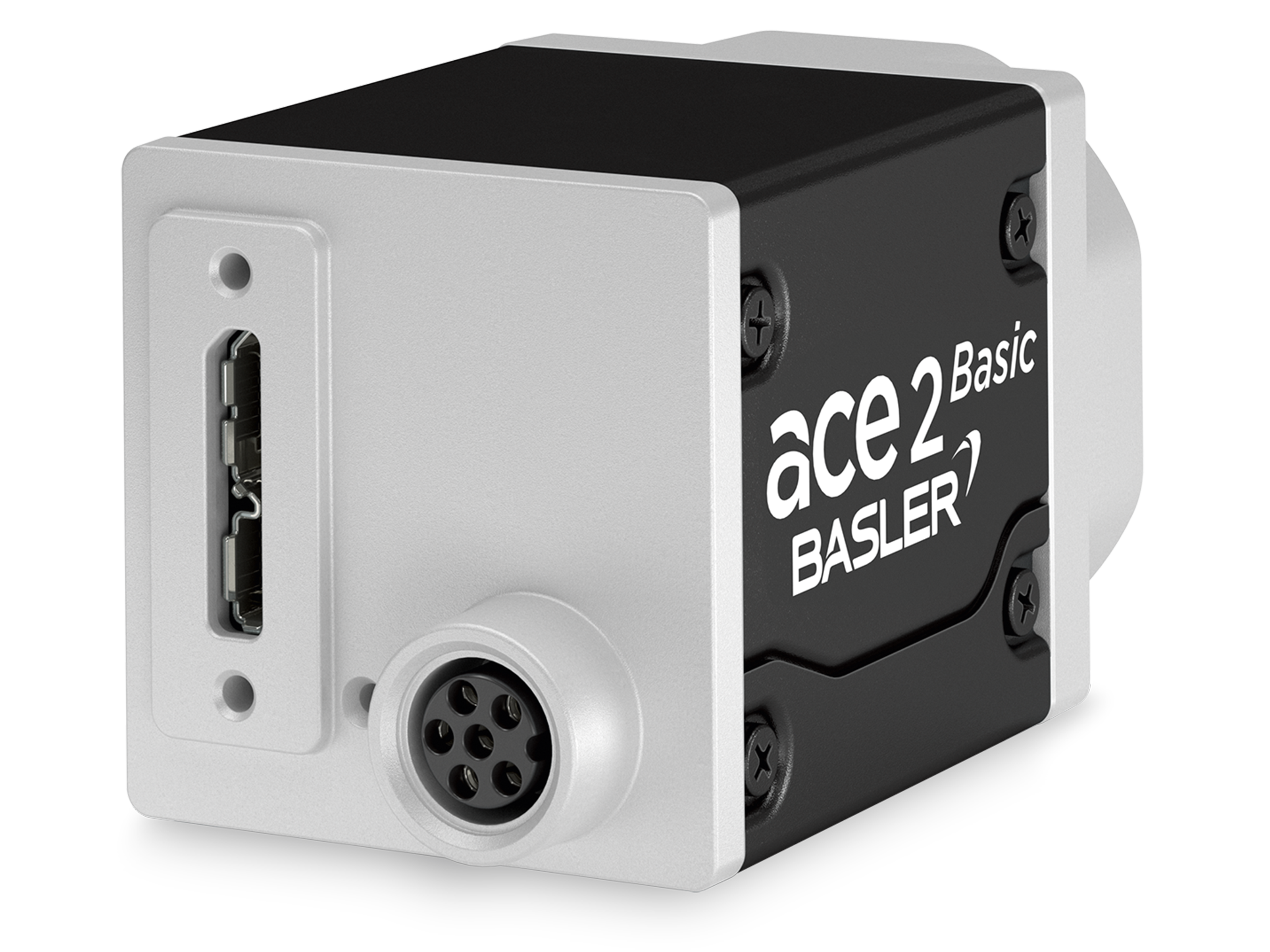

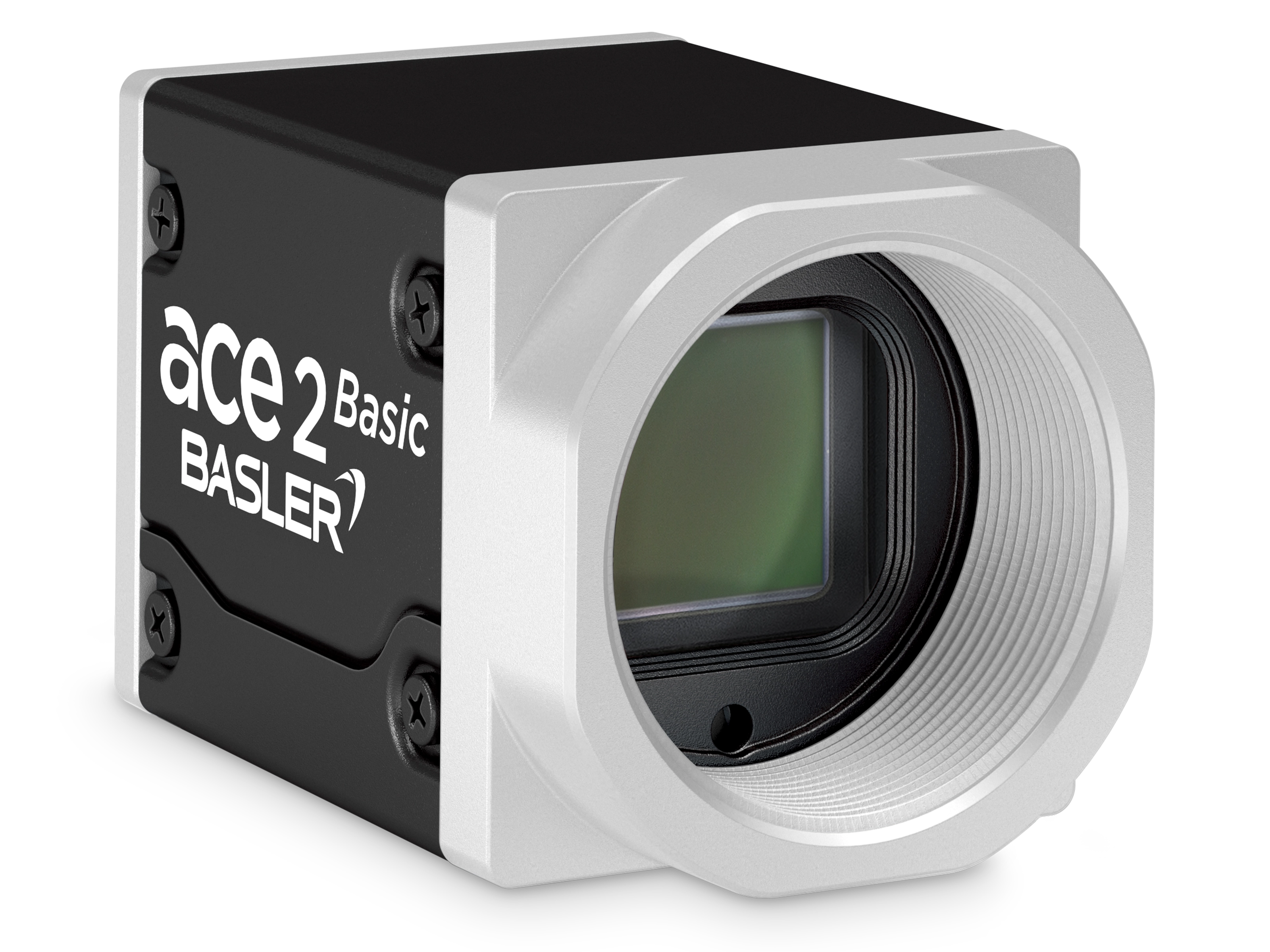

Basler ace 2 a2A4508-20umBAS

GMAX2518 Sensor
20 fps Frame rate
USB 3.0 Interface
18.4 MP Resolution (MP)
1" Sensor Format

The Basler a2A4508-20umBAS USB3.0 camera with the Gpixel GMAX2518 CMOS sensor delivers 20 frames per second at 18.4 MP resolution.

Select your model

Select Product Line:

Select Interface:

Select Mono/Color:

Recommended accessories

Lens

Data Cable

Please select

Cable USB 3.0, Micro B sl/A, P, 3 m +€30.00

Cable USB 3.0, Micro B sl/A, S, 3 m +€20.00

Cable USB 3.0, Micro B 90° A1 sl/A (ace downwards), P, 3 m +€35.00

Cable USB 3.0, Micro B sl / A, DrC, 5 m +€76.10

I/O Cables

Please select

Power-I/O Cable, M8 6p/open, P, 5 m +€29.20

Cooling & Mounting

Please select

Heat sink for ace 2 and racer 2 S +€9.00

Compressed Air Cooler ace 2 / racer 2 S +€69.00

Tripod Mount ace 2 and racer 2 S +€15.00

Quantity

Show suitable products

Suitable Products

Recommended software

pylon vTools for image processing
Design robust image processing software for quality assurance and tracking. Functions such as blob analysis, matching, and code reader can be combined using drag-and-drop design and flexibly integrated into the target application.
pylon Software for image acquisition
pylon offers certified drivers for many camera interfaces, as well as simple programming interfaces and practical tools for camera setup.

All Basler ace 2 Models

Haven't found the right model? See the product list for an overview of all ace 2 models. Find the right product for your application: filter by sensor, resolution, frame rate, and more.

To the ace 2 product table

Net list price	€1,009.00
Ready for dispatch	Standardapprox. 2 weeks

Manufacturer	Basler
Order Number	108456
Product Family	ace 2 R
Product Line	ace 2 R Basic
Camera Series	Basler ace 2
Camera Category	Area Scan Camera
Warranty	36 Months

Sensor Vendor	Gpixel
Sensor	GMAX2518
Shutter	Global Shutter
Sensor Format	1"
Sensor Diagonal	15.2 mm
Sensor Type	CMOS
Sensor Size	11.27 mm × 10.24 mm
Resolution (H x V)	4508 px × 4096 px
Resolution	18.4 MP
Pixel Size (H x V)	2.5 μm × 2.5 μm
Frame rate	20 fpsCalculate individual frame rate
Mono/Color	Mono
Spectrum	Visible

Quantum Efficiency (typical/minimal)	56.3 % (typical)
Dark Noise (typical/maximal)	3.2 e¯ (typical)
Saturation Capacity (typical/minimal)	5.7 ke¯ (typical)
Dynamic Range (typical/minimal)	63.8 dB (typical)
Signal-to-Noise Ratio (typical/minimal)	37.6 dB (typical)

Interface	USB 3.0
Image Data Interface	USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)
Pixel Bit Depth	8 bits 10 bits 12 bits
Exposure Control	hardware trigger programmable via the camera API
Digital Input	1
General Purpose I/O	2
Power Supply	Via USB 3.0 interface
Power Requirements (typical)	3.4 W

Basler ace 2 a2A4508-20umBAS

Select Product Line:

Select Interface:

Select Mono/Color:

General Information

Sensor

EMVA Data

Camera Data

Housing

Technical Drawing

Manufacturer

Conformity

Documentation

Features & Documentation

Easy Handling

Image Quality Optimization

Process Control

Speed Increase

Suitable Products

Recommended software

pylon vTools for image processing

pylon Software for image acquisition

All Basler ace 2 Models

Housing Type	Box
Protection Class	IP30
Housing Size (L x W x H)	42.8 mm x 29 mm x 29 mm
Weight	85 g
Lens Mount	C-mount
Operating Temperature	-10 °C - 60 °C

Auto Functions	Use the camera's auto functions to allow the camera to find the optimum settings for exposure time, gain, and white balance, for example. This simplifies camera integration into your application.
Presettings	Automate recurring steps in your application by using the camera's default settings and/or creating and saving your own presets.

High Dynamic Range (HDR)	Expand the dynamic range by up to 16 bit. This ensures that bright areas are reproduced precisely and without loss of information, while preserving details in dark areas.
Image Adjustment	Adjust pixel values losslessly with Black Level, Digital Shift, and other standard features.
Improvement of Image Quality	Reduce image artifacts caused by environmental influences. Correct individual pixel errors using Defect Pixel Correction.

Burst Mode	Acquire a sequence of images after triggering once and output them as required. In High-Speed Burst Mode, you can temporarily bypass the data limitation of GigE.
Digital I/Os	Control the camera via trigger commands or use the camera to control components of your vision system, such as lighting or encoders.
Information Utilisation	Use additional information from Chunks and Events to optimize your automation.
Intelligent Light Control (SLP)	Control the lighting directly with the camera. By synchronizing the flash mode and adjusting the brightness levels, you can quickly achieve precise lighting conditions and shorten the development time of your application.
