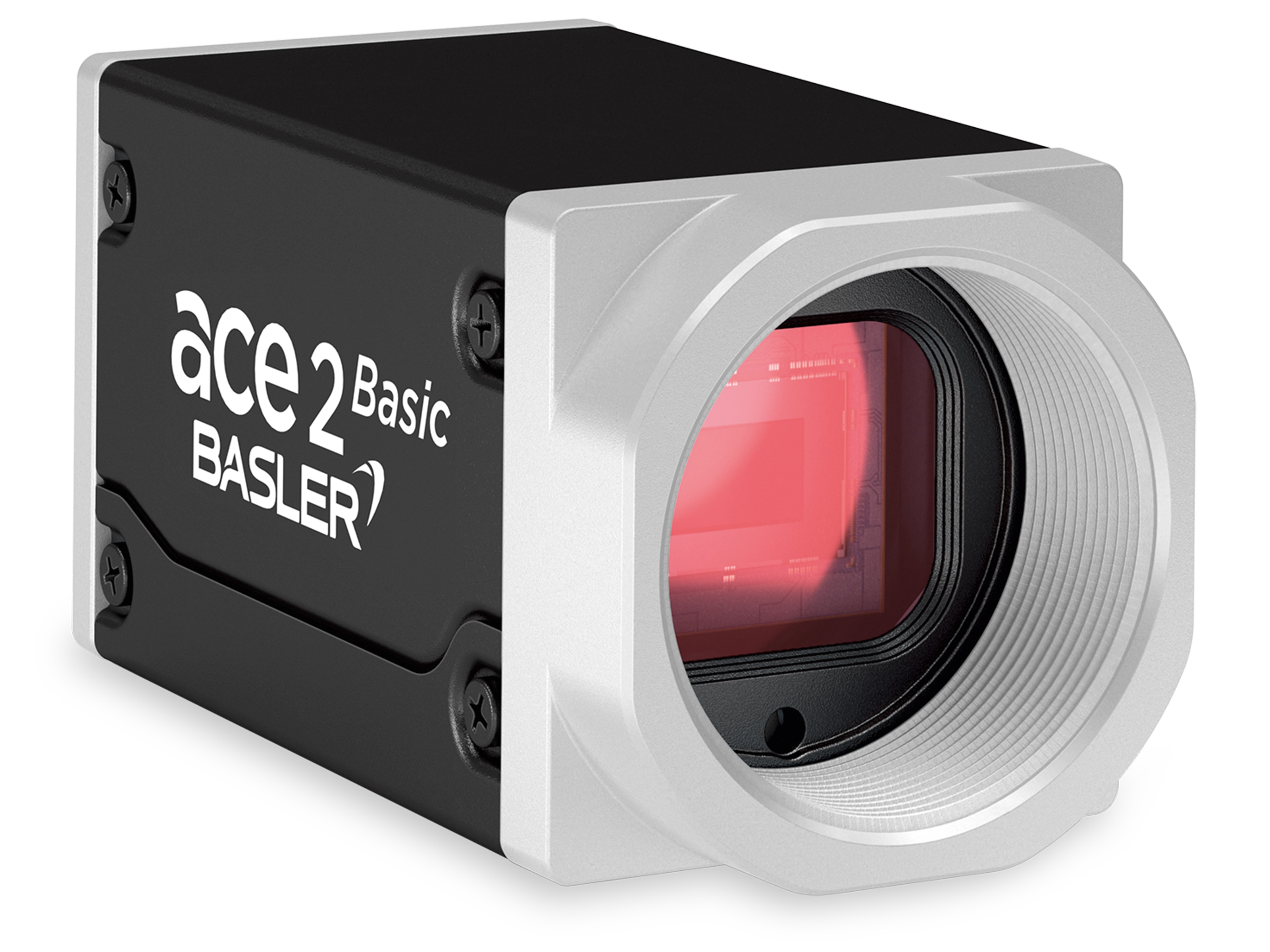

Basler ace 2 R a2A1920-165g5cBAS
- IMX392 Sensor
- 168 fps Frame rate
- 5GigE Interface
- 2.3 MP Resolution (MP)
- 1/2.3" Sensor Format
The Basler a2A1920-165g5cBAS 5GigE camera with the Sony IMX392 CMOS sensor delivers 168 frames per second at 2.3 MP resolution.
Select your model
Select Product Line:
| Net list price | €569.00 |
|---|---|
| Delivery time |
|
General Information
| Order Number | 108909 |
|---|---|
| Product Family | ace 2 R |
| Product Line | ace 2 R Basic |
| Camera Category | Area Scan Camera |
Sensor
| Sensor Vendor | Sony |
|---|---|
| Sensor | IMX392 |
| Shutter | Global Shutter |
| Sensor Format | 1/2.3" |
| Sensor Diagonal | 7.77 mm |
| Sensor Type | CMOS |
| Sensor Size | 6.6 mm × 4.1 mm |
| Resolution (H x V) | 1920 px × 1200 px |
| Resolution (MP) | 2.3 MP |
| Pixel Size (H x V) | 3.45 μm × 3.45 μm |
| Frame rate | 168 fpsCalculate individual frame rate |
| Mono/Color | Color |
| Spectrum | Visible |
Camera Data
| Interface | 5GigE |
|---|---|
| Image Data Interface | Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s), 2.5 Gigabit Ethernet (2500 Mbit/s), 5 Gigabit Ethernet (5000 Mbit/s) |
| Pixel Bit Depth |
|
| Exposure Control |
|
| Digital Input | 1 |
| General Purpose I/O | 2 |
| Power Requirements (typical) | 5.9 W |
Housing
| Housing Type | Box |
|---|---|
| Housing Size (L x W x H) | 55.5 mm x 29 mm x 29 mm |
| Weight | 100 g |
| Lens Mount | C-mount |
| Operating Temperature | -10 °C - 50 °C |
Technical Drawing
Manufacturer
| Basler |
|---|
Conformity
- CE (incl. RoHS)
- EAC
- FCC
- GenICam
- GigE Vision 2.0
- IP30
- KC
- RoHS
- UKCA
- UL
Features & Documentation
For more information about the features, visit the Documentation
