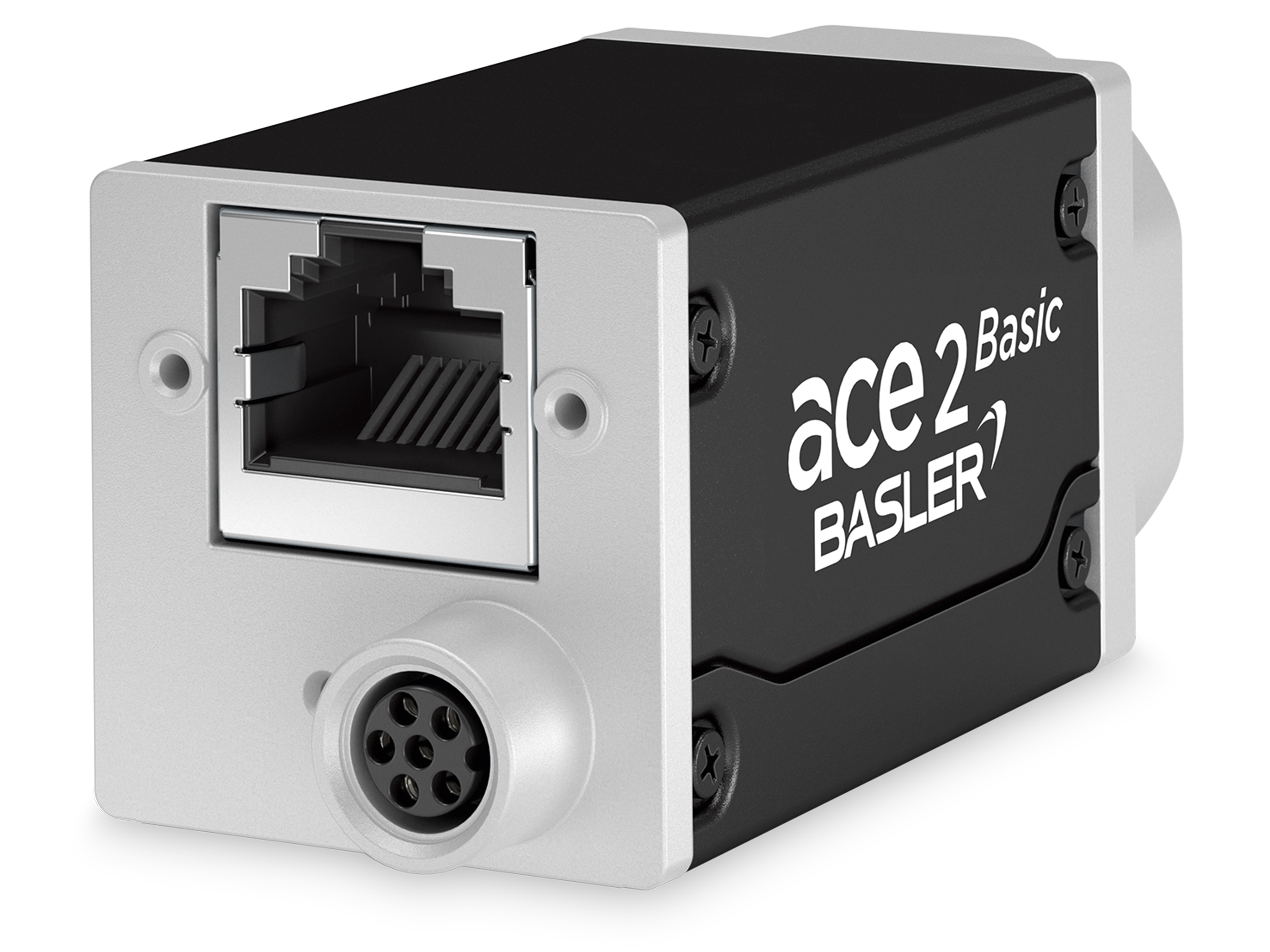

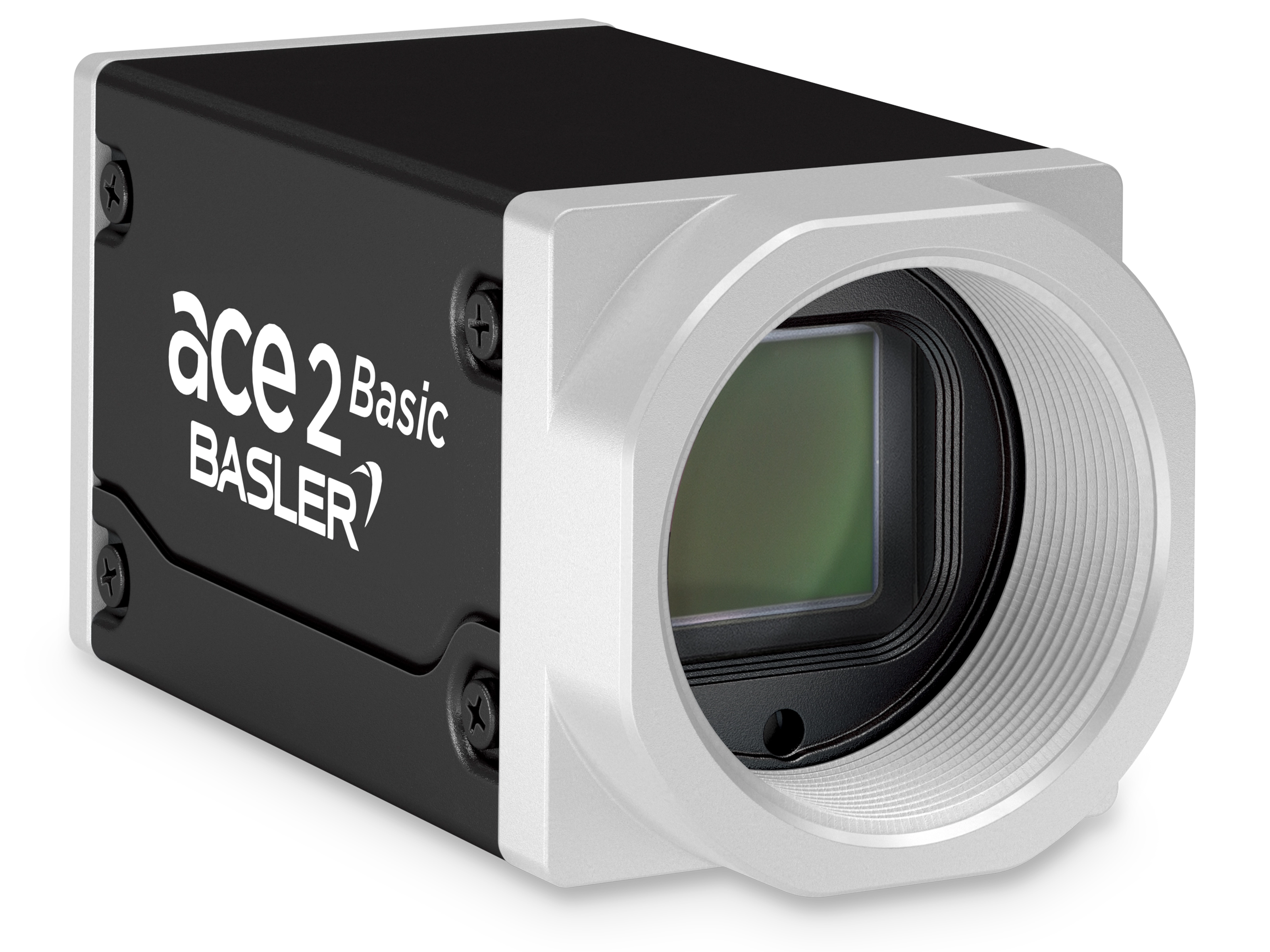

Basler ace 2 a2A2464-115g5mBAS

OG05C Sensor
115 fps Frame rate
5 MP Resolution (MP)
5GigE Interface
2/3" Sensor Format

The Basler a2A2464-115g5mBAS 5GigE camera with the OmniVision OG05C NIR-enhanced global shutter sensor delivers 115 fps (frames per second) at 5 MP resolution.

Select your model

Select Product Line:

Select Interface:

Select Mono/Color:

Recommended accessories

Lens

3-year warranty on Basler productsDirect support from local Basler teamsSecure checkout and data protection

Show suitable products

Suitable Products

Recommended software

pylon vTools for image processing
Design robust image processing software for quality assurance and tracking. Functions such as blob analysis, matching, and code reader can be combined using drag-and-drop design and flexibly integrated into the target application.
pylon Software for image acquisition
pylon offers certified drivers for many camera interfaces, as well as simple programming interfaces and practical tools for camera setup.

All Basler ace 2 Models

Haven't found the right model? See the product list for an overview of all ace 2 models. Find the right product for your application: filter by sensor, resolution, frame rate, and more.

To the ace 2 product table

Series Production	now
Manufacturer	Basler
Order Number	109774
Product Family	ace 2 R
Product Line	ace 2 R Basic
Camera Series	Basler ace 2
Camera Category	Area Scan Camera
Warranty	36 Months

Sensor Vendor	OmniVision
Sensor	OG05C
Shutter	Global Shutter
Sensor Format	2/3"
Sensor Diagonal	11.02 mm
Sensor Type	CMOS
Sensor Size	8.45 mm × 7.07 mm
Resolution (H x V)	2448 px × 2048 px
Pixel Size (H x V)	3.45 μm × 3.45 μm
Frame rate	115 fpsCalculate individual frame rate
Mono/Color	Mono
Spectrum	Visible + NIR

Measured at	525 nm
Quantum Efficiency (typical/minimal)	85.1 % (typical)
Dark Noise (typical/maximal)	13.1 e¯ (typical)
Saturation Capacity (typical/minimal)	33.8 ke¯ (typical)
Dynamic Range (typical/minimal)	67.8 dB (typical)
Signal-to-Noise Ratio (typical/minimal)	45.3 dB (typical)

Interface	5GigE
Camera Data Connector	RJ45 receptacle (GigE)
Image Data Interface	Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s), 2.5 Gigabit Ethernet (2500 Mbit/s), 5 Gigabit Ethernet (5000 Mbit/s)
Pixel Bit Depth	8 bits 10 bits 12 bits
Synchronization	free-run hardware trigger software trigger
Exposure Control	hardware trigger programmable via the camera API
Camera I/O Connector	M8 6-Pin receptacle
Digital Input	1
General Purpose I/O	2
Power Supply	12-24 VDC
Power Requirements (typical)	5.2 W

Housing Type	Box
Protection Class	IP30
Housing Size (L x W x H)	55.5 mm x 29 mm x 29 mm
Weight	100 g
Lens Mount	C-mount
Operating Temperature	-10 °C - 50 °C

Basler ace 2 a2A2464-115g5mBAS

Select Product Line:

Select Interface:

Select Mono/Color:

General Information

Sensor

EMVA Data

Camera Data

Housing

Technical Drawing

Manufacturer

Conformity

Documentation

Features

Easy Handling

Image Quality Optimization

Process Control

Speed Increase

Suitable Products

Recommended software

pylon vTools for image processing

pylon Software for image acquisition

All Basler ace 2 Models

Product successfully added to cart

Auto Functions	Use the camera's auto functions to allow the camera to find the optimum settings for exposure time, gain, and white balance, for example. This simplifies camera integration into your application.
Presettings	Automate recurring steps in your application by using the camera's default settings and/or creating and saving your own presets.

Image Adjustment	Adjust pixel values losslessly with Black Level, Digital Shift, and other standard features.
Improvement of Image Quality	Reduce image artifacts caused by environmental influences. Correct individual pixel errors using Defect Pixel Correction.
PGI - Patented	Use the complete image enhancement package or choose from Denoising, Sharpness, Debayering, and Color-Anti-Aliasing to adjust the image quality.

Digital I/Os	Control the camera via trigger commands or use the camera to control components of your vision system, such as lighting or encoders.
Information Utilisation	Use additional information from Chunks and Events to optimize your automation.
Intelligent Light Control (SLP)	Control the lighting directly with the camera. By synchronizing the flash mode and adjusting the brightness levels, you can quickly achieve precise lighting conditions and shorten the development time of your application.
Sequencer	Program sequential processes in the camera to control image acquisition and pre-processing in real time.
Timing	Control the start and end of an exposure individually. Add delays or synchronize multiple cameras in a GigE network using PTP.
