  • Make the
    Invisible Visible - with

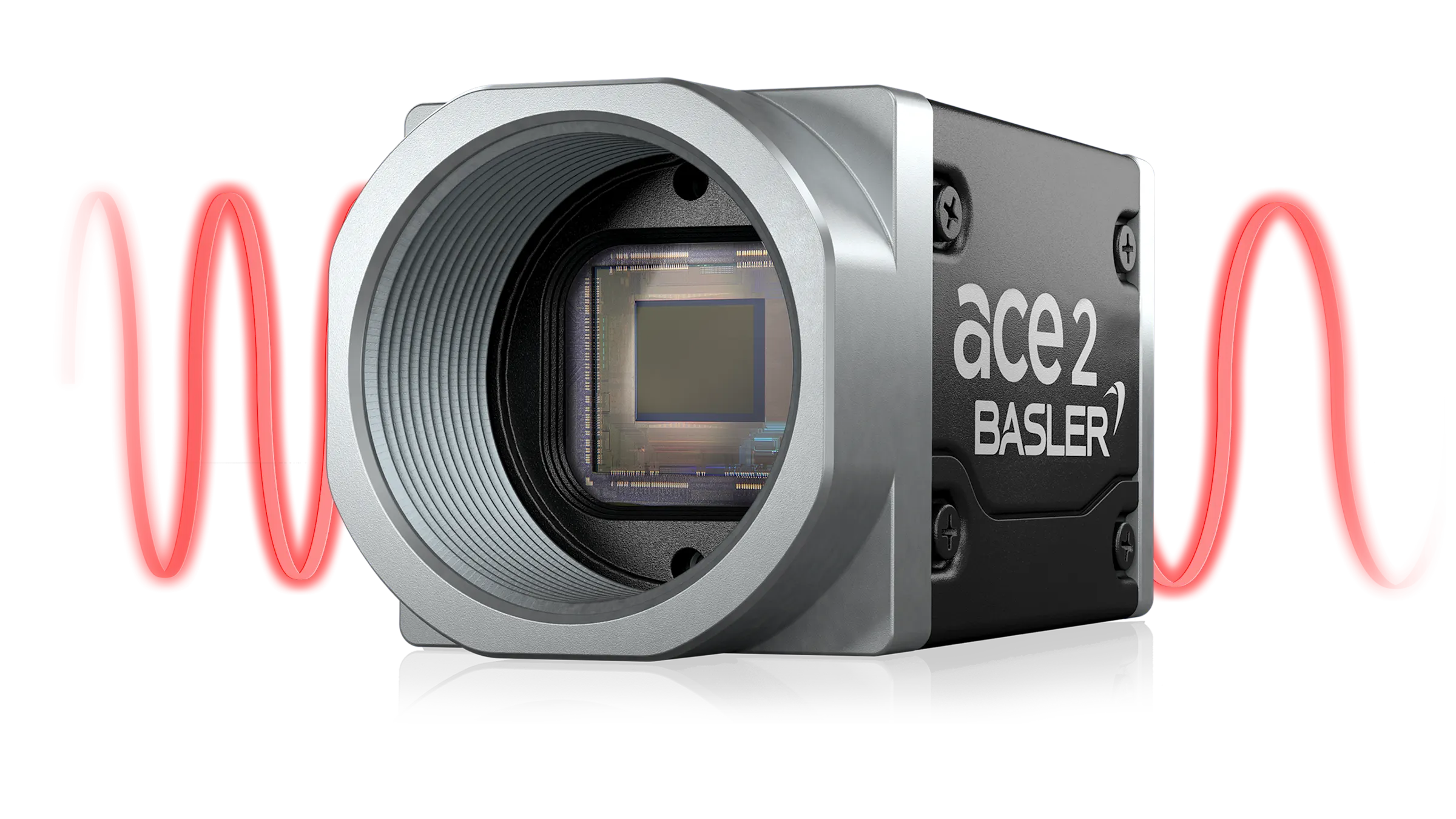

    Basler ace 2 X visSWIR Cameras

See Beyond the Visible with Basler Short Wavelength Infrared Cameras

Advanced technology, improved sensor performance: take a deeper look at what's inside

A peek behind the curtain: Short-wave infrared (SWIR) cameras allow a look beneath the surface. Whether it's checking security features, detecting fill levels, shining a light through complex structures, or detecting hidden objects—Basler ace 2 X visSWIR cameras allow a close look at what remains hidden from our human eye. A wide range of applications can benefit from this advanced technology featuring high analysis flexibility and accurate detail recognition.

Other benefits include:

  • Small housing with proven 29 mm x 29 mm footprint – suitable for a wide range of industrial applications
  • Equipped with the highly sensitive Sony IMX990/991 SenSWIR sensors
  • Capable of capturing images in both the visible and invisible light spectrum with wavelengths from 0.4 µm to 1.7 µm
  • Available with USB 3.0 and GigE interfaces
  • Easy integration thanks to Basler’s pylon Software
  • A wide range of matching visSWIR vision components – all extensively tested and fully compatible
  • visWIR Lenses with high transmittance at whole wavelength of 0.4 µm -1.7 µm
  • Short-Wave Infrared Bandpass Filter, SWIR selection of Basler Lights, Interface Cards and IP67 Housing
  • Top price-performance ratio for a complete visSWIR Vision System
  • Known reliability and longevity of Basler products with 3-year warranty

Go to ace 2 X visSWIR cameras

Basler ace 2 VisSWIR Cameras

See what is hidden beneath the surface: Applications for the ace 2 X visSWIR

Applications for the ace 2 X visSWIR

Integrated into the proven Basler ace 2 camera series and equipped with Sony's innovative SenSWIR sensors, visSWIR cameras allow wavelengths from 0.4 µm to 1.7 µm to be detected. It is now possible to capture both visible and non-visible light with one camera. Basler ace 2 X visSWIR cameras guarantee extraordinarily high quality at an impressive price/performance ratio for diverse applications.

Factory Automation

  • Silicon Wafer inspection: Silicon is transparent in SWIR light so defects like voids, fractures, and impurities become visible—no X-Ray needed!
  • Temperature Indication: Basler visSWIR cameras deliver high-resolution images for detecting temperatures above 250°C
  • Display Inspection: SWIR technology provides the high optical resolution needed to detect even small surface defects
  • Solar Inspection: Inspection ranging from individual silicon blocks to complete photovoltaic cells
  • Recycling: detect misdirected waste (e.g., detecting plastic in residual waste)
  • Sorting: Separation of different types of plastic

Medical & Life Sciences

  • Blister Control: Precise control to check the correct position and completeness of blistered products
  • Dental: Accurate visualization of cavities under the enamel surface of teeth or between adjacent teeth
  • Blood Inspection: SWIR cameras provide detailed insights (e.g., to detect blood veins and distinguish bacterially infected tissue)

ITS

  • Traffic Inspection: SWIR technology provides high-quality images for intelligent transportation systems (ITS) even at high speeds
  • Security: the smallest details can be made visible, even at night or in poor weather conditions
  • Tolling: SWIR technology can be used for safety reasons and to identify toll evaders
  • Red Light Enforcement: offering detailed image and video material (mandatory for use as legally admissible evidence) by using SWIR vision systems

Agriculture

  • Sorting: Harvesters equipped with Basler visSWIR cameras enable immediate sorting between ripe and unripe fruits and vegetables.
  • Health: Crops can be closely inspected and examined for quality or the necessity of treatment
  • Land Management: these cameras help optimize the management of agricultural land, allowing digitalization in agriculture
  • Food Quality: Identification of defective fruits and vegetables, even with unblemished surfaces

Short Wavelength Infrared Cameras

Camera Models Frame Rate Interface Sensor
a2A640-240umSWIR 240 fps USB 3.0 IMX991
a2A1280-125umSWIR 125 fps USB 3.0 IMX990
a2A640-240gmSWIR 240 fps GigE IMX991
a2A1280-80gmSWIR 80 fps GigE IMX990

Companion products for your complete visSWIR vision system

Lenses

Lenses

Combined with a camera, filter, and lighting, lenses are instrumental in determining image quality. Here you can find the right lenses for your Basler visSWIR Vision System.

SWIR lenses
Lighting

Lighting

The correct light combined with other components of your visSWIR Vision System (such as the camera and lenses) enables the best possible result. Here you can find the right lighting setup

SWIR lights
Interface Cards

Interface Cards

Find a large selection of industry-proven acquisition cards for different bandwidths and interfaces.

USB + GigE cards
Optical Filters

Optical Filters

Filters protect your lens in the best possible way and can improve the resulting image quality, especially when it comes to tiny details. Discover our selection of optical filters.

SWIR filters
Accessories

Accessories

Complete your visSWIR Vision System with high quality, carefully selected accessories like IP67 housings and cables.

IP67 housing

Sony's SenSWIR technology

Sony's SenSWIR technology features smaller pixels than conventional InGaAs sensors thanks to copper-to-copper interconnects provided by Sony semiconductor manufacturing. This technology enables the development of smaller high-resolution cameras offering greater precision in inspection or quality control tasks and applications. Sony's SenSWIR image sensor can capture both visible light (400 to 780 nm) and light in the SWIR range up to 1,700 nm. There are two different sensors in terms of size and resolution: IMX990, the1/2-inch type (8.2 mm diagonal) with 1.3 MP and IMX991, the 1/4-inch type (4.1 mm diagonal) with VGA resolution. These are used for the two Basler ace visSWIR models.

How do I start? What's next?

Our guidance tools will help you find the right components for your vision system or application. Whether you are looking for particular component specifications or a complete system for your application, our guidance tools will get you there.

Vision Solution Guide

Vision System Configurator

You know what you expect from a vision system. Select the right components for you – we ensure their compatibility.

Use Vision System Configurator

Camera Selector

Camera Selector

Do you need help to find a suitable camera for your application? The tool guides you to the right area scan camera or you can switch to filters to see the whole camera portfolio.

Use the Camera Selector
