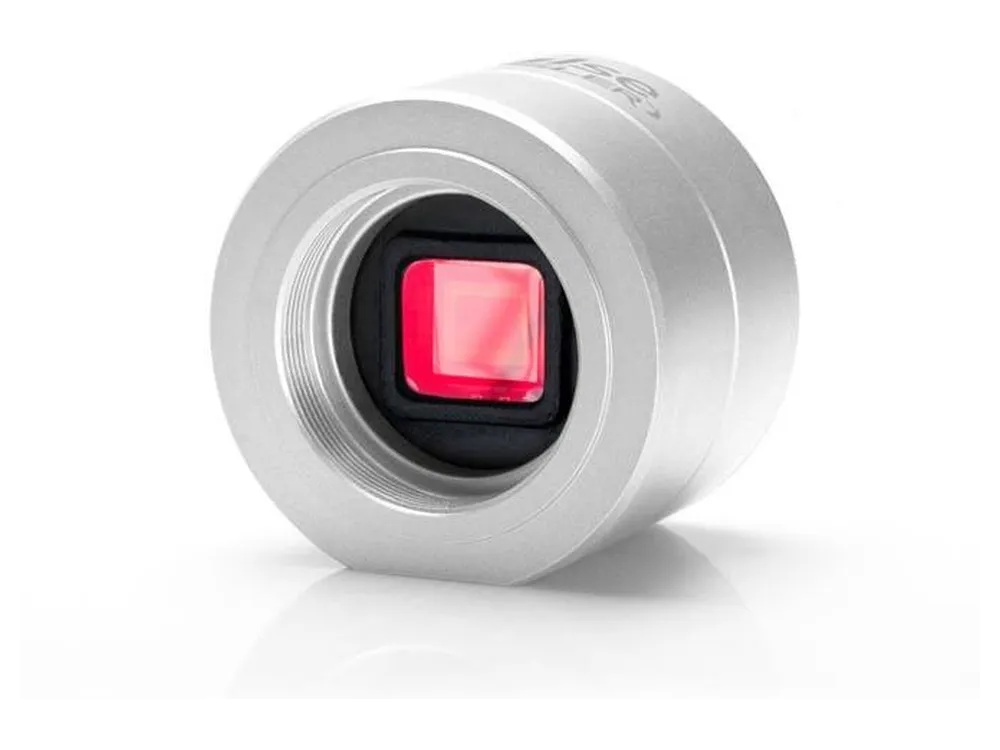

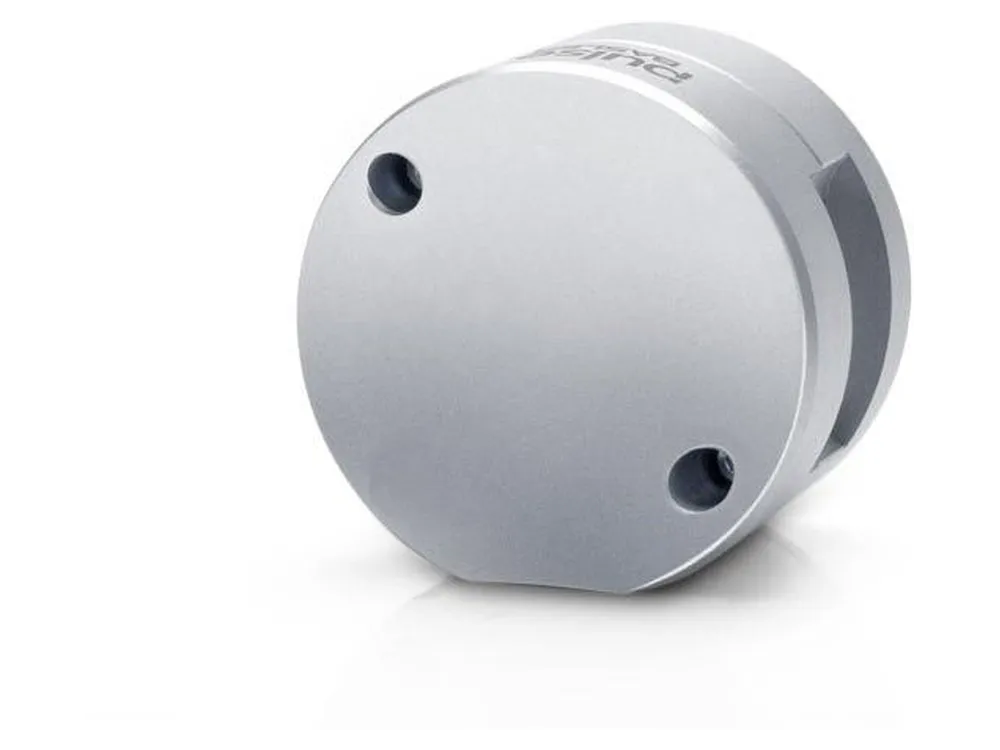

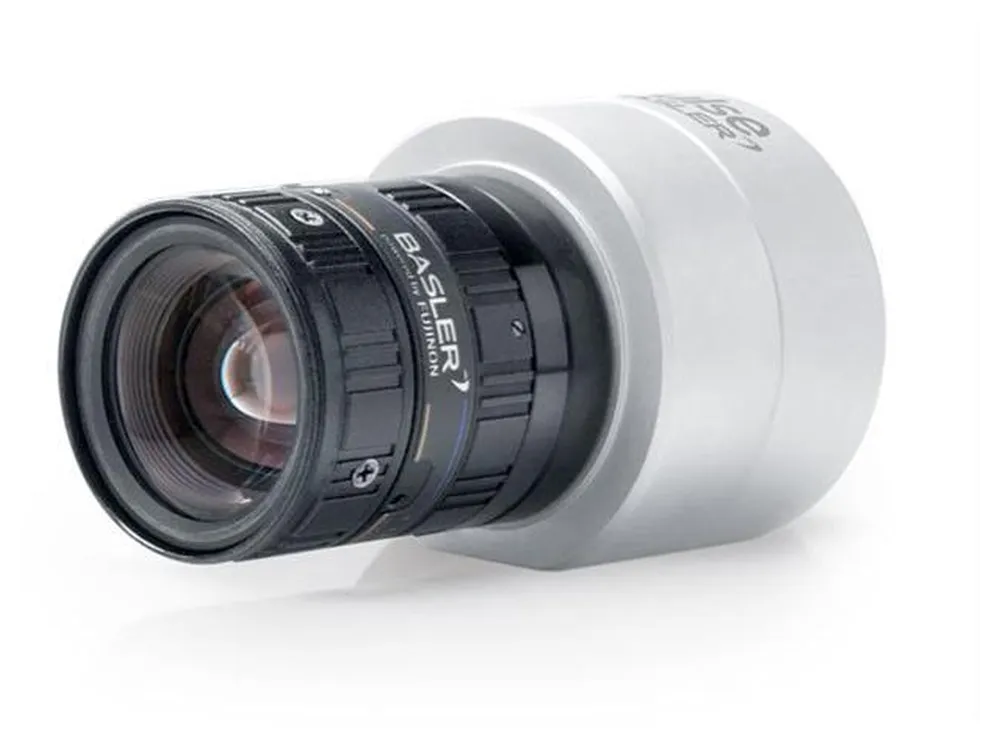

Basler pulse puA1280-54uc
- AR0134Sensor
- 54 fpsFrame rate
- 1.2 MPResolution
The Basler puA1280-54uc USB 3.0 camera with the ON Semiconductor AR0134 CMOS sensor delivers 54 frames per second at 1.2 MP resolution.
General Information
| Order Number | 106954 |
|---|---|
| Camera Category | Area Scan Camera |
Sensor
| Sensor Vendor | onsemi |
|---|---|
| Sensor | AR0134 |
| Shutter | Global Shutter |
| Sensor Format | 1/3'' |
| Sensor Diagonal | 6 mm |
| Sensor Type | CMOS |
| Sensor Size | 4.8 mm x 3.6 mm |
| Resolution (H x V) | 1280 px x 960 px |
| Resolution | 1.2 MP |
| Pixel Size (H x V) | 3.75 μm x 3.75 μm |
| Frame rate | 54 fps |
| Mono/Color | Color |
| Spectrum | Visible |
Camera Data
| Interface | USB 3.0 |
|---|---|
| Pixel Bit Depth |
|
| Synchronization | free-run |
| Exposure Control | programmable via the camera API |
| Power Supply | Via USB 3.0 interface |
| Power Requirements (typical) | 1.3 W |
Housing
| Housing Type | Box |
|---|---|
| Housing Size (Ø x L) | 38.8 mm x 28.2 mm |
| Lens Mount | CS-mount |
| Operating Temperature | 0 °C - 50 °C |
Manufacturer
| Basler |
|---|
Conformity
- CE
- EAC
- FCC Class B
- GenICam
- KC
- RoHS
- UL
- USB3 Vision
Features
For more information about the features, visit the Basler Product Documentation
