Basler dart R daA2448-70um (No-Mount)
- IMX548 Sensor
- 72 fps Frame rate
- 5 MP Resolution
- USB 3.0 Interface
- 1/1.8" Sensor Format

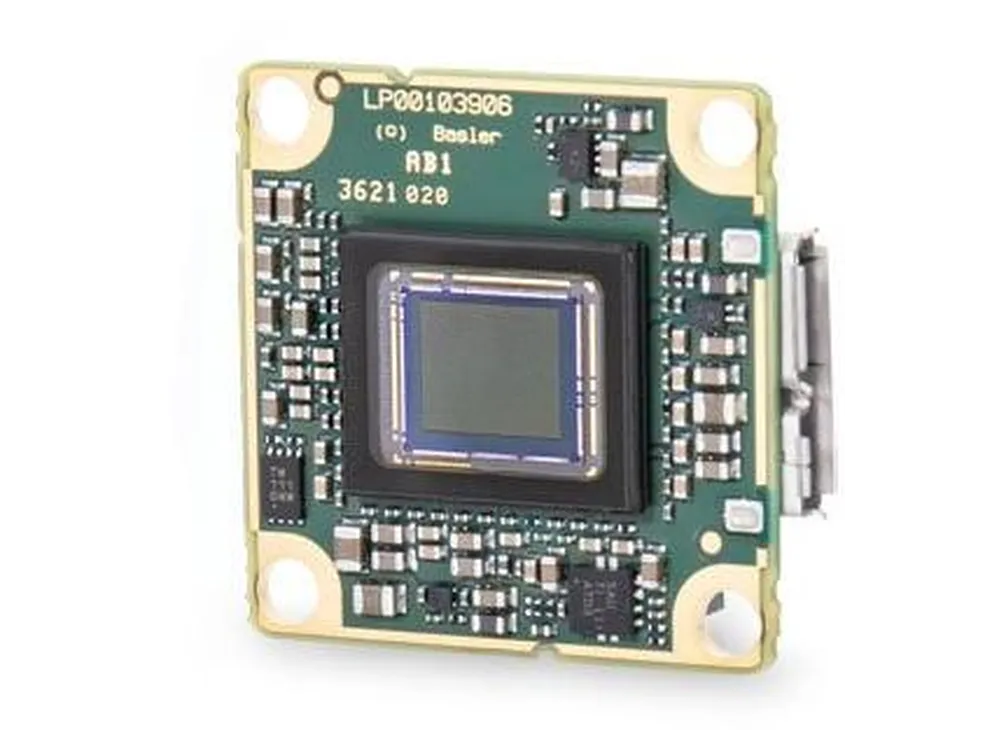

The Basler daA2448-70um (No Mount) USB 3.0 camera with the Sony IMX548 CMOS sensor delivers 72 frames per second at 5 MP resolution. This model has no mount.
General Information
| Order Number | 108619 |
|---|---|
| Product Family | dart R |
| Camera Category | Area Scan Camera |
Sensor
| Sensor Vendor | Sony |
|---|---|
| Sensor | IMX548 |
| Shutter | Global Shutter |
| Sensor Format | 1/1.8" |
| Sensor Diagonal | 8.7 mm |
| Sensor Type | CMOS |
| Sensor Size | 6.71 mm × 5.61 mm |
| Resolution (H x V) | 2448 px × 2048 px |
| Resolution | 5 MP |
| Pixel Size (H x V) | 2.74 μm × 2.74 μm |
| Frame rate | 72 fpsCalculate individual frame rate |
| Mono/Color | Mono |
| Spectrum | Visible |
Camera Data
| Interface | USB 3.0 |
|---|---|
| Image Data Interface | USB 3.0, nominal max. 5 Gbit/s (SuperSpeed) |
| Pixel Bit Depth |
|
| Digital Input | 0 |
| Digital Output | 0 |
| General Purpose I/O | 4 |
Housing
| Housing Type | Board Level |
|---|---|
| Housing Size (L x W x H) | 8 mm x 27 mm x 27 mm |
| Weight | 5 g |
| Lens Mount | No-Mount |
| Operating Temperature | 0 °C - 50 °C |
Technical Drawing
Manufacturer
| Basler |
|---|
Conformity
- CE (incl. RoHS)
- EAC
- GenICam
- KC
- RoHS
- UL
- USB3 Vision
Features & Documentation
For more information about the features, visit the Documentation
