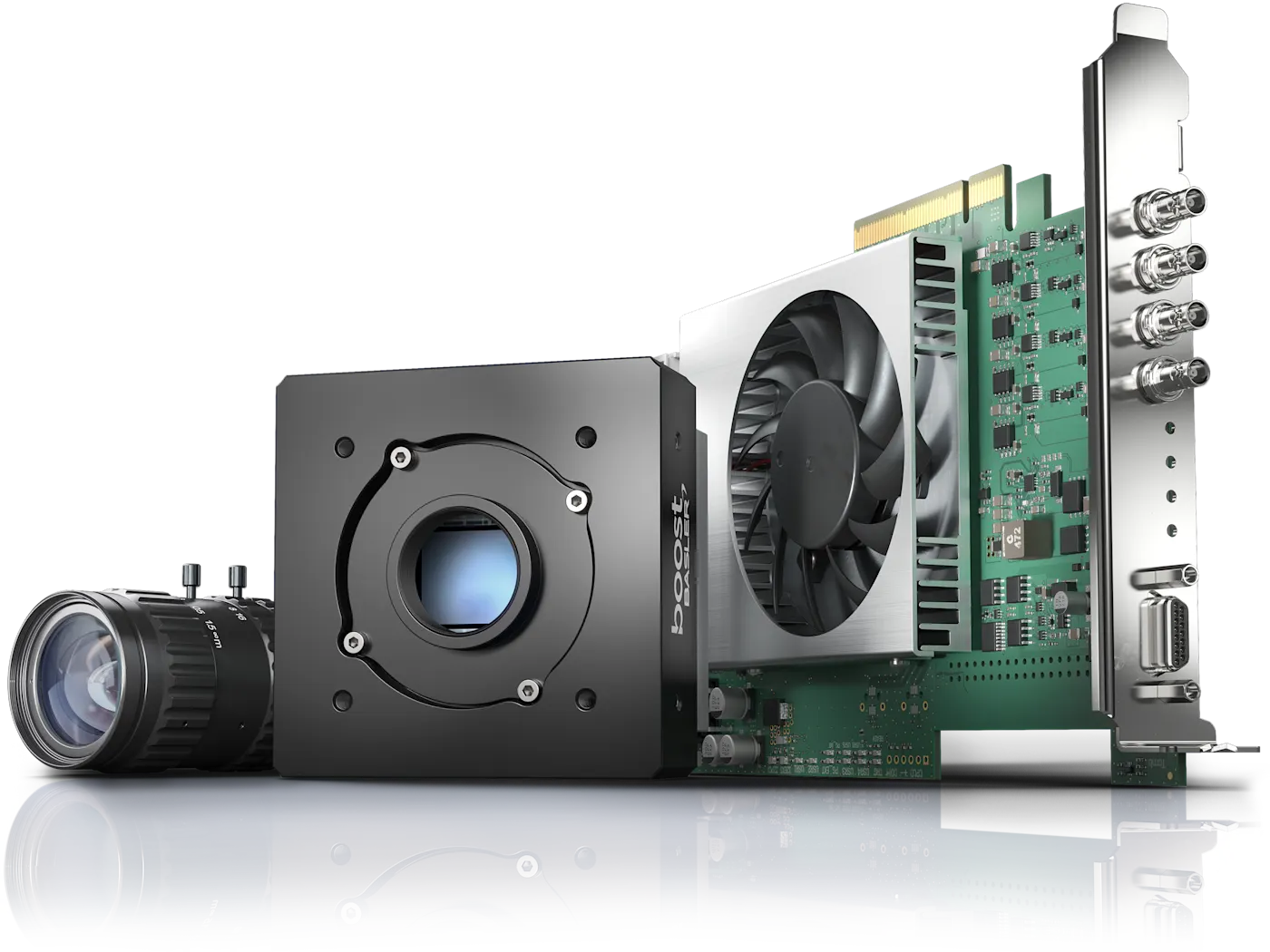

CoaXPress 2.0 (CXP-12) portfolio
Portfolio

CoaXPress 2.0

High bandwidths and resolutions

Get all your CoaXPress 2.0 components from a single source at modest system and implementation costs. Our precisely matched components are ideal for real-time, low-latency applications with very high bandwidths.

To the CoaXPress productsContact us

  • High bandwidths

    12.5 Gbps per channel at maximum cable lengths and the best image quality

  • More power for multi-camera setups

    Scalable: up to four channels with cameras and interface cards

  • Single cable solutions with PoCXP

    Triggering combined with Power over CoaXPress (PoCXP) via a single cable

  • Real-time applications

    Suitable for very low latency applications

  • A SDK for cameras and interface cards

    Easy system setup and fast commissioning with pylon Software

  • Perfect upgrade from older vision systems

    Reduced costs compared to previous Camera Link or CXP 1.1.1 systems

  • Image preprocessing

    Preprocessing on CXP-12 interface cards reduces the CPU load of the host PC

  • Extensive firmware feature set

    Delivers excellent image quality from CXP-12 cameras

Our CoaXPress products

All our CXP-12 products work with the CoaXPress 2.0 vision standard for maximum CoaXPress bandwidth.

  • Basler ace 2 V

    ace 2 V

    Thanks to the CoaXPress 2.0 interface and Sony's Pregius S sensors, the ace 2 V cameras are high-performance cameras in a small 29 mm x 29 mm housing.

  • boost CXP-12 area scan cameras

    Basler boost area scan camera

    The Basler boost camera series combines the latest CMOS sensor technology with high bandwidths and all the other advantages of the CoaXPress 2.0 standard.

  • CXP-12 interface cards

    CXP-12 interface cards

    CXP-12 interface cards with 1, 2, or 4 ports optimally support CXP-12 cameras and can be quickly integrated into your system thanks to pylon Software Suite.

  • Lenses with fixed focal length

    Fixed focal lenses

    Fixed focal lenses are a perfect fit for Basler cameras. We always offer the optimal lens for different vision requirements.

  • Vision cable

    Cable

    The cables are perfectly matched and carefully selected to handle data transmission, control tasks, and power supply.

Applications

Configure your CoaXPress application

Configure your individual, high-performance application based on our extensive CoaXPress 2.0 portfolio in the Vision System Configurator.

Surface inspection

When high accuracy with a large field of view is paramount, choose the high-resolution boost camera combined with an interface card, matching cable, and a high-quality lens.
To the configuration

3D AOI inspection

For quality inspection of electronic circuit boards, you can achieve high speeds by combining a camera and interface card with matching CXP cable and lens.
To the configuration

Semiconductor manufacturing

Semiconductor inspection in the so-called "back-end process" requires the lowest latencies with the best image quality. Combining an ace 2 V camera and a suitable interface card makes it possible.
To the configuration

Microscopy

High data throughput accelerates the system speed. The boost camera achieves excellent image quality through high resolutions. It is best paired with a matching interface card.
To the configuration

Bottle inspection

Data preprocessing and real-time evaluation are provided by the boost camera, interface card, and a Basler Premium lens—reducing the CPU load.
To the configuration

Sports analysis

Movements can be processed with a better dynamic range as uncompressed data, which can be accomplished with the ace 2 V camera and CXP-12 interface card at the best price/performance ratio.
To the configuration

Our CoaXPress products in use

Learn more about our products and applications. Our comprehensive materials provide you with all the important details.

  • ItemPickAI: AI-based bag gripping

    AI-supported gripping of flexible packaging

    With AI-supported 3D gripping, robots optimize package handling – even with different shapes and materials. The Stereo visard camera and the ItemPickAI software module enable precise object recognition and improve gripping strategies.

    • Robotics
    • 3D technology
    • Deep Learning
    • Position Recognition
    • Warehouse automation
    The Basler ace 2 X visSWIR camera, equipped with Basler lighting, lens and software, enables more efficient and reliable product inspection in the agricultural industry.

    SWIR Inspection of Agricultural Yields

    The ace 2 X visSWIR camera system allows for the capture of light beyond the visible spectrum, making it ideal for inspecting agricultural products like apples and potatoes.

    • Tracking & Monitoring
    • Agriculture
    • AOI, error detection, and quality control
    OCR for chip- and IC trays

    OCR for chip and IC trays

    Our OCR solution efficiently reads challenging characters on chip trays or IC trays, overcoming low contrast and variable working distances in fast-paced production environments.

    • Tracking & Monitoring
    Z-folding in the assembly of pouch battery cells

    Quality assurance for stacking pouch battery cells

    Precisely layering the electrode sheets and separator is critical for the quality of the battery cell. Machine vision provides accurate stacking alignment in the µm range.

    • AOI, error detection, and quality control
    • Measuring
    • Electronics industry
    Additive manufacturing

    Modular dart M camera in additive manufacturing

    This board level camera is well suited for inline process monitoring. Its modular design allows it to fit into tight spaces and offers the performance of a GigE camera.

    • Factory automation
    • AOI, error detection, and quality control
    Quality assurance for Electrode coating in Battery cell production

    Quality control in electrode coating

    Coating the substrate foil with slurry is a critical production step in battery cell manufacturing. Our vision technology quickly detects particles and voids in large amounts of image data.

    • AOI, error detection, and quality control
    • Measuring
    • Electronics industry
    • Classification
    E-Check with Basler's ace 2 camera

    E-Check: Automated Inspection of ICE Trains

    Deutsche Bahn relies on imaging for maintenance tasks: ‌with a mobile robot, 32 ace 2 cameras, and AI, the company is prepared for increasing passenger numbers in long-distance transport.

    • Traffic, transportation, infrastructure
    • AOI, error detection, and quality control
    • Classification
