pEL (pylon Event Logger)
A precision event logging solution for highly reliable machine vision system operation
pylon Event Logger (pEL) is an event logging solution that tracks and analyzes all events in a machine vision system to support system optimization and troubleshooting. It records and visualizes all activities of the frame grabber and camera, enabling rapid identification of hidden system issues.
A 360° view of all system events
Tracking every component from frame grabber to cameraPrecise timestamp analysis down to the millisecond

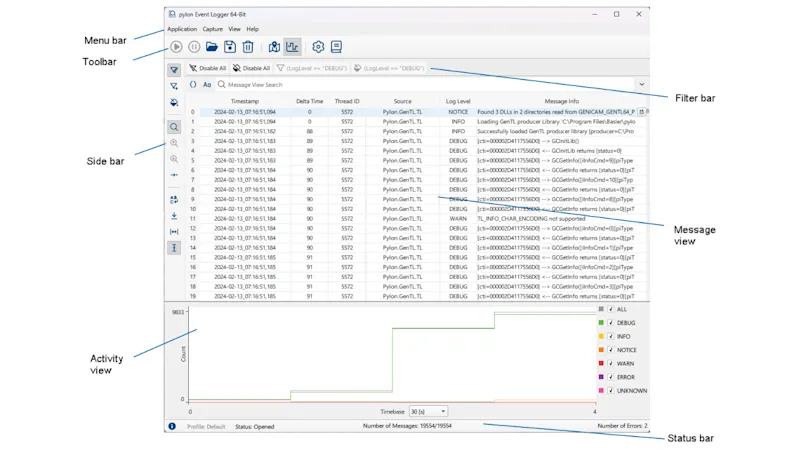

Latency measurement and logical error detectionIntuitive graphical timeline
Visualization of complex event sequencesAdvanced filtering and search
Quick access to relevant information
pEL: An Essential Tool for System Optimization and Troubleshooting
pEL is an integrated tool that launches with pylon development environment or Framegrabber SDK, supporting the entire lifecycle of a machine vision system—from development to maintenance.
Development & Debugging
Detect trigger timing issues
Identify causes of incomplete images
Pinpoint synchronization errors accurately
System Operation
Real-time performance monitoring
Early detection of issues
Understanding system behavior patterns
Performance Optimization
Identify bottlenecks
Improve the image processing pipeline
Enhance overall system responsiveness
Key Features
The pylon Event Logger is an essential tool for configuring and monitoring interactions within machine vision systems. By using precise timestamps to sequentially trace individual processes and measure execution times, pEL enables accurate latency measurement, logical error detection and correction, and resolution of performance issues. It is particularly effective in identifying problems such as overflows, camera disconnections, and missed triggers, providing valuable insights when issues arise.
