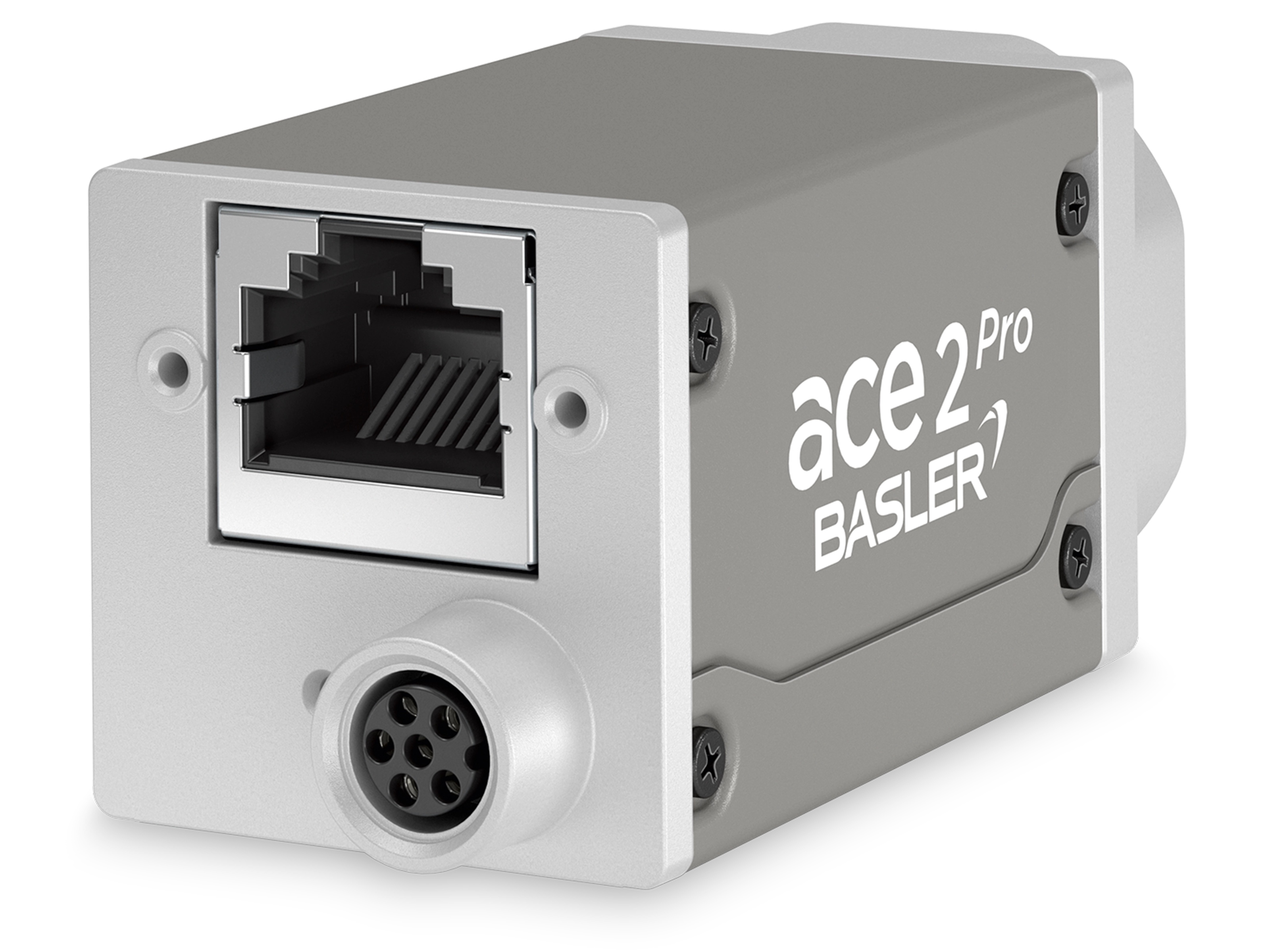

Basler ace 2 a2A3536-9gcPRO

IMX676 Sensor
9 fps Frame rate
GigE Interface
12.5 MP Resolution (MP)
1/1.6 Sensor Format

The Basler a2A3536-9gcPRO GigE camera with the Sony IMX676 CMOS sensor delivers 9 frames per second at 12.5 MP resolution.

Select your model

Select Product Line:

Select Interface:

Select Mono/Color:

Recommended accessories

Lens

Data Cable

Please select

Cable GigE, Cat 6, RJ45 sl hor/RJ45, DrC, P, 5 m +$65.00

Cable GigE Cat 6, S/FTP, 2xRJ-45, 5 m +$9.00

Cable GigE, Cat6a, RJ45 sl hor/RJ45, S, 5 m +$21.00

I/O Cables

Please select

Power-I/O Cable, M8 6p/open, P, 5 m +$37.51

Power Supply

Please select

Power Supply for Camera 18.0W, M8 6-pin +$57.88

PoE Single Port Injector POE29-1AT6 +$59.25

Cooling & Mounting

Please select

Heat sink for ace 2 and racer 2 S +$11.53

Compressed Air Cooler ace 2 / racer 2 S +$76.00

Tripod Mount ace 2 and racer 2 S +$19.00

Quantity

* price shown without U. S. Tariff surcharges

Show suitable products

Suitable Products

Recommended software

pylon vTools for image processing
Design robust image processing software for quality assurance and tracking. Functions such as blob analysis, matching, and code reader can be combined using drag-and-drop design and flexibly integrated into the target application.
pylon Software for image acquisition
pylon offers certified drivers for many camera interfaces, as well as simple programming interfaces and practical tools for camera setup.

All Basler ace 2 Models

Haven't found the right model? See the product list for an overview of all ace 2 models. Find the right product for your application: filter by sensor, resolution, frame rate, and more.

To the ace 2 product table

Net list price	$549.00
Shipping	Standardapprox. 2 weeks

Manufacturer	Basler
Order Number	109495
Product Family	ace 2 R
Product Line	ace 2 R Pro
Camera Series	Basler ace 2
Camera Category	Area Scan Camera
Warranty	36 Months

Sensor Vendor	Sony
Sensor	IMX676
Shutter	Rolling Shutter
Sensor Format	1/1.6
Sensor Diagonal	10 mm
Sensor Type	CMOS
Sensor Size	7.1 mm × 7.1 mm
Resolution (H x V)	3536 px × 3536 px
Resolution	12.5 MP
Pixel Size (H x V)	2 μm × 2 μm
Frame rate	9 fpsCalculate individual frame rate
Mono/Color	Color
Spectrum	Visible + NIR

Interface	GigE
Image Data Interface	Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s)
Pixel Bit Depth	10 bits 12 bits
Exposure Control	hardware trigger programmable via the camera API
Digital Input	1
General Purpose I/O	2
Power Supply	PoE or 12-24 VDC
Power Requirements (typical)	3.4 W

Housing Type	Box
Protection Class	IP30
Housing Size (L x W x H)	55.5 mm x 29 mm x 29 mm
Weight	100 g
Lens Mount	C-mount
Operating Temperature	-10 °C - 50 °C

Basler ace 2 a2A3536-9gcPRO

Select Product Line:

Select Interface:

Select Mono/Color:

General Information

Sensor

Camera Data

Housing

Technical Drawing

Manufacturer

Conformity

Documentation

High sensitivity and low noise for low-light & NIR applications

Quantum efficiency in comparison

High image quality at 850 nm

Sony STARVIS 2 sensor technology

Features & Documentation

Easy Handling

Image Quality Optimization

Process Control

Speed Increase

Suitable Products

Recommended software

pylon vTools for image processing

pylon Software for image acquisition

All Basler ace 2 Models

	IMX676	IMX226	CMV4000NIR
Technology	Sony STARVIS 2	Sony STARVIS	NIR-optimized
QE @ 540 nm	92 %	80 %	62 %
QE @ 850 nm	~ 45 %	~ 19 %	~ 35 %
QE @ 950 nm	~ 20 %	~ 9 %	~ 11 %

Auto Functions	Use the camera's auto functions to allow the camera to find the optimum settings for exposure time, gain, and white balance, for example. This simplifies camera integration into your application.
Presettings	Automate recurring steps in your application by using the camera's default settings and/or creating and saving your own presets.

Color Creation	With this set of features, you can correct artifacts in color images without affecting the structures in the image.
Image Adjustment	Adjust pixel values losslessly with Black Level, Digital Shift, and other standard features.
Improvement of Image Quality	Reduce image artifacts caused by environmental influences. Correct individual pixel errors using Defect Pixel Correction.
PGI - Patented	Use the complete image enhancement package or choose from Denoising, Sharpness, Debayering, and Color-Anti-Aliasing to adjust the image quality.

Burst Mode	Acquire a sequence of images after triggering once and output them as required. In High-Speed Burst Mode, you can temporarily bypass the data limitation of GigE.
Digital I/Os	Control the camera via trigger commands or use the camera to control components of your vision system, such as lighting or encoders.
Information Utilisation	Use additional information from Chunks and Events to optimize your automation.
Intelligent Light Control (SLP)	Control the lighting directly with the camera. By synchronizing the flash mode and adjusting the brightness levels, you can quickly achieve precise lighting conditions and shorten the development time of your application.
Sequencer	Program sequential processes in the camera to control image acquisition and pre-processing in real time.
Timing	Control the start and end of an exposure individually. Add delays or synchronize multiple cameras in a GigE network using PTP.

Compression Beyond - Patented	Reduce the amount of image data transferred using our patented image compression algorithm and choose between 'lossless' and 'lossy'.
Data Reduction	Use the Binning, Decimation, or ROI features for customized data reduction.
Pixel Beyond - Patented	Use our patented Binning process to continuously adjust the sensor pixel to meet your needs. Reduce the amount of data or simulate the characteristics of another sensor.
