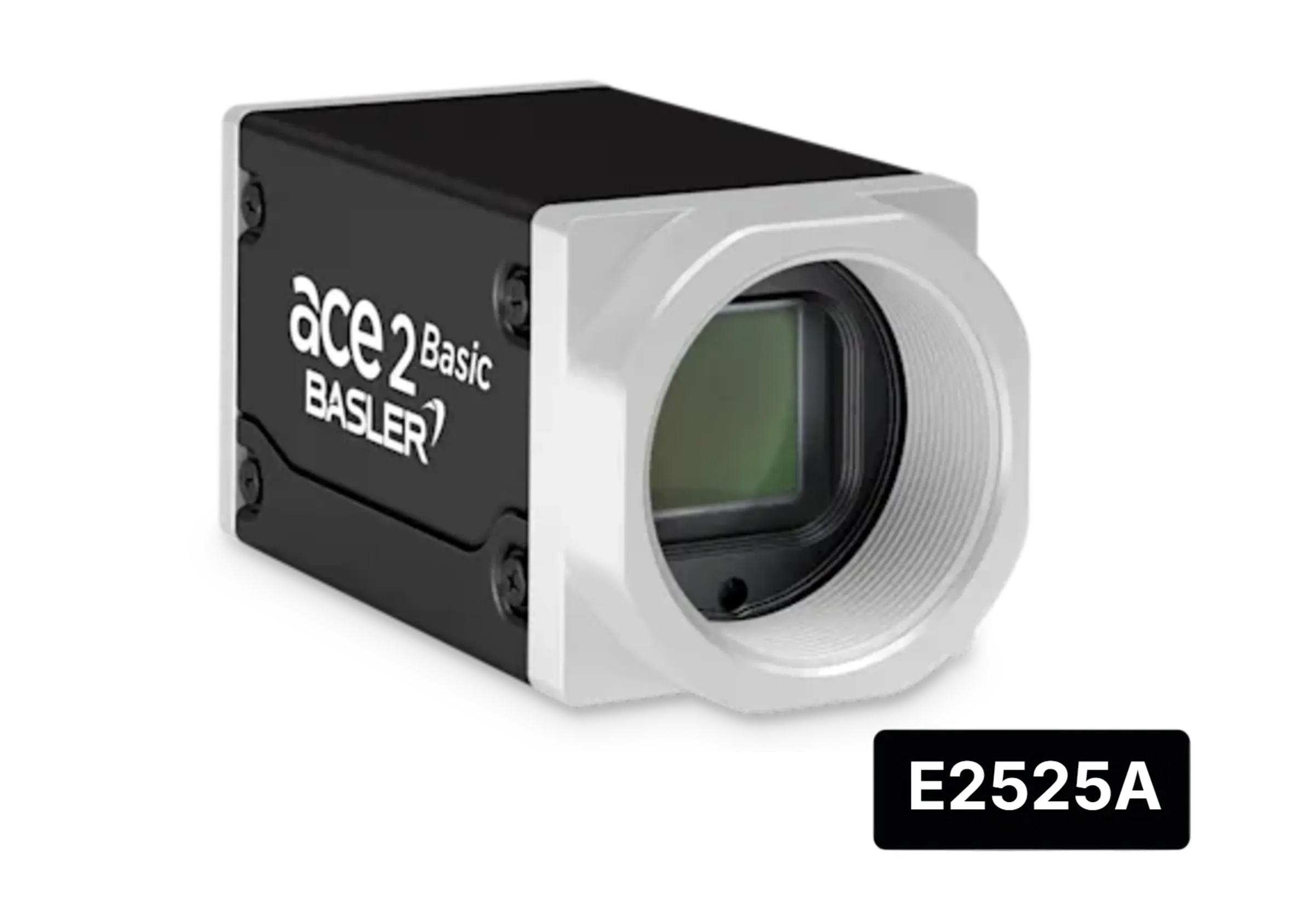

New ace 2 camera with E2525A sensor
25 MP resolution with best-in-class Quantum Efficiency
Basler's ace 2 cameras with E2525A sensor features a cutting-edge sensor technology, delivering ultra-high 25MP resolution, outstanding low-light performance, and a square 1.1" sensor format. Housed in a compact 29 x 29mm form factor, this high-performance imaging solution is optimized for demanding precision inspection applications.
Superior Low-Light Performance
Delivers high-quality images even in low-light environments thanks to its high quantum efficiency and excellent SNR.Compact Housing
A perfect match of a 2.5 µm pixel size and a 1.1" sensor format, all in a 29 x 29mm housing, making it ideal for space-constrained environments.Flexible System Integration
Available in a variety of interfaces such as GigE, 5GigE, CoaXPress, and USB 3.0—for outstanding system compatibility.Reliable Image Quality
Improved performance in key EMVA parameters such as SNR, DR, DSNU, and PRNU ensures highly accurate measurement results compared to previous sensors.
Enhance inspection accuracy while reducing operational costs
Experience exceptional image quality with industry-leading quantum efficiency sensors that capture fine details even in low-light environments. The new 25MP Basler ace 2 models featuring the E2525A sensor delivers premium imaging performance at a highly competitive price point.
With enhanced signal-to-noise ratio (SNR), expanded dynamic range, and outstanding quantum efficiency across the entire wavelength spectrum, it ensures precise and reliable inspection results under any lighting condition.
Get superior image quality at a more competitive price. Discover the difference today!
Download E2525A sensor flyer nowImage quality and EMVA data
Thanks to its compact 29 x 29 mm housing with C-mount, the Basler ace 2 with E2525A sensor allows the use of smaller, more cost-effective C-mount lenses — a significant benefit for those that are looking to reduce the costs of their high-resolution imaging system.
The image comparison demonstrates that our camera, featuring a 25 MP resolution and square 1.1" sensor format, performs just as well as a comparable camera with a well-established 25 MP sensor. The field of view and image quality, even in detailed views, are comparable.
Due to the significantly higher QE (quantum efficiency) of the E2525A sensor, the exposure time can be reduced compared to the reference sensor. This is especially important for low-light applications. For example, the E2525A sensor reaches an SNR1 (Signal-to-Noise Ratio = 1) at an illuminance of 1 lux with just a quarter of the exposure time.
Comparison sensor | E2525A Sensor | Improvement | |
|---|---|---|---|
Quantum efficiency | 51 % | 66 % | 30 % |
Dark noise | 3.7 e- | 2.5 e- | 32 % |
Dynamic range | 957 = 60 dB | 2589 = 68 dB | 170 % |
Signal-to-noise ratio | 65 = 36.30 dB | 90 = 39.07 dB | 38 % |
Dark signal non-uniformity (DSNU) / Photon response non-uniformity (PRNU) | 22 e- / 2 % | 0.3 e- / 0.7 % | 95 % / 65 % |
The EMVA data and the QE curve underline the outstanding performance of the E2525A sensor. All values show a significant improvement compared to the established comparison sensor.
Our camera excels with its high resolution, square sensor format, and compact design, all at a competitive price.
Recommended Applications
ace 2 camera models
Find the right camera for your application or use our Vision System Configurator to configure your system.
