Allgemeine Information |
|||
---|---|---|---|
Artikelnummer | 2200000350 | ||
Netto-Listenpreis Für größere Mengen und individuelle Preise verwenden Sie bitte den Angebotswarenkorb. Netto-Listenpreis | Nutzen Sie den Angebotswarenkorb, um ein Preisangebot für dieses Produkt zu erhalten. | ||
Lieferzeit Die aktuelle Lieferzeit kann davon abweichen. Bei Bedarf erfragen Sie bitte die aktuelle Verfügbarkeit und nutzen Sie den Angebotswarenkorb. Lieferzeit |
Die aktuelle Lieferzeit kann davon abweichen. Bei Bedarf erfragen Sie bitte die aktuelle Verfügbarkeit und nutzen Sie den Angebotswarenkorb.
|
||
Bestimmungsland | |||
Abkündigung: | No LTB possible | ||
Kartentyp | Framegrabber | ||
Hersteller | Basler | ||
Modellname | microEnable 5 ironman AQ8-CXP6D | ||
Produktserie | ironman Frame Grabber | ||
Produktlinie | Acquisition |
Geräteeigenschaften |
||
---|---|---|
Speicherausbau | 1 GByte DDR3-RAM | |
E/A-Schnittstellen (Trigger und Synchronisation) | Trigger/GPIO-IF (Opto Trigger, TTL Trigger) | |
Power via Interface (pro Port) | PoCXP (13W/24V per cable, Safe Power) |
Kamera-Schnittstelle |
||
---|---|---|
Standard | CoaXPress 1.0/1.1 | |
Schnittstelle |
|
|
Konfigurationen | CXP1-6; up to 4 cameras | |
Steckerverbindung | 4 x DIN 1.0/2.3 | |
Spannungsversorgung | SafePower, Power over CXP, 13W/24V per cable | |
Kameratypen | area scan camera, line scan camera | |
Sensortypen | CFA sensor (Bayer), RGB sensor, Grayscale sensor | |
Bittiefe | 8-16-bit (grayscale), 24-48-bit (color) | |
Datenbandbreite | 4 x 6,25 Gbit/s | |
Bandbreite (pro Port; gesamt) | 6,25 Gbps; 25 Gbps | |
Anzahl Ports | 4 | |
Testumgebung | Camera Simulator |
Host PC Schnittstelle |
||
---|---|---|
PC Bus Schnittstelle | PCIe 2.1 x8, DMA3600 | |
PC Bus Übertragungsleistung | up to 3.600 MB/s (sustainable) |
Controls and General-Purpose I/Os |
||
---|---|---|

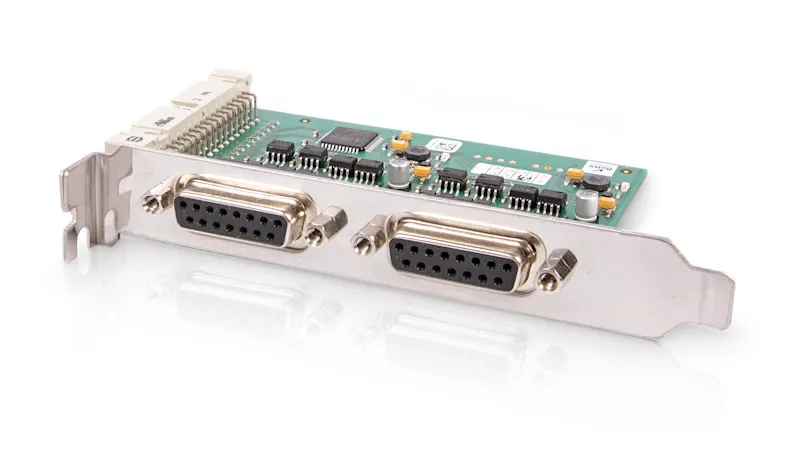

Trigger E/A Schnittstellen | Box connector (34-pin) | |
Onboard E/A Schnittstellen | One 34-pin flat cable connector onboard: 8 input signals and 8 output signals with open-drain optionally as 4 opto-coupled inputs (4,5V - 28V), optional 2 opto-coupled differential inputs (RS422); 4 opto-coupled outputs (4,5V - 28V) | |
E/A Synchronisation und Steuerung | Configurable Trigger System supporting several trigger modes (grabber controlled, external trigger, gated, software trigger) and shaft encoder functionality with backward compensation, Multi-Camera-Synchronization | |
Zusammenfassung Signalschnittstellen | 8in/8out (max.), TTL or opto-coupled |
Verarbeitungsfunktionen |
||
---|---|---|
Basis-Funktionen | Image Selector, LUT, Invert, ROI, Offset/Gain/Gamma correction, Mirroring |
Geräte- und Umgebungsinformationen |
||
---|---|---|
Dimensions | PCIe Standard height, half length card: 167.64 mm length x 111.15 mm height | |
Power consumption / Power Source | 12 V, 2.5 A | |
Betriebstemperatur | 0 - 50°C (32°F - 122°F) | |
Lagerungstemperatur | -50 - 80°C (-58°F - 176°F) | |
MTBF | on request | |
Konformität | WEEE, RoHS, REACH, CE class B |
Software |
||
---|---|---|
Software-Treiber | Windows 10 / 8 / 7 (64-Bit), Windows 10 / 8 / 7 (32-Bit), Linux 32-Bit, Linux 64-Bit | |
Software-Werkzeuge | microDisplay (Acquisition control and viewer), GenICam Explorer (Camera configuration tool), microDiagnostics (Analysis and service tool), Device Drivers, SDK, Documentation | |
Software API | Framegrabber SDK, .net interface | |
FPGA Programmierung | not programmable | |
Kompatibilität BV-Software | Halcon, VisionPro, Labview |
