Fluorescence microscopy is a very broadly used term covering numerous applications. This ranges from basic applications in the life sciences to highly developed techniques in which only very few photons or individual molecules are detected and localized by specific high-end hardware and software.
Capteurs CMOS dans les applications basées sur la fluorescence
When you choose a camera for fluorescence microscopy, it is important to find a balance between certain sensor properties, camera-related aspects and the needs of the intended applications in science, medicine or industry.
Optical Format and Resolution
When you look at the visible wavelength range, the considerations regarding the optical setup do not differ significantly from normal light microscopy applications in terms of format, magnification and resolution. However, it is important to know that the overall cost increases when larger optical formats such as F-mounts are used. Most common is a C-mount, which offers a very good optical performance and for which most products and solutions are available at a reasonable price. The smaller S-mount is a good choice when instruments with limited sizes and lower costs are developed. Square sensors are often preferable for capturing the maximum image content.
Since the sensor plays a key role in an imaging system, it is very important to consider particular performance specifications when making a selection.
CCD, CMOS, sCMOS et BSI
Pendant longtemps, les capteurs CCD ont été la technologie établie sur le marché des microscopes à fluorescence. Cette situation a changé au cours des dernières années, même s'ils sont toujours disponibles dans les caméras de microscopie de haute qualité. La technologie CMOS, plus récente, s'est imposée ces dernières années et est devenue compétitive face aux défis particuliers du domaine scientifique. Les niveaux de bruit sont désormais comparables, voire supérieurs, à ceux des capteurs CCD traditionnels. Dans le même temps, la nouvelle technologie permet d'atteindre des vitesses plus élevées, des résolutions plus importantes et une consommation d'énergie/dissipation de chaleur plus faible, le tout à des prix inférieurs.
Les capteurs CMOS continuent de se développer rapidement. Une technologie appelée Backside Illumination (BSI) a trouvé sa place dans les capteurs d'images industriels. Cette technologie crée une inversion de la structure du pixel pour présenter la photodiode sensible à la lumière directement sous les micro-lentilles, ce qui augmente considérablement l'efficacité quantique des pixels.
Monochrome or Color
Monochrome cameras are generally preferred for fluorescence applications due to their higher quantum efficiency. The technical factor driving this difference is that in color cameras, Bayer microfilters on each pixel let only certain wavelengths pass through. This filtering is needed to calculate color information of the image using a process called debayering. As the color filters block a certain amount of light, fewer photons reach the photon-reactive area of the pixel. In addition to the Bayer pattern on the sensors, the IR-cut filter in color cameras presents a limiting factor because it blocks light of approximately 650 to 700 nm upward (Figure 2).

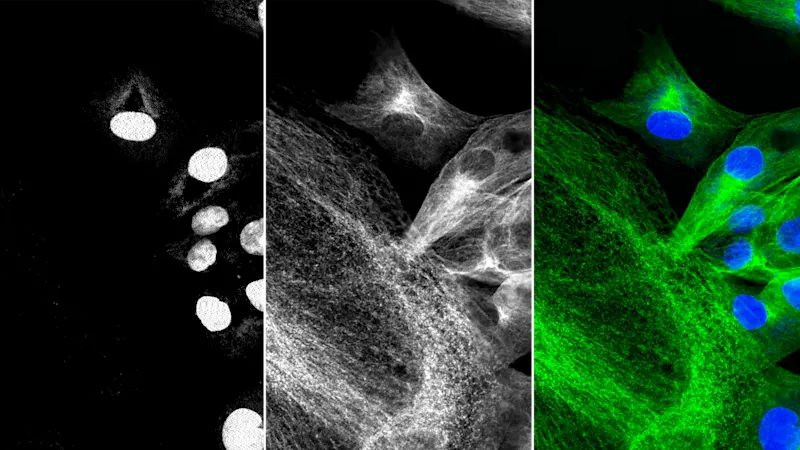

Typically, images with multiple fluorescence markers for specific detection and co-localization of molecules of interest are made from separate images using monochrome cameras. Selectable light sources and filter sets provide the right combination of excitation and emission wavelengths for each fluorophore used (Figure 3).
However, certain applications may create a demand to do color imaging and fluorescence within one instrument using only one camera. This is possible if the sensitivity demands of the fluorescence application are not too high.
Global and Rolling Shutter
CCD sensors have only one shutter type (global) while CMOS sensors are available in two types: rolling and global. Choosing the right sensor has a significant impact on image quality, especially when target objects are moving. In rolling shutter sensors, the pixels are exposed line after line. As a result, an object that has changed its position between signal capturing of two lines produces deviating image situations, generating space distortion in the image. A technical advantage of rolling shutter sensors is that they have fewer electronic parts in the pixel, which can result in less noise during readout. Meanwhile, global shutter sensors expose all pixels of the sensor at the same time. In this case, there is no time shift between the exposures of the different pixel lines, thereby generating no space distortions when objects are moving.
Sensitivity and Dynamic Range
Before taking a closer look at the quality of an image, it is important to ensure that the system is sensitive enough to capture the fluorescence signals, which can be very weak, depending on the individual application. Sensitivity should be understood as the minimum amount of light that is required to generate a signal that can be distinguished from noise. An important value is the quantum efficiency (QE) describing the ratio between the incident photons of the light source and the generated electrons of the pixel. It depends on the wavelength, and to get the best result, the spectrum of a given sensor should fit with the emission spectra of the fluorophores in the application. The higher the QE, the better the yield of photons, enabling shorter exposure times, reducing photo bleaching of fluorophores, and potentially improving overall imaging speed.
Often it is also beneficial to have a wide range of light intensities that can be resolved with one exposure. Here the full well capacity is relevant. It describes the maximum number of electrons that can be generated by one pixel per exposure. The higher the full well capacity, the more light can be captured before a pixel is saturated, reducing the requirement of additional exposures due to saturation.
Combining the maximum number of electrons with the lowest number of electrons required to produce a true signal (see “read noise” in the next section), the dynamic range characterizes a camera’s overall ability to measure and distinguish different levels of light.
Finally, there is the absolute sensitivity threshold, which is the number of photons required by one pixel to generate a signal-to-noise ratio (SNR) of 1
— meaning the signal is equivalent to the noise. The smaller this value, the less light is required to produce a true signal. Because it does not take into account the pixel size, it cannot be directly used to compare two cameras when their pixel sizes are different.
Image Quality and Noise

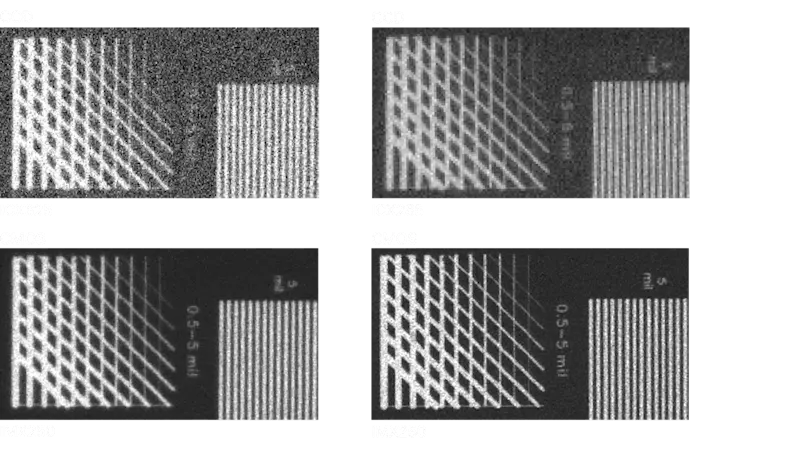

Noise is the deviation between the true signal value and the value that is produced by a measuring system. The SNR quantifies the overall noise of an imaging system at a certain light level and is a common parameter used to compare cameras. The higher the SNR, the better the image quality. In the imaging process, there are types of noise that can only rarely — if at all — be reduced by the camera technology (e.g., photon/shot noise, which is caused by the photons’ physical appearance). However, other noise types that influence image quality are significantly affected by the sensor itself and the camera technology. In recent years, the former CCD technology was surpassed in the areas of image quality and performance by modern CMOS sensors. Read noise — or temporal dark noise — is the noise added to a signal per one shutter event and is given in e¯/pixel. Modern CMOS sensors go down to a read noise of only 2 e¯/pixel (Figure 4).

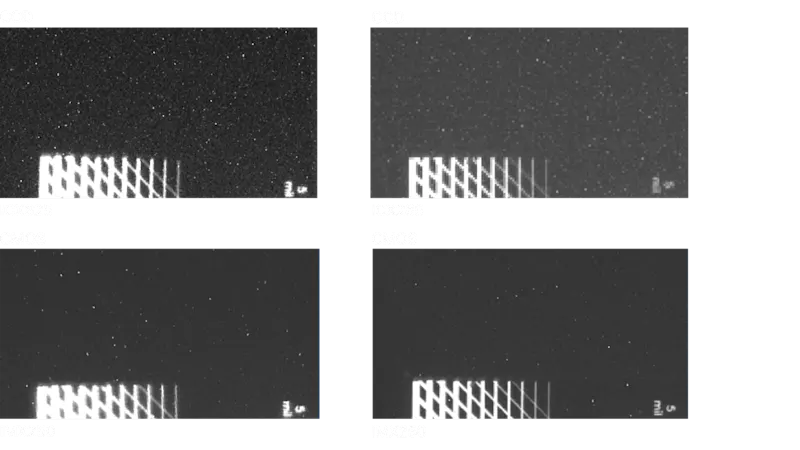

Another noise source that is relevant for fluorescence applications becomes important when exposure times increase; it is caused by dark current. Dark current is the leakage of electrons during exposure and is expressed in e¯/pixel/s (Figure 5). As a rule of thumb, the dark current doubles with each temperature increase of 7 °C.
Noise types that describe not a temporal- but a space-related behavior are called fixed-pattern noise; this describes deviations that can be seen between different pixels. It can be caused by the pixel electronics or by inconsistent temperatures over the sensor area.
Standardized quantification measures of these noise types are the DSNU (dark signal nonuniformity), which describes the deviation of generated electrons without any light signal, and the PRNU (photoresponse nonuniformity), describing the pixel-to-pixel deviation at a certain light level. By setting cutoff values on pixel-to-pixel deviations, one can further differentiate and describe outlying pixels as defect pixels, such as hot pixels, that show high gray values without a corresponding signal. Certain camera manufacturers already correct defect pixels during quality control by interpolation of neighboring pixels so integrators are not impaired by these artifacts.
Interfaces
Il existe plusieurs interfaces sur le marché. Pour décider quelle interface est nécessaire, les points suivants doivent être pris en compte en fonction de l'application : débit de données/d'images, longueur du câble, normalisation, effort d'intégration et coûts. Les technologies d'interface USB 3.2 Gen 1 (anciennement USB 3.0), GigE Vision, et 5GigE Vision représentent l'état actuel de la technique pour l'intégration dans les systèmes basés sur la microscopie à fluorescence. Les normes Vision sont disponibles pour toutes les interfaces mentionnées et fournissent des spécifications développées par les principaux fabricants de caméras afin d'améliorer la conception, l'effort et la performance des systèmes de vision pour les intégrateurs de caméras.
L'USB 3.2 Gen 1 est l'interface plug-and-play conventionnelle et établie avec l'intégration la plus simple. Elle permet des débits de données d'environ 380 MB/s, ce qui signifie par exemple 75 images par seconde à 5 MP, ce qui est suffisant pour la plupart des applications. Les longueurs de câble allant jusqu'à plusieurs mètres, y compris l'alimentation, sont prises en charge, tout comme l'intégration de plusieurs caméras. L'USB 3.2 Gen 2 offre une largeur de bande environ deux fois supérieure à celle de Gen 1, mais les longueurs de câble sont légèrement plus courtes. Il est de plus en plus utilisé dans la pratique.
GigE est utilisé lorsque des câbles plus longs et une synchronisation plus précise de plusieurs caméras sont nécessaires. La bande passante du GigE classique est d'environ 100 MB/s. Avec 5GigE, une version environ cinq fois plus rapide est désormais disponible, comme celle déjà intégrée dans la série ace 2, par exemple. Le 10GigE double encore cette largeur de bande et permet d'atteindre une vitesse de transmission dix fois supérieure à celle du GigE classique. Ces variantes avec des largeurs de bande plus élevées nécessitent du matériel hôte et des périphériques compatibles, mais elles sont de plus en plus populaires sur le marché.
Cooling
The temperature of the sensor has a central influence on the dark current, which worsens the SNR and image quality – especially when the light signals are weak and longer exposure times are needed. This means that cooling the cameras can be important, but it is not absolutely necessary in fluorescence imaging. Since cooling measures significantly impact the system costs, the majority of cameras aren’t actively cooled, which is already sufficient for applications with good fluorescence signals. But even in these cameras, the design influences the sensor temperature. Heat generation should be avoided by operating the camera with low power consumption. Additionally, the heat should be efficiently transported to the outside via the internal hardware design and by mounting the camera on another heat-dissipating carrier.
Thermoelectric (Peltier) elements are used to actively cool a sensor and usually an integrated fan dissipates the heat generated by the Peltier element to the outside. The fan also helps prevent condensation moisture when temperatures fall below the ambient temperature. If it is necessary to prevent vibrations (which can be caused by the fan) in the system, some cameras can even be water-cooled.
Improvements Through Firmware
Beyond the hardware and sensor specifications, the cameras can offer firmware features that improve the image quality in low light conditions.
One example is the defect pixel correction. To this end, the manufacturer operates the camera at different exposure times during the final inspection and defective pixels are located and stored in the camera’s cache. In operating mode, the values of the defective pixels are interpolated by the weighted sum of the neighboring pixels. This helps improve the image quality and SNR.
The current CMOS sensor generations enable applications that were not previously possible without investing several thousand euros in a CCD camera. The importance of these new possibilities continues to rise, since fluorescence is becoming an increasingly used tool in the life sciences to visualize structures and processes.
Fluorescence in the Field
Fluorescence is a physical phenomenon and not just a specific technology. The possible methods – e.g. for analytics, quantitative determinations or visualizations used in the life sciences – are almost infinite. Fluorophores can be coupled to various carriers such as proteins (often antibodies), nucleic acids or microparticles. But they can also be integrated as gene technology markers in organisms in order to examine cell-biological functions and processes. Aside from the life sciences, fluorescence-based methods are also used in other areas, such as material analysis or forensics. The following examples show the versatile application options for fluorescence.
In the in-vitro diagnosis of autoimmune or infectious diseases, the technology of indirect immunofluorescence microscopy can be used to detect specific antibodies in the patient’s blood.

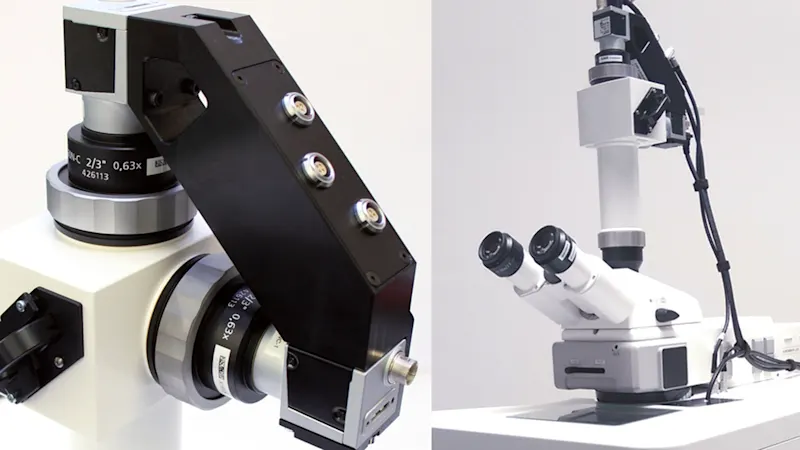

In addition to manual microscopy, there are already automated systems that give lab physicians suggested findings based on fluorescence patterns of the cells incubated with patient serums, as evaluated by software (Figure 6). Another system, in turn, analyzes patient serums on malaria pathogens in less than 3 minutes. The analysis is performed with vision-based algorithms that also take fluorescence signals into consideration.
Point-of-care systems are increasingly gaining significance in medical diagnostics. Among other things, they make it possible to establish better medical care even in economically and infrastructurally weak regions, thanks to simple and inexpensive applications. Lab-on-a-chip technologies enable the processing of patient samples on a small chip, without requiring complex lab equipment.
In surgical microscopy, surgeons are increasingly supported by specific fluorescent markings of blood vessels or tumor tissue, enabling them to operate with perfect precision with fluorescence-guided surgery. Dentists can also offer faster and more specific treatment, for example by selectively visualizing tooth areas affected by caries during treatment. Last but not least, fluorescence-microscope applications are used in pathology to examine tissues from patient biopsies for possible diseases.
The life sciences offer a broad range of fluorescence-based applications in which microscopic examinations have a significant share. Immunofluorescence microscopy enables specific detection of particular proteins — for example, to detect or clarify their localization in cells and tissues or as markers for beginning cell death, depending on particular test conditions (Figure 7). Nowadays, live cell imaging can also be performed for longer time periods on automatic systems.
Miniaturization and parallelization to increase analysis numbers are especially significant in pharmaceutical research, since a very high number of samples are screened analytically in the search for new active substances. This is where microarrays and high-content screening systems are used (Figure 8).
With automatic colony counters, fluorescence markers can be used in petri dishes to select successfully transfected cells to subsequently pick a sample of the respective colony. This means it is verified whether particular genetic material was actually transferred to the cell as part of an experiment, and the researchers can continue using this for their research.
